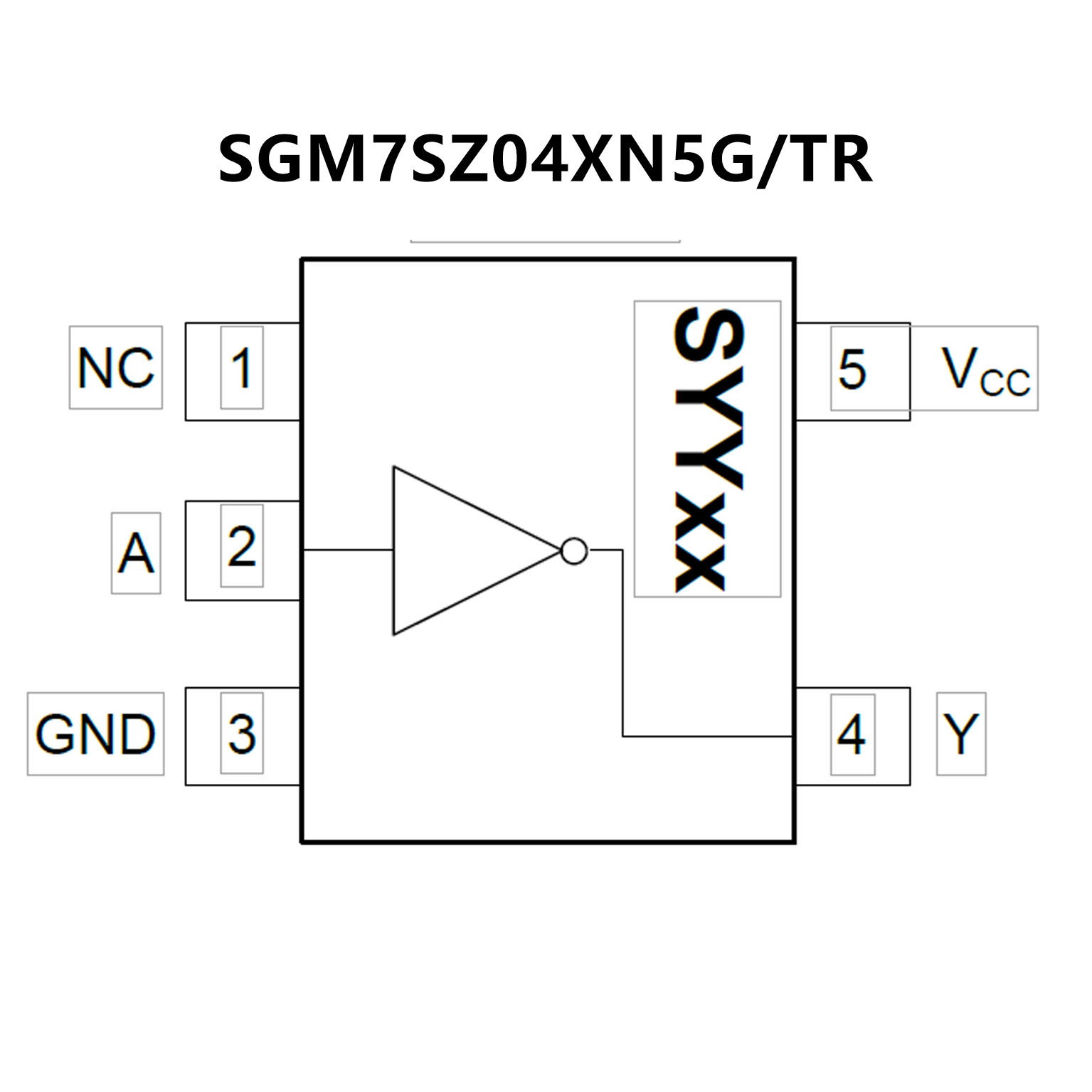

SGM7SZ04XN5GTR.pdf? Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Input/Output
? Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
? Available in Green UTDFN-1.45×1-6L, SC70-5
and SOT-23-5 Packages
? Supply Voltage Range from 4.5V to 5.5V
? ± 8 mA Output Drive at 5.0V
? CMOS low power consumption
? Schmitt Trigger Action at All Inputs Make the Circuit
Tolerant for Slower Input Rise and Fall Time.
? ESD Protection per JESD 22
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
? Latch-Up Exceeds 100mA per JESD 78, Class II
? SOT25 and SOT353: Assembled with “Green” Molding
Compound (no Br, Sb)
? Lead Free Finish / RoHS Compliant (Note 1)
