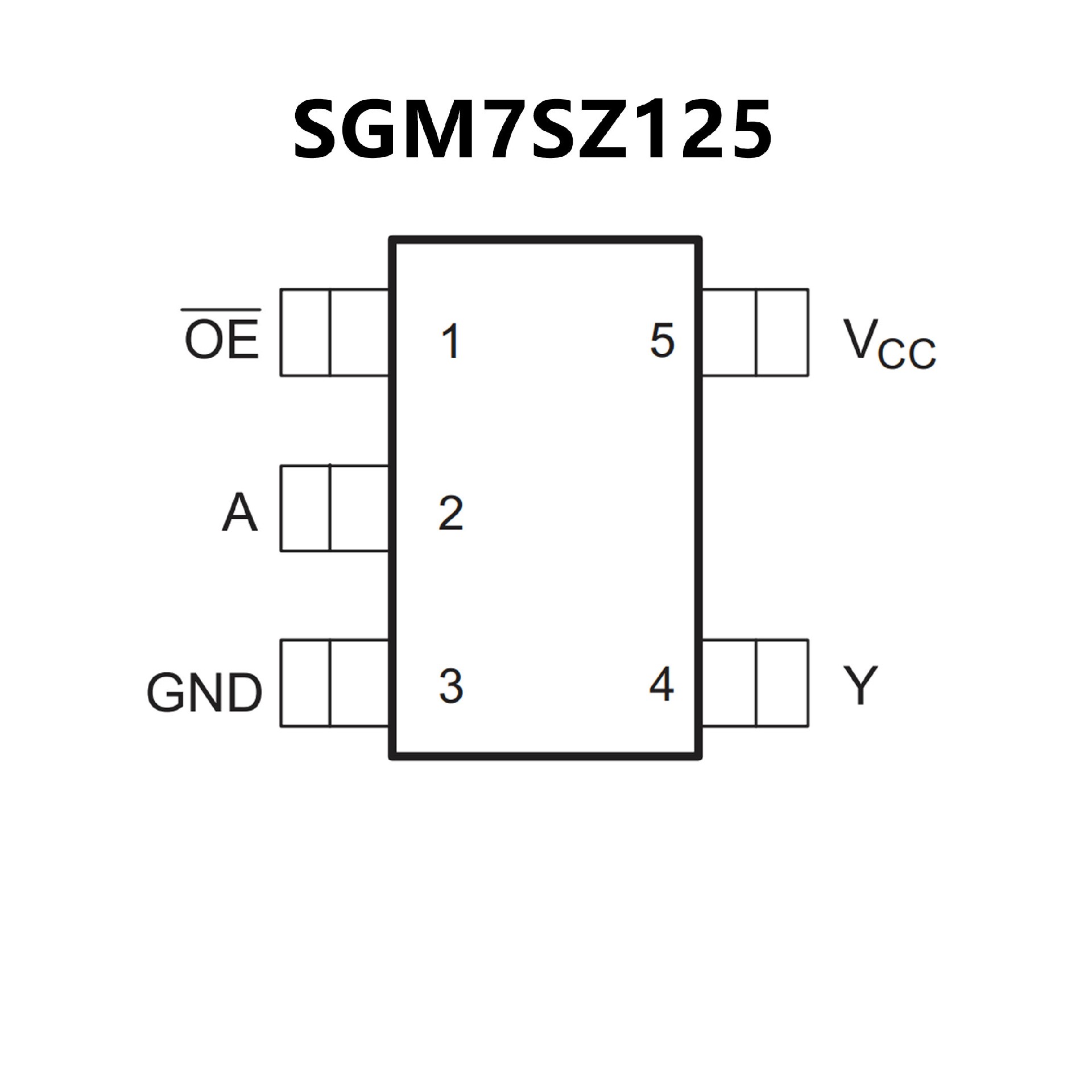

SGM7SZ125YC5G.pdf? Ultra-High Speed: tPD = 3.5ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages

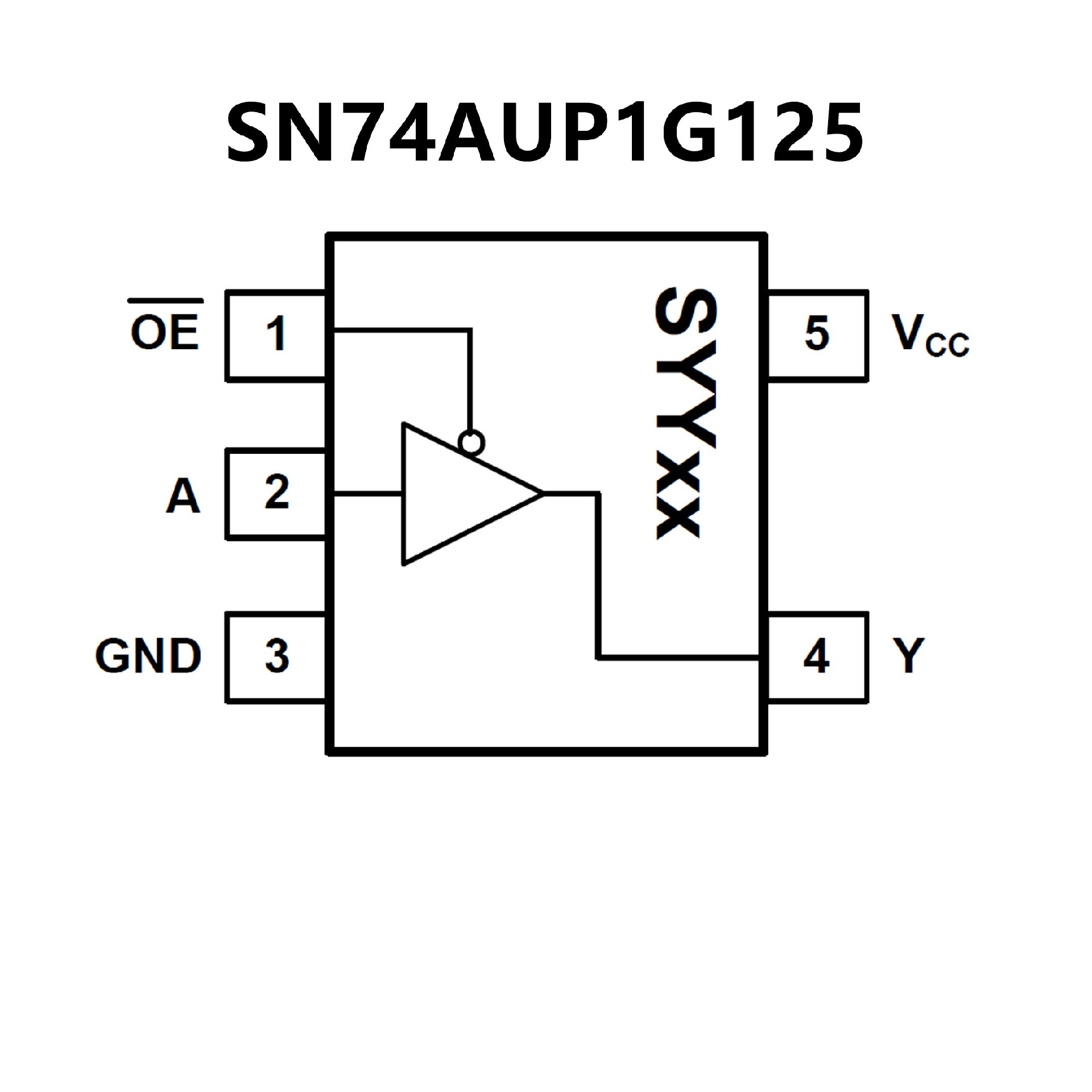

? Available in the Texas Instruments NanoStar?
Package
? Low Static-Power Consumption
(ICC = 0.9 μA Maximum)
? Low Dynamic-Power Consumption
(Cpd = 4 pF Typical at 3.3 V)
? Low Input Capacitance (CI = 1.5 pF Typical)
? Low Noise – Overshoot and Undershoot
< 10% of VCC
? Input-Disable Feature Allows Floating Input
Conditions
? Ioff Supports Partial-Power-Down Mode Operation
? Input Hysteresis Allows Slow Input Transition and
Better Switching Noise Immunity at Input
? Wide Operating VCC Range of 0.8 V to 3.6 V
? 3.6-V I/O Tolerant to Support Mixed-Mode Signal
Operation
? tpd = 4.6 ns Maximum at 3.3 V
