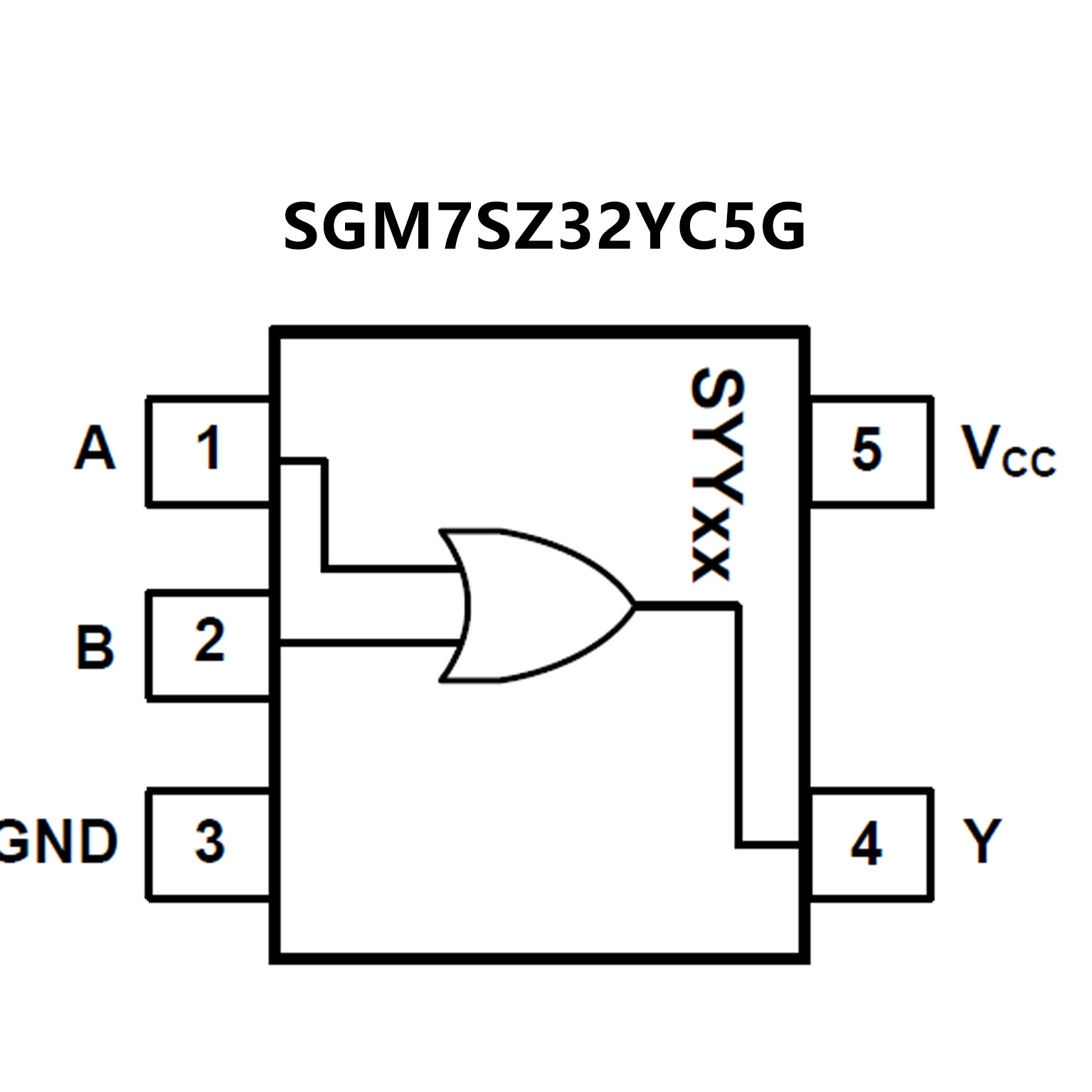

SGM7SZ32.pdf? Ultra-High Speed: tPD = 3.8ns (TYP) into 50pF at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
? Available in Green SOT-23-5 and SC70-5 Packages
? Wide Supply Voltage Range from 1.65 to 5.5V
? ± 24mA Output Drive at 3.3V
? CMOS Low Power Consumption
? IOFF Supports Partial-Power-Down Mode Operation
? Inputs Accept Up to 5.5V
? ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
? Latch-Up Exceeds 100mA per JESD 78, Class
? Range of Package Options
? Direct Interface with TTL Levels
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
