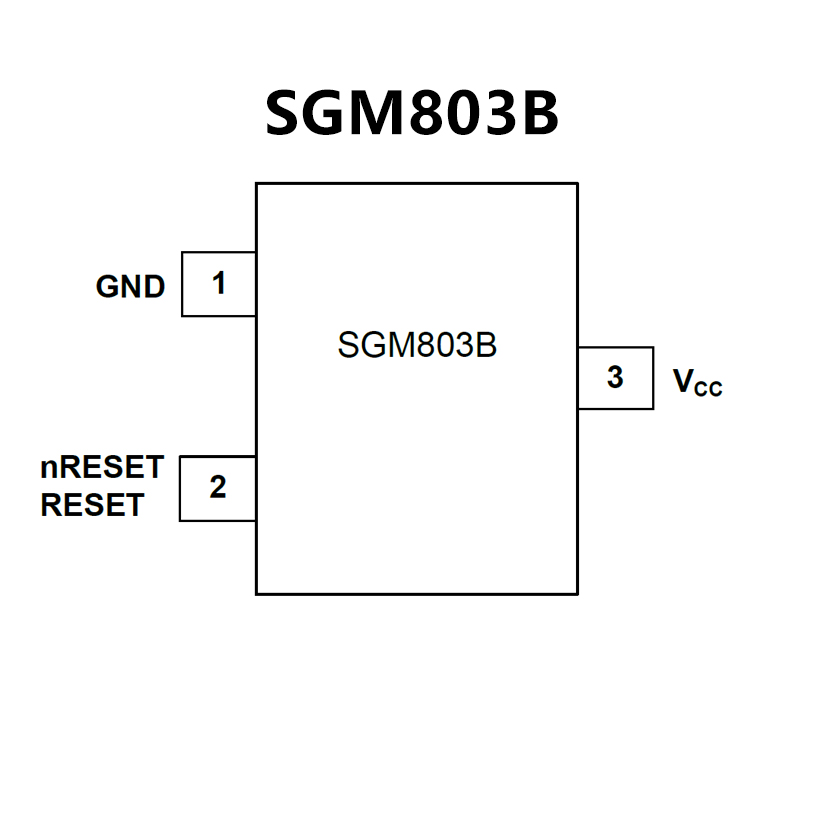

SGM803B-SXN3LG.pdf? Precision Voltage Monitor: 3V, 3.3V and 5V Options
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? VCC Transient Immunity
? Low Power Consumption: 300nA (TYP)
? Reset Assertion Down to 1V VCC
? 150ms Power-On Reset (MIN)
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23

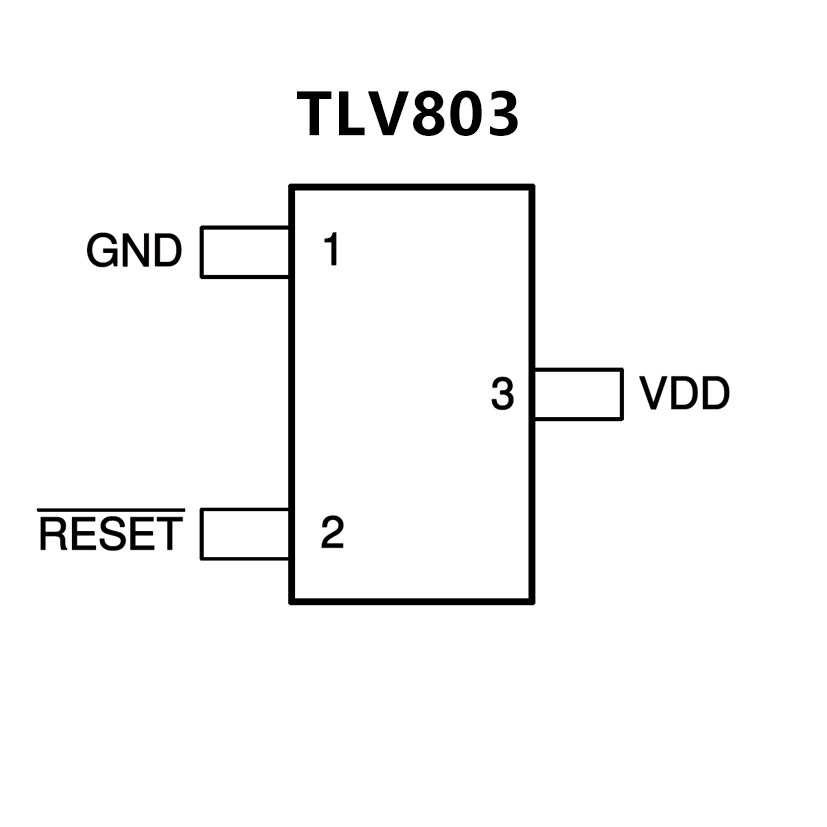

? 3-Pin SOT23 Package
? Supply Current: 9 μA (Typical)
? Precision Supply Voltage Monitor:
2.5 V, 3 V, 3.3 V, 5 V
? Power-On Reset Generator with
Fixed Delay Time of 200 ms
? Pin-for-Pin Compatible with MAX803
? Temperature Range: –40°C to +125°C
? Open-Drain, RESET Outputa
