SGM804.pdf? Monitor System Voltages from 1.6V to 5V
? Capacitor-Adjustable Reset Timeout Period
? Low Quiescent Current (3.3μA TYP)
? Push-Pull RESET Output
? Guaranteed RESET Valid to VCC = 1V
? Immune to Short VCC Transients

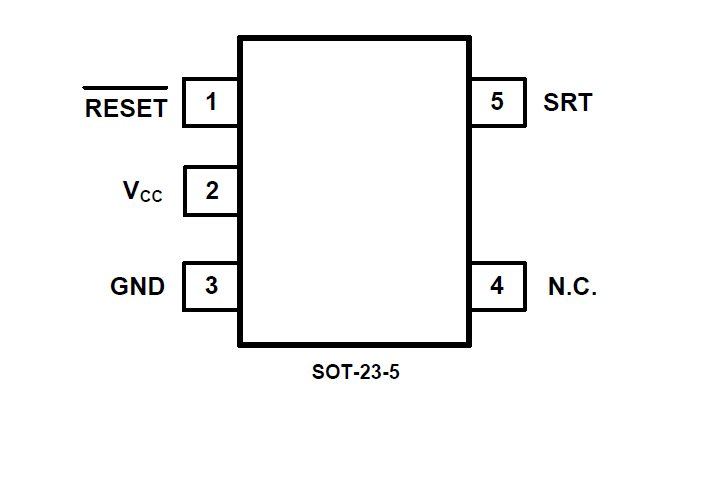

? Available in Green SOT-23-5 Package
? SGM804 Pin Compatible with NCP300–NCP303,
MC33464/MC33465,S807/S808/S809, RN5VD ,
MAX6424 and MAX6425
? Quiescent Current of 0.5 A Typical
? High Accuracy Undervoltage Threshold of 2.0%
? Wide Operating Voltage Range of 0.8 V to 10 V
? Complementary or Open Drain Reset Output
? Active Low or Active High Reset Output
? Specified Over the ?40°C to +125°C Temperature Range
(Except for Voltage Options from 0.9 to 1.1 V)
? NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
