Nano Power Operational Amplifier, Replace TLV369
SGM8041
SGM8041.pdf
SGM8041.pdfFEATURES
? Low Quiescent Current: 710nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 14.5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages

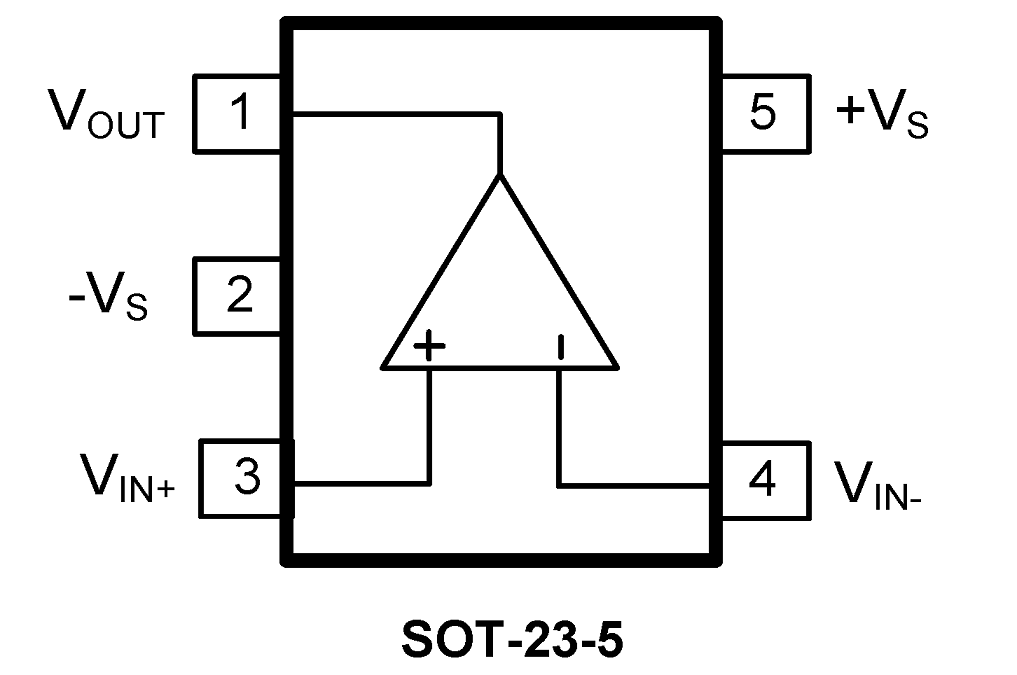

PIN CONFIGUTION
優勢替代
FEATURES
? Cost-Optimized Precision Amplifier nanoPower: 800nA/Ch
? Low Offset Voltage: 400 μV (Typ)
? Rail-to-Rail Input and Output
? Zero-Crossover Distortion
? Low Offset Drift: 0.5 μV/°C (Typ)
? Gain-Bandwidth Product: 12 kHz
? Supply Voltage: 1.8 V to 5.5 V

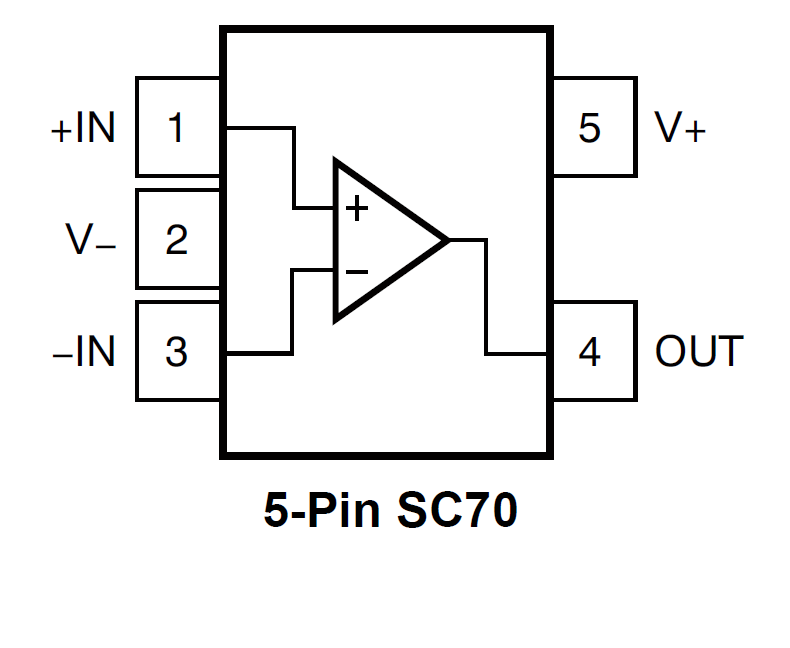

PIN CONFIGUTION
