Nano power operational Amplifier,SGM8044 Replace TLV8544.
SGM8044
SGM8044.pdf
SGM8044.pdfFEATURES
? Low Quiescent Current: 670nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 15kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-14, TSSOP-14 and
TQFN-3×3-16L Packages

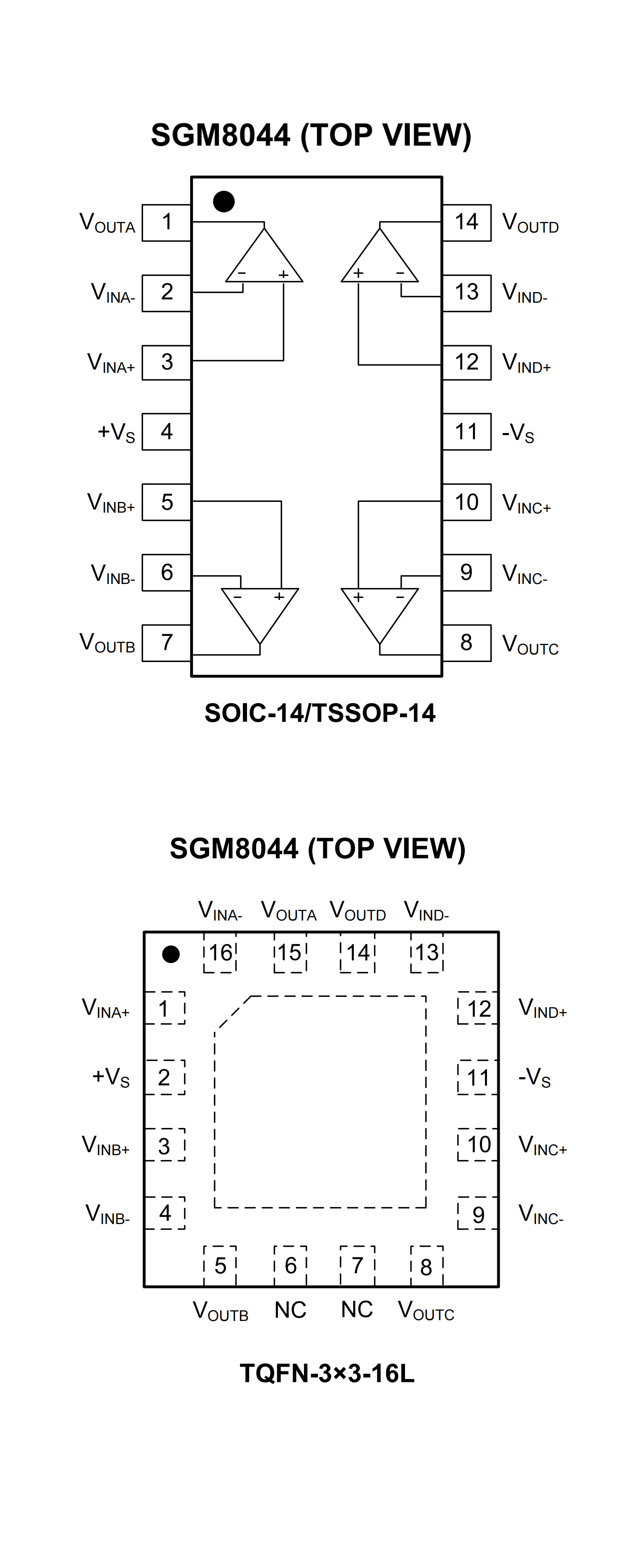

PIN CONFIGUTION
優勢替代
FEATURES
? For Cost-Optimized Systems
? Nanopower Supply Current: 500 nA/channel
? Offset Voltage: 4 mV (Max)
? TcVos: 1.5 μV/°C
? Gain-Bandwidth: 8 kHz
? Unity-Gain Stable
? Low Input Bias Current: 100 fA
? Wide Supply Range: 1.7 V to 3.6 V
? Rail to Rail Input And Output (RRIO)
? Temperature Range –40°C to 125°C
? Industry Standard Package
–Quad in 14-pin TSSOP

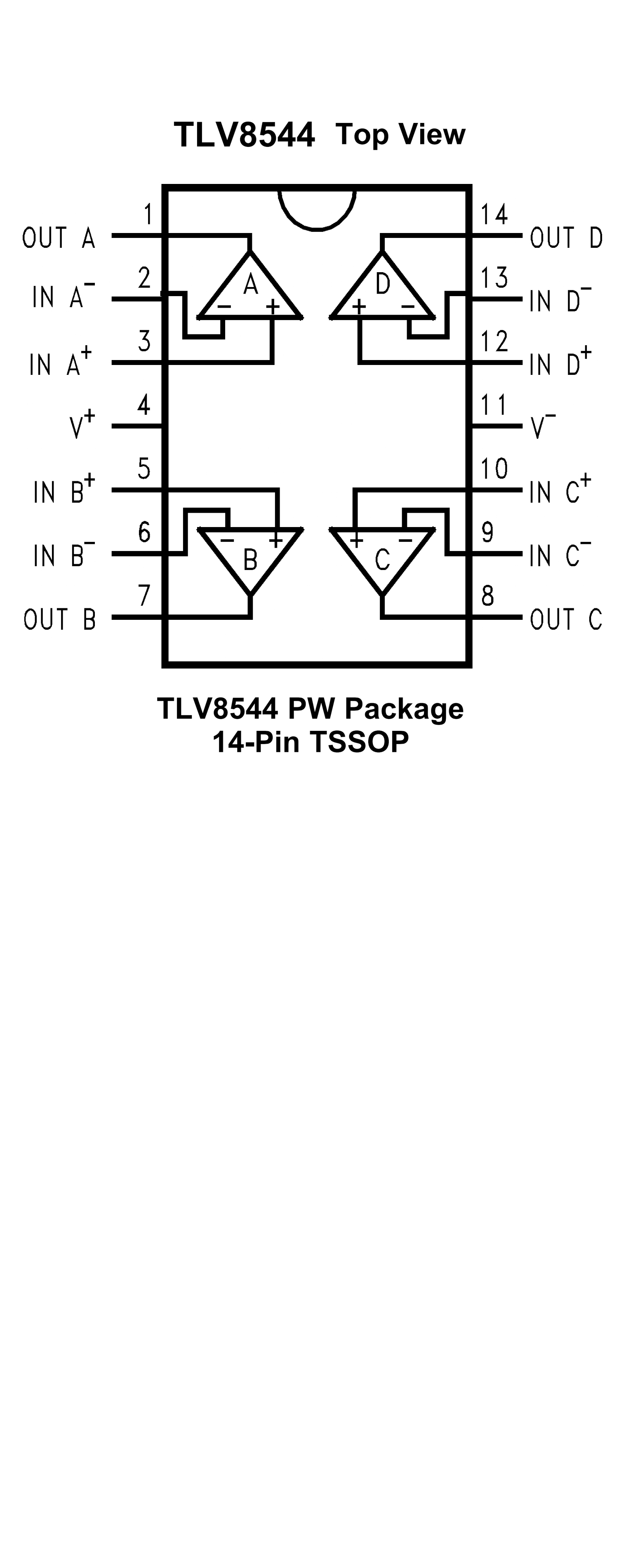

PIN CONFIGUTION
