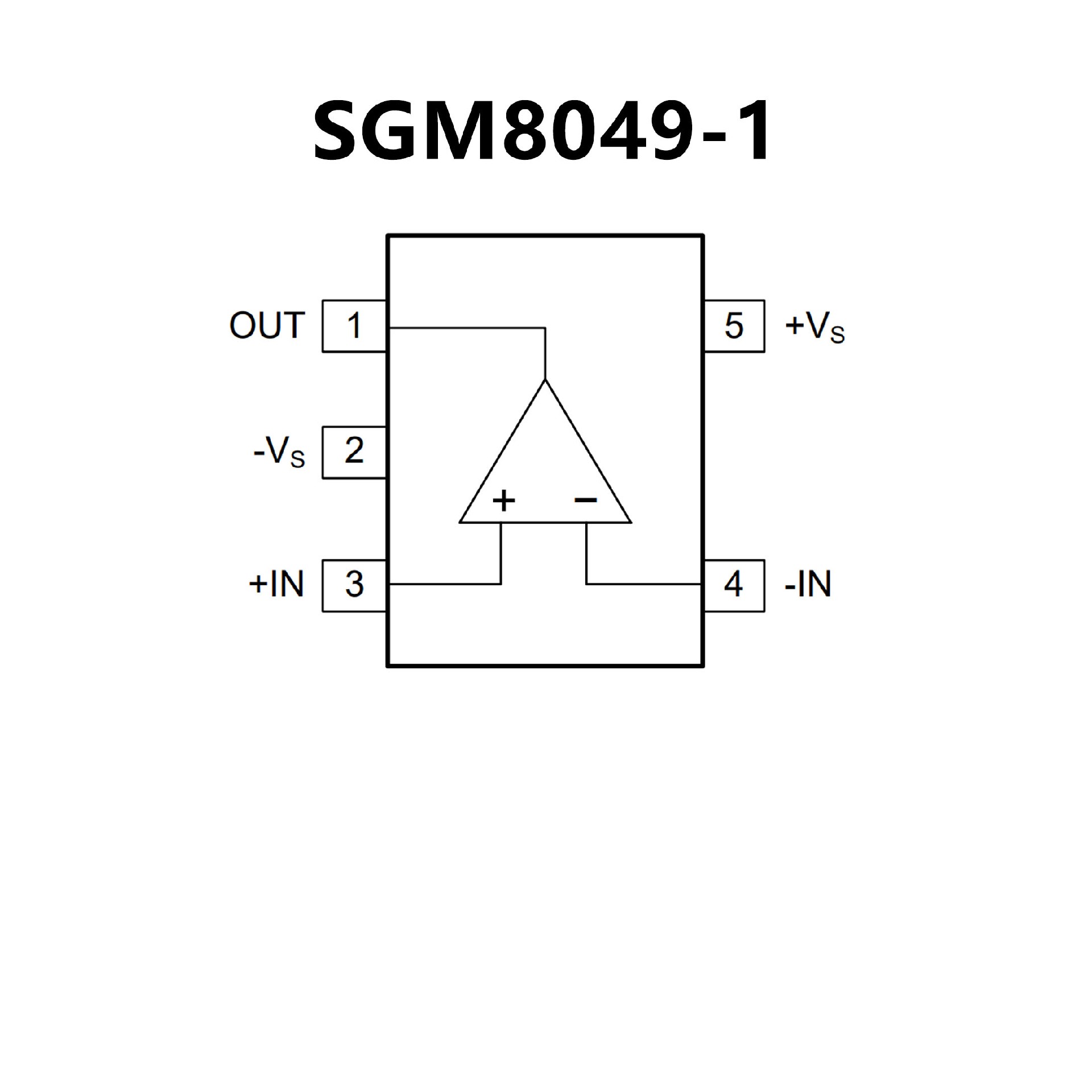

SGM8049-1.pdf? Low Noise: 3.5μVPP (0.1Hz to 10Hz)
? Wide Supply Voltage Range: 1.8V to 5.5V
? Low Quiescent Current: 2.5μA/Amplifier (TYP)
? Low Offset Voltage: 0.85mV (MAX)
? DC Precision:
CMRR: 100dB
PSRR: 2.5μV/V
AOL: 118dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8049-1 Available in Green SC70-5,
SOT-23-5and TDFN-2×2-6L Packages
SGM8049-2 Available in Green SOT-23-8 and
SOIC-8 Packages
SGM8049-4 Available in a Green TSSOP-14 Package
? Unmatched Price Performance

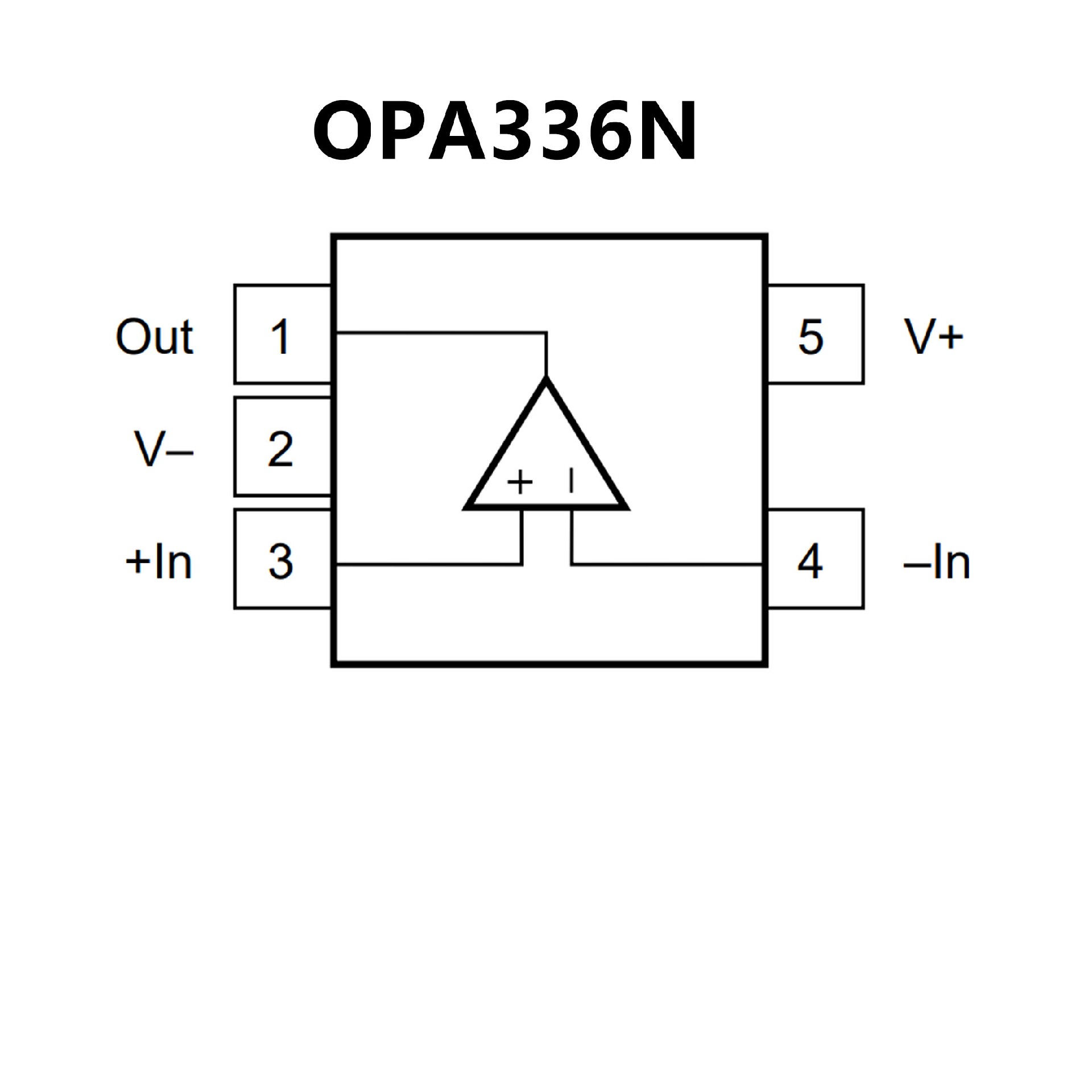

? Low Offset Voltage: 50 μV (Maximum)
? Zero Drift: 0.25 μV/°C (Maximum)
? Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
? Quiescent Current: 35 μA (Maximum)
? Supply Voltage: 1.8 V to 5.5 V
? Rail-to-Rail Input and Output
? Internal EMI Filtering
? microSize Packages: DSBGA, SC70, VQFN
