SGM8049-2XS8G.pdf? Low Noise: 3.5μVPP (0.1Hz to 10Hz)
? Wide Supply Voltage Range: 1.8V to 5.5V
? Low Quiescent Current: 2.5μA/Amplifier (TYP)
? Low Offset Voltage: 0.85mV (MAX)
? DC Precision:
CMRR: 100dB
PSRR: 2.5μV/V
AOL: 118dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8049-1 Available in Green SC70-5,
SOT-23-5and TDFN-2×2-6L Packages

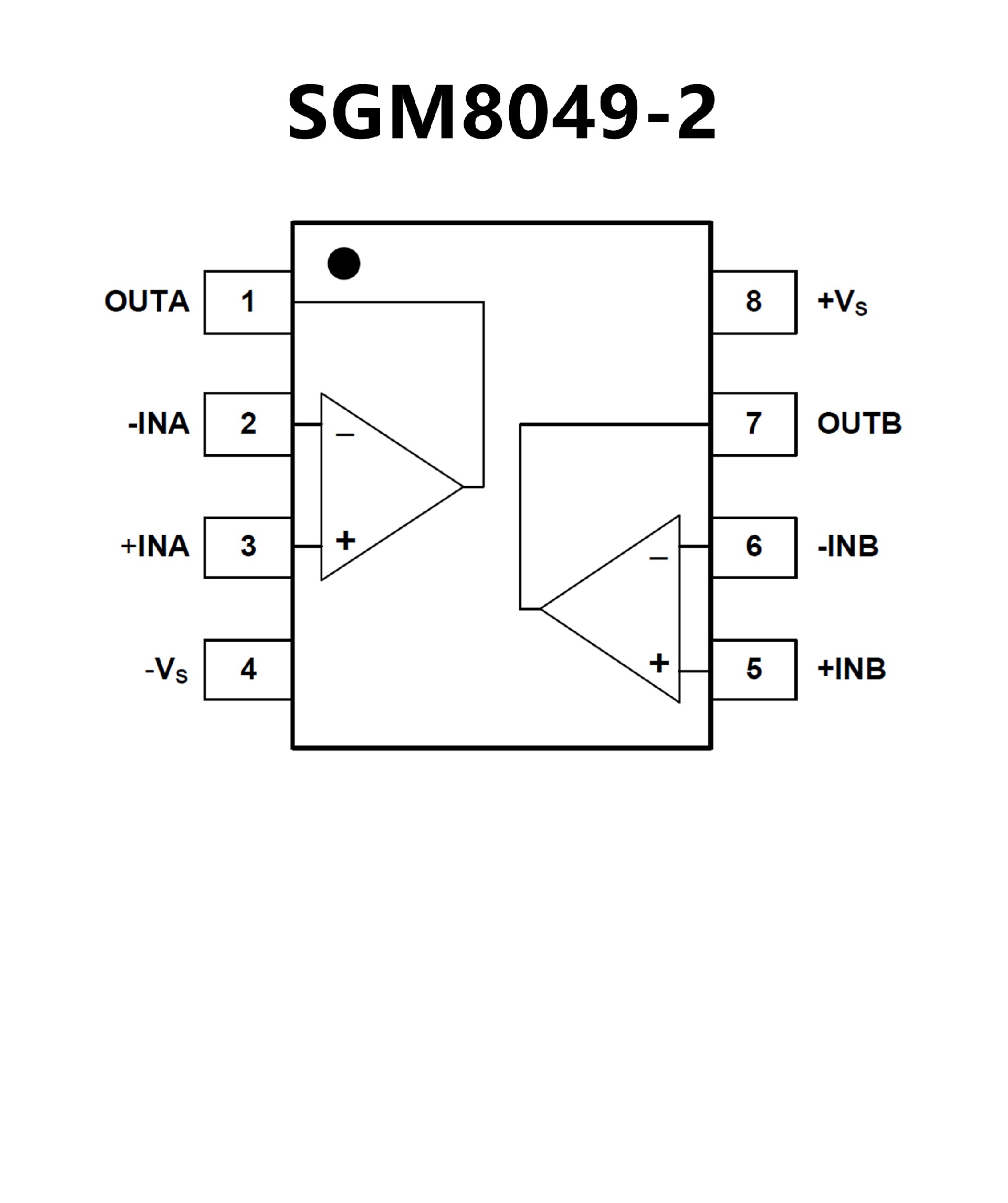

SGM8049-2 Available in Green SOT-23-8 and
SOIC-8 Packages
SGM8049-4 Available in a Green TSSOP-14 Package
? Supply Current . . . 23 μA/Channel
? Gain-Bandwidth Product . . . 220 kHz
? Output Drive Capability . . . ±10 mA
? Input Offset Voltage . . . 20 μV (typ)
? VDD Range . . . 2.7 V to 6 V
? Power Supply Rejection Ratio . . . 106 dB
? Ultralow-Power Shutdown Mode
IDD . . . 16 nA/ch
? Rail-To-Rail Input/Output (RRIO)
? Ultrasmall Packaging
5 or 6 Pin SOT-23 (TLV2450/1)

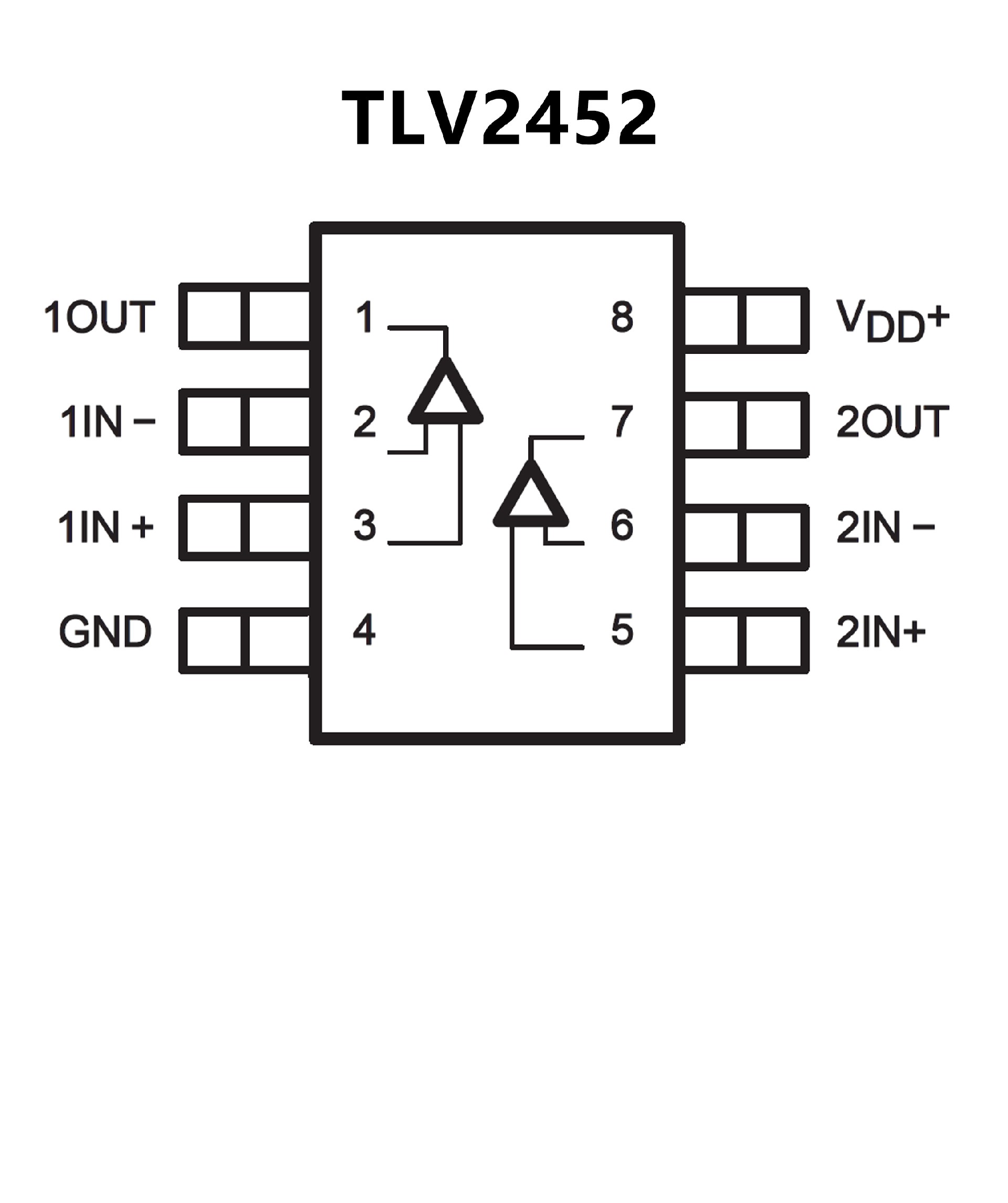

8 or 10 Pin MSOP (TLV2452/3)
