SGM8054.pdf? Low Cost
? Rail-to-Rail Output
? Input Offset Voltage: 8mV (MAX)
? ;High Speed:-3dB Bandwidth: 250MHz (G = +1)Slew Rate:
130V/μs Settling Time to 0.1% with 2V Step: 58ns
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2):0.1dB Gain Flatness:
37MHzDiff Gain: 0.03%, Diff Phase: 0.08°
? Low Supply Current: 2.3mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range

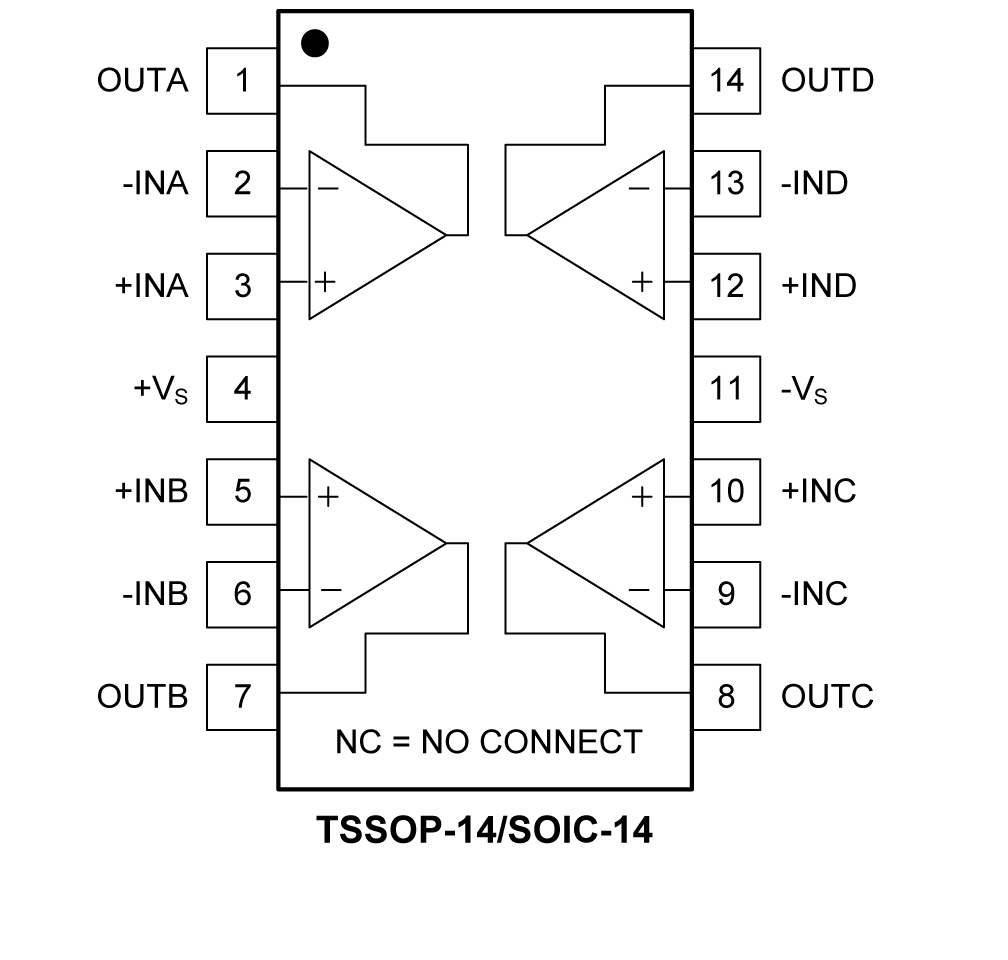

? Available in TSSOP-14 and SOIC-14 Packages
? High speed and fast settling on 5V

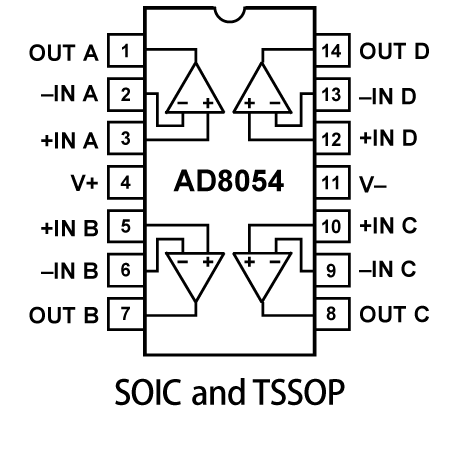

150 MHz, ?3 dB bandwidth (G = +1) (AD8054)
145V/μs slew rate
50ns settling time to 0.1%
? Single-supply operation
Output swings to within 25mV of either rail
Input voltage range: ?0.2V to +4V; VS = 5V
? Video specifications (G = +2)
0.1dB gain flatness: 20MHz; RL = 150Ω
Differential gain/phase: 0.03%/0.03°
? Low distortion
?80 dBc total harmonic @ 1MHz, RL = 100Ω
? Low power: 2.75 mA/amplifier (AD8054)
