? Low Cost

? Rail-to-Rail Output

? Input Offset Voltage: 8mV (MAX)

? High Speed: -3dB Bandwidth (G = +1): 250MHz

  Slew Rate: 130V/μs

  Settling Time to 0.1% with 2V Step: 58ns

? Supply Voltage Range: 2.5V to 5.5V

? Input Voltage Range: -0.2V to 3.8V with VS = 5V

? Excellent Video Specs (RL = 150Ω, G = +2):

  0.1dB Gain Flatness: 37MHz

  Diff Gain: 0.03%, Diff Phase: 0.08°

? Low Supply Current:

  2.3mA/Amplifier (TYP)

  75μA Shutdown Current for SGM8053/5

? Small Packaging:

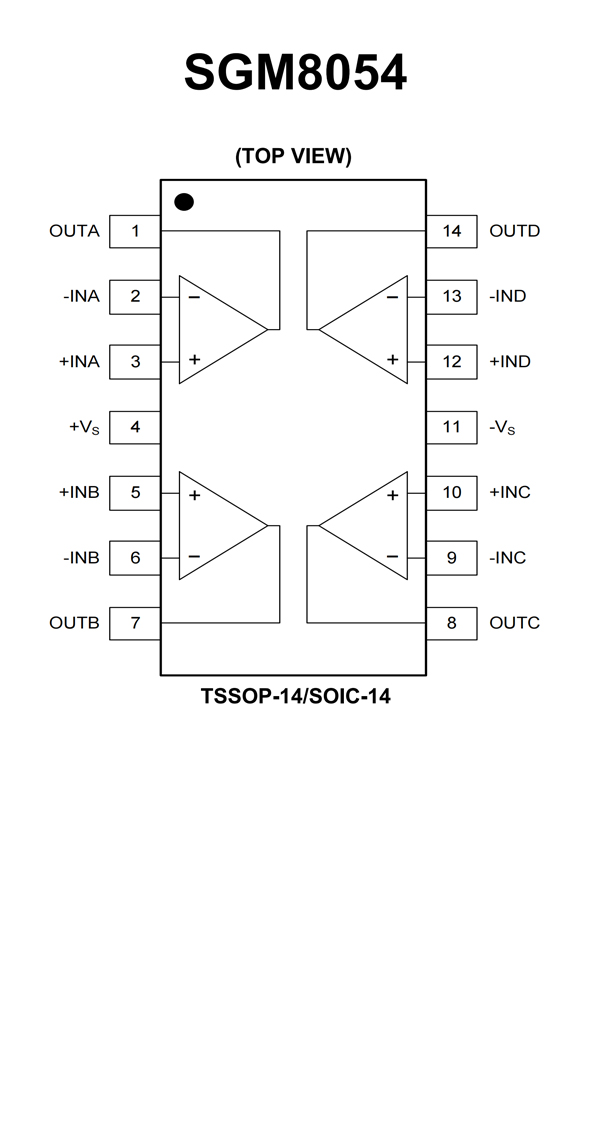

  SGM8054 Available in TSSOP-14 and SOIC-14

  Packages
