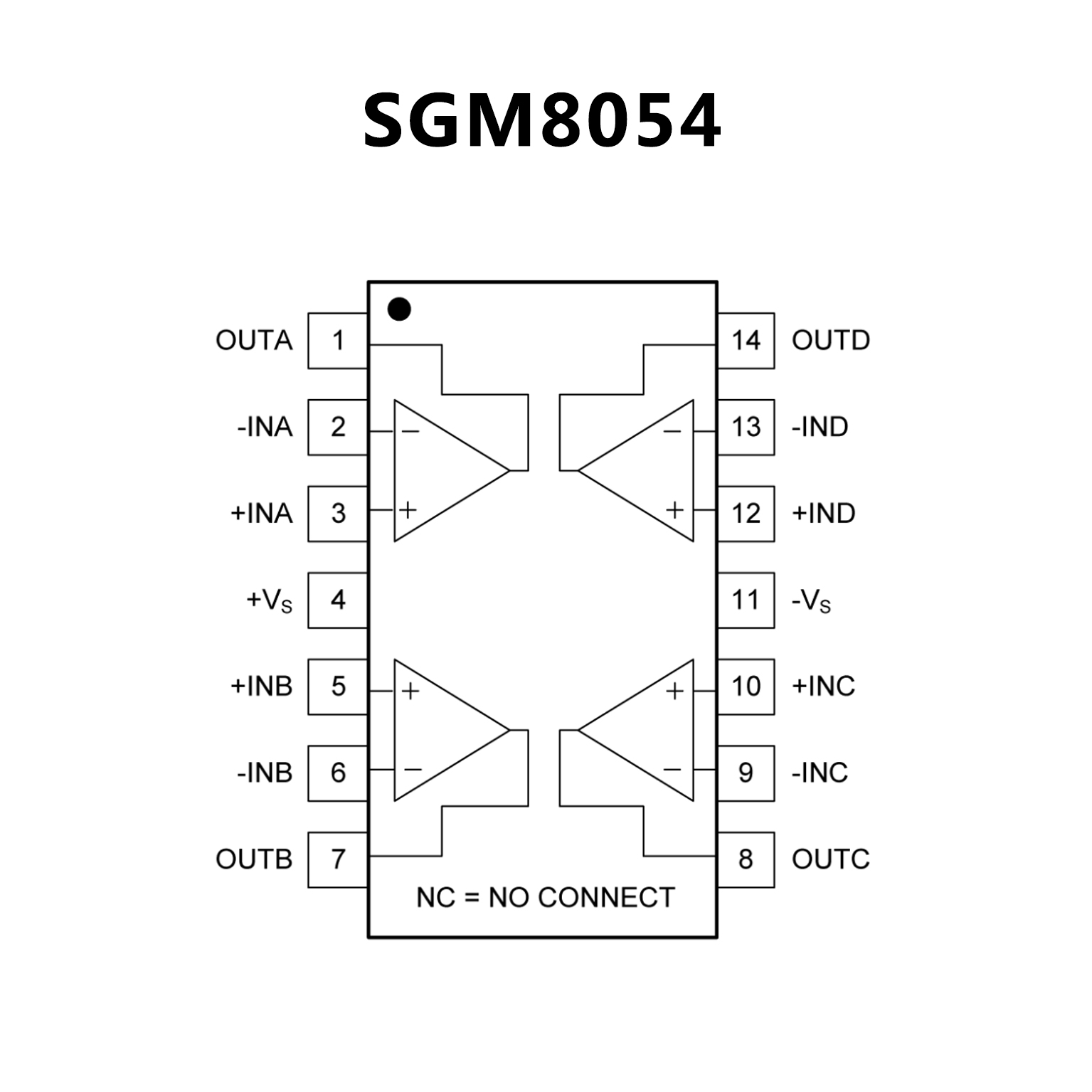

SGM8054.pdf? Low Cost
? Rail-to-Rail Output
? Input Offset Voltage: 8mV (MAX)
? High Speed:-3dB Bandwidth: 250MHz (G = +1)Slew Rate:
130V/μs Settling Time to 0.1% with 2V Step: 58ns
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2):0.1dB Gain Flatness:
37MHzDiff Gain: 0.03%, Diff Phase: 0.08°
? Low Supply Current: 2.3mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in TSSOP-14 and SOIC-14 Packages

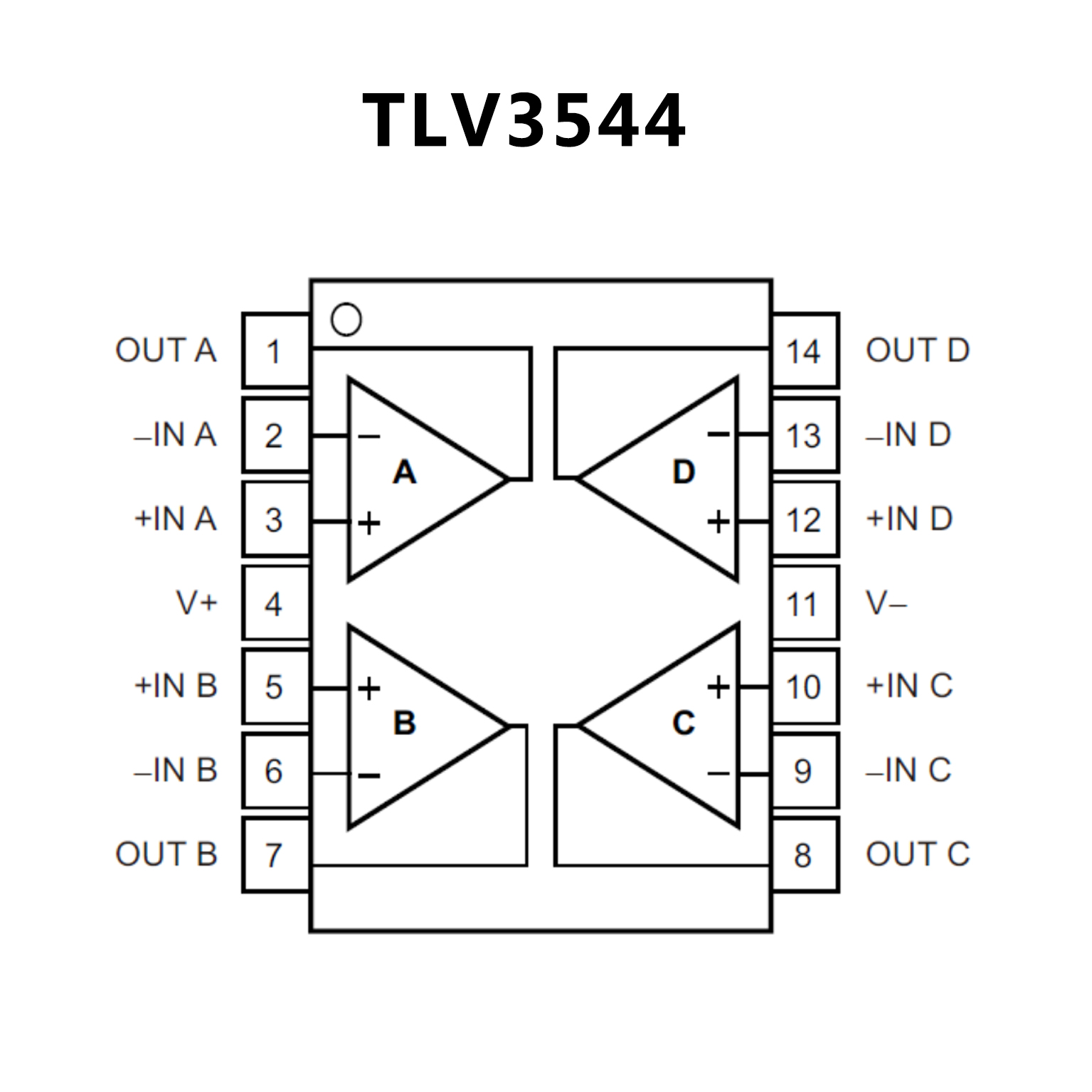

? Wide-Bandwidth Amplifier for Cost-Sensitive Systems
? Unity-Gain Bandwidth: 200 MHz
? High Slew Rate: 150 V/μs
? Low Noise: 7.5 nV/√Hz
? Rail-to-Rail I/O
? High Output Current: > 100 mA
? Excellent Video Performance:
– Diff Gain: 0.02%, Diff Phase: 0.09°
– 0.1-dB Gain Flatness: 40 MHz
? Low Input Bias Current: 3 pA
? Quiescent Current: 5.2 mA
? Thermal Shutdown
? Supply Range: 2.5 V to 5.5 V
