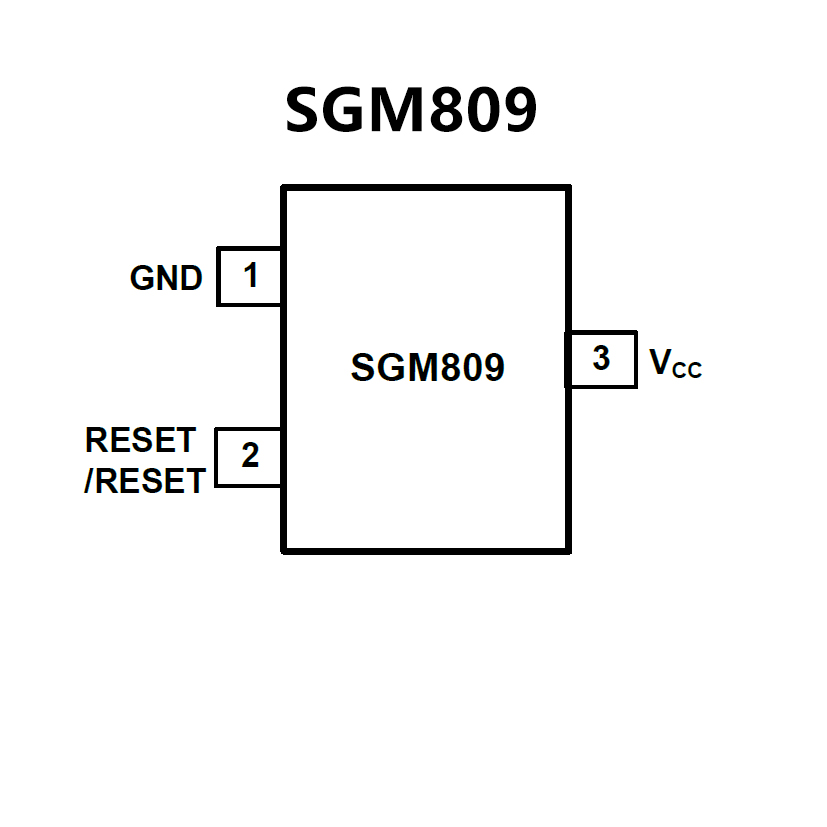

SGM809.pdf? Precision Voltage Monitor: 1.8V,
2.5V, 3V, 3.3V, 5V Options
? Superior Upgrade for MAX803/MAX809
/MAX810 and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? Low Power Consumption: 13μA (TYP)
? Reset Assertion Down to 1V VCC
? 150ms Power-On Reset (MIN)
Open-Drain RESETOutput (SGM803)
Push-Pull RESETOutput (SGM809)
Push-Pull RESET Output (SGM810)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging
SGM803 Available in SOT-23-3 and SOT-23
SGM809 Available in SOT-23-3 and SOT-23
SGM810 Available in SOT-23-3 and SOT-23
? Wide Operation Voltage Range of 1V to 10V
? Typical Quiescent Current of 3μA
? No External Components
? 3-Pin Small SOT323 and SOT23 Packages
? VCC Transient Immunity
? Correct Logic Output Guaranteed to VCC=1.0V
? Precision VCC Monitor for 2.5V, 3.0V, 3.3V,
and 5.0V Supplies
? Available in 2 Output Configurations

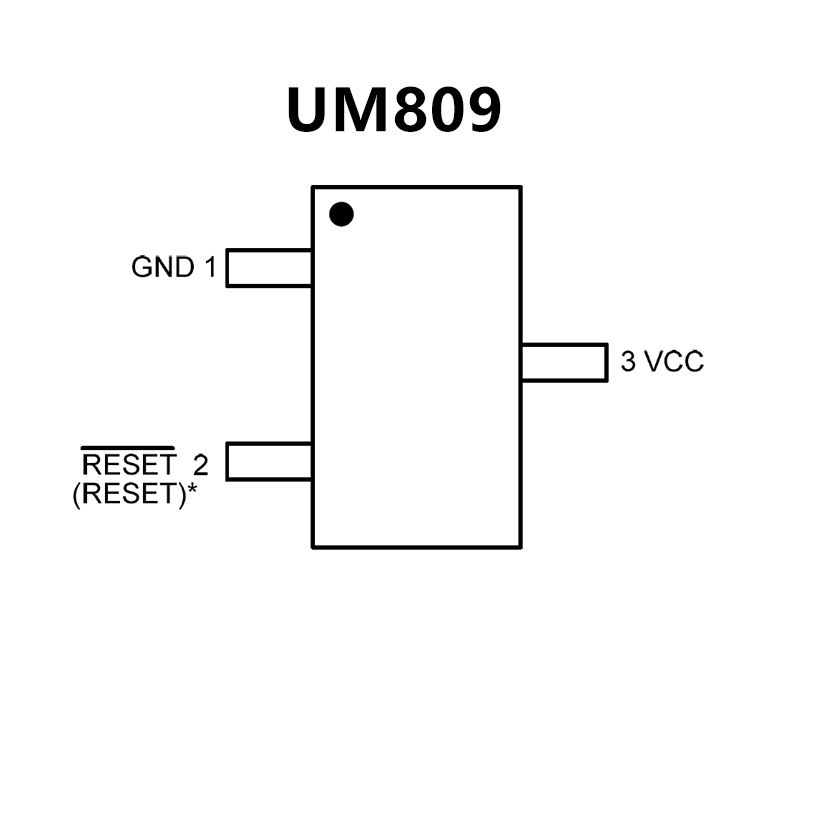

Push-Pull Low Active Reset Output (UM809)
Push-Pull High Active Reset Output (UM810)
? Wide Operation Temperature: -40°C to +85°C
