SGM8092.pdf? Rail-to-Rail Output
? Input Offset Voltage: 8mV (MAX)
? High Speed:
350MHz, -3dB Bandwidth (G = +1)
265V/μs, Slew Rate
32ns Settling Time to 0.1% with 2V Step
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2):
Gain Flatness 0.1dB to 70MHz
Diff Gain: 0.004%, Diff Phase: 0.08 Degree
? Low Supply Current:
4.3mA/Amplifier (TYP)
75μA Shutdown Current for SGM8093
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8091 Available in SOIC-8 and SOT-23-5

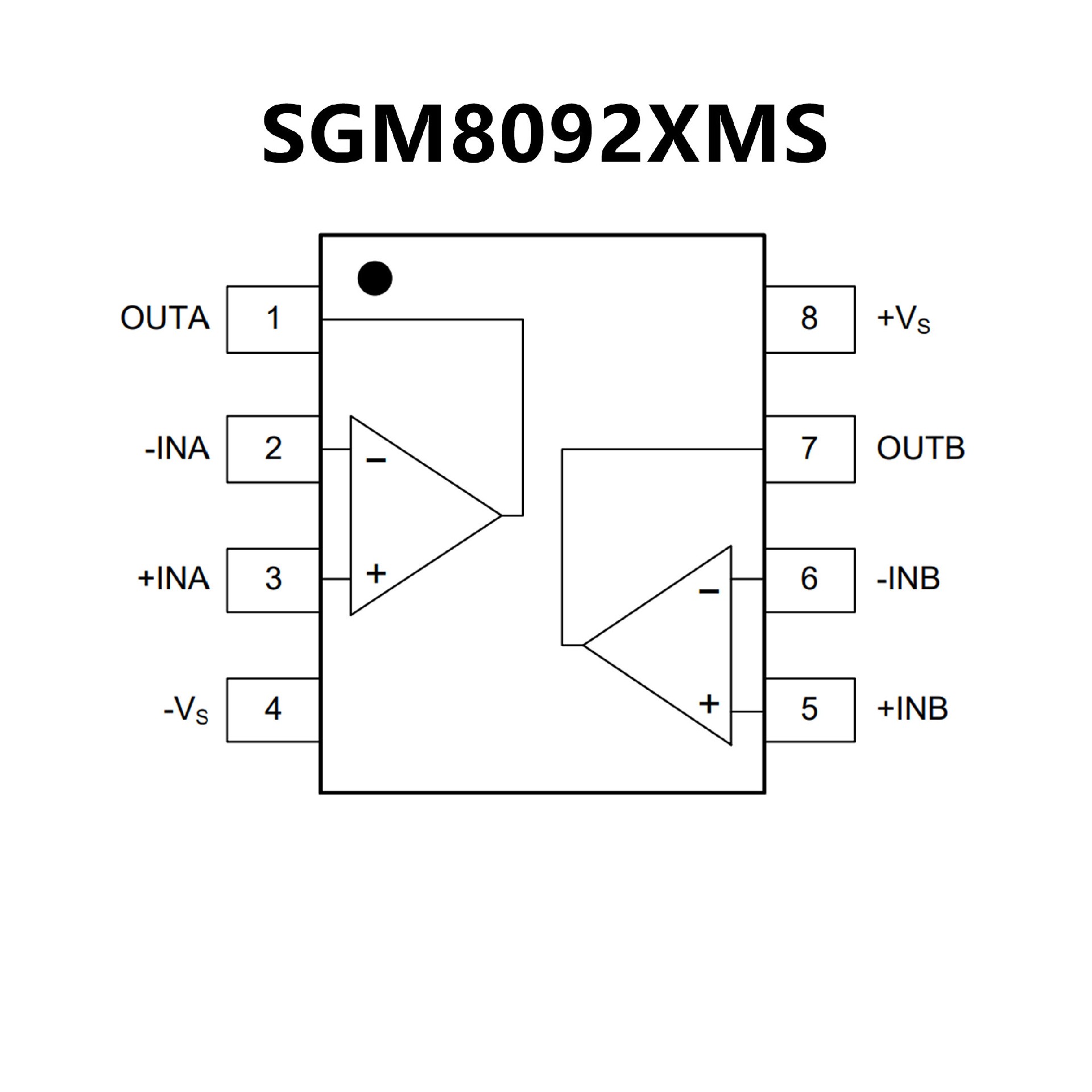

SGM8092 Available in SOIC-8 and MSOP-8
SGM8093 Available in SOIC-8 and SOT-23-6
SGM8094 Available in SOIC-14 and TSSOP-14
? UNITY-GAIN BANDWIDTH: 450MHz
? WIDE BANDWIDTH: 200MHz GBW
? HIGH SLEW RATE: 360V/μs
? LOW NOISE: 5.8nV/√Hz
? EXCELLENT VIDEO PERFORMANCE:
DIFF GAIN: 0.02%, DIFF PHASE: 0.05°
0.1dB GAIN FLATNESS: 75MHz
? INPUT RANGE INCLUDES GROUND
? RAIL-TO-RAIL OUTPUT (within 100mV)
? LOW INPUT BIAS CURRENT: 3pA
? THERMAL SHUTDOWN
? SINGLE-SUPPLY OPERATING RANGE: 2.5V to 5.5V
? MicroSIZE PACKAGES
