? Rail-to-Rail Output

? Input Offset Voltage: 8mV (MAX)

? High Speed:

  350MHz, -3dB Bandwidth (G = +1)

  265V/μs, Slew Rate

  32ns Settling Time to 0.1% with 2V Step

? Supply Voltage Range: 2.5V to 5.5V

? Input Voltage Range: -0.2V to 3.8V with VS = 5V

? Excellent Video Specs (RL = 150Ω, G = +2):

  Gain Flatness 0.1dB to 70MHz

  Diff Gain: 0.004%, Diff Phase: 0.08 Degree

? Low Supply Current:

  4.3mA/Amplifier (TYP)

  75μA Shutdown Current for SGM8093

? -40℃ to +125℃ Operating Temperature Range

? Small Packaging:

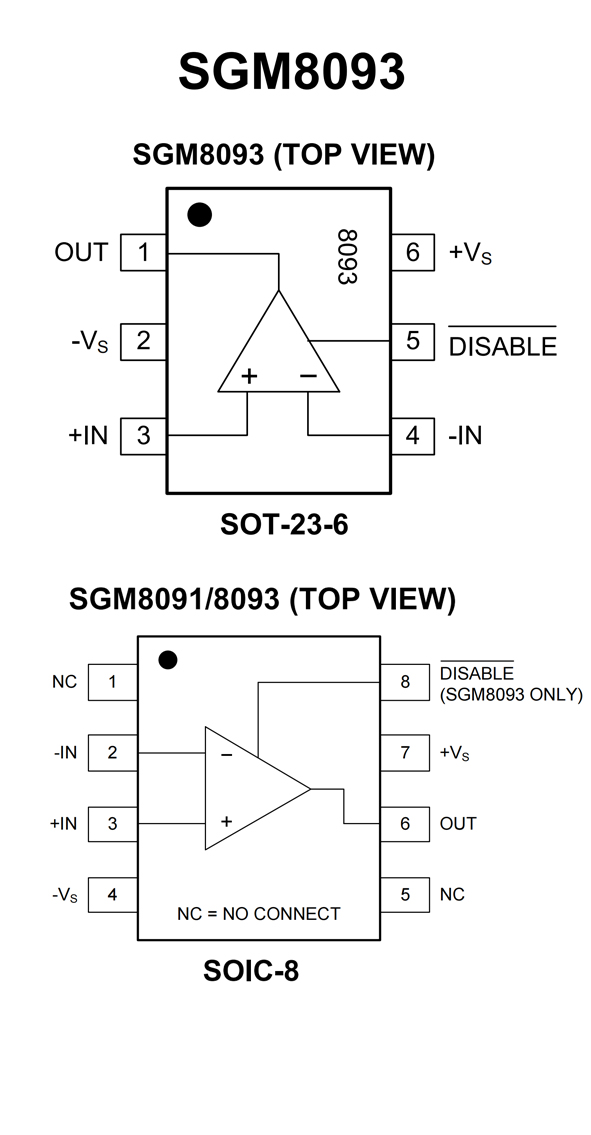

  SGM8093 Available in SOIC-8 and SOT-23-6
