SGM809B.pdf? Precision Voltage Monitor: 1.8V, 2.5V, 3V, 3.3V, 5VOptions
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? Low Power Consumption (13μA TYP)
? Reset Assertion Down to 1V VCC
? 150ms Min Power

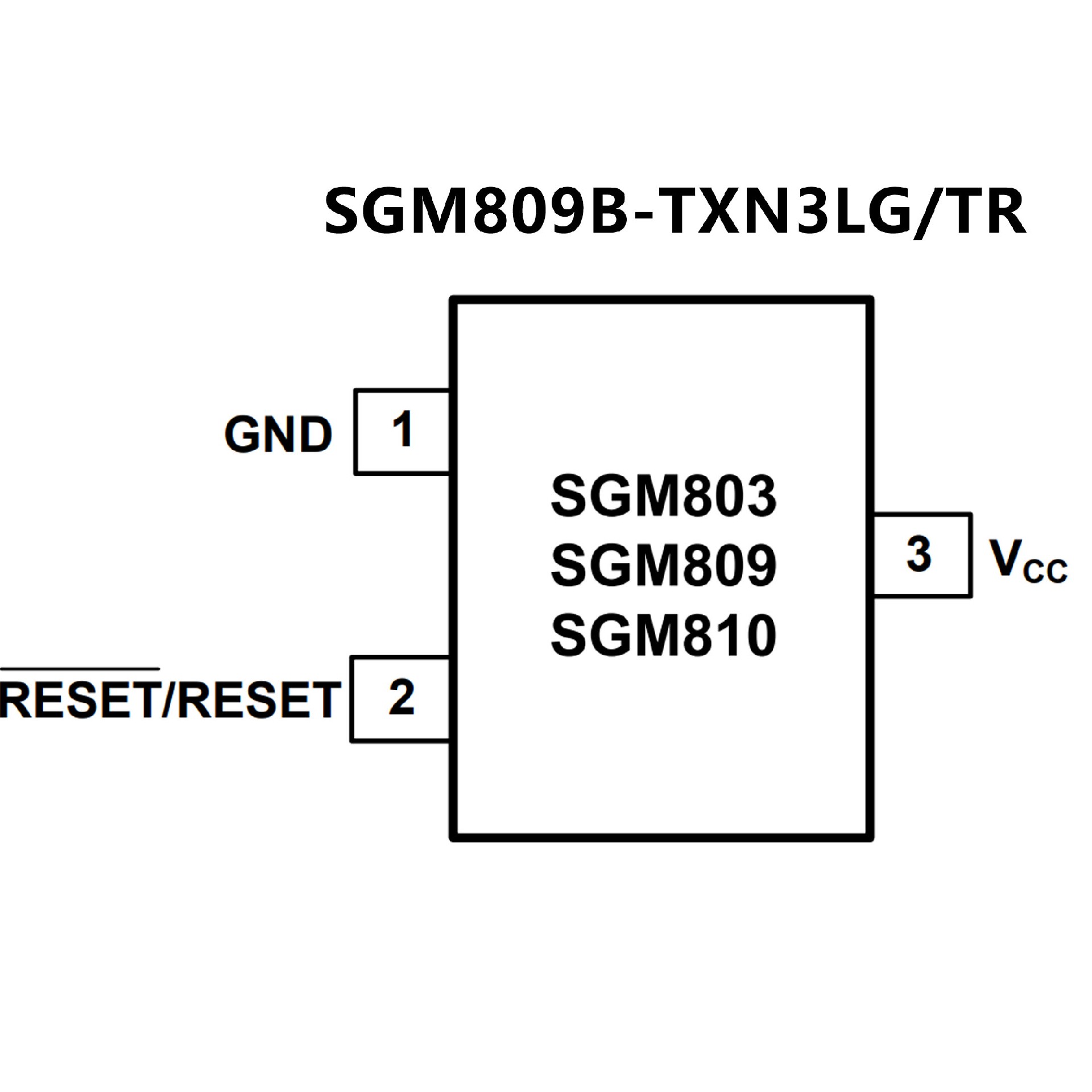

On ResetOpen-Drain RESETOutput (SGM803) Push
Pull RESET Output (SGM809) Push
Pull RESET Output (SGM810)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging
SGM803 Available in SOT-23-3 and SOT-23
SGM809 Available in SOT-23-3 and SOT-23
SGM810 Available in SOT-23-3 and SOT-23
? Precision Monitoring of +2.5V, +3V, +3.3V,
and +5V Power-Supply Voltages
? Fully Specified Over Temperature
? Available in three Output Configurations

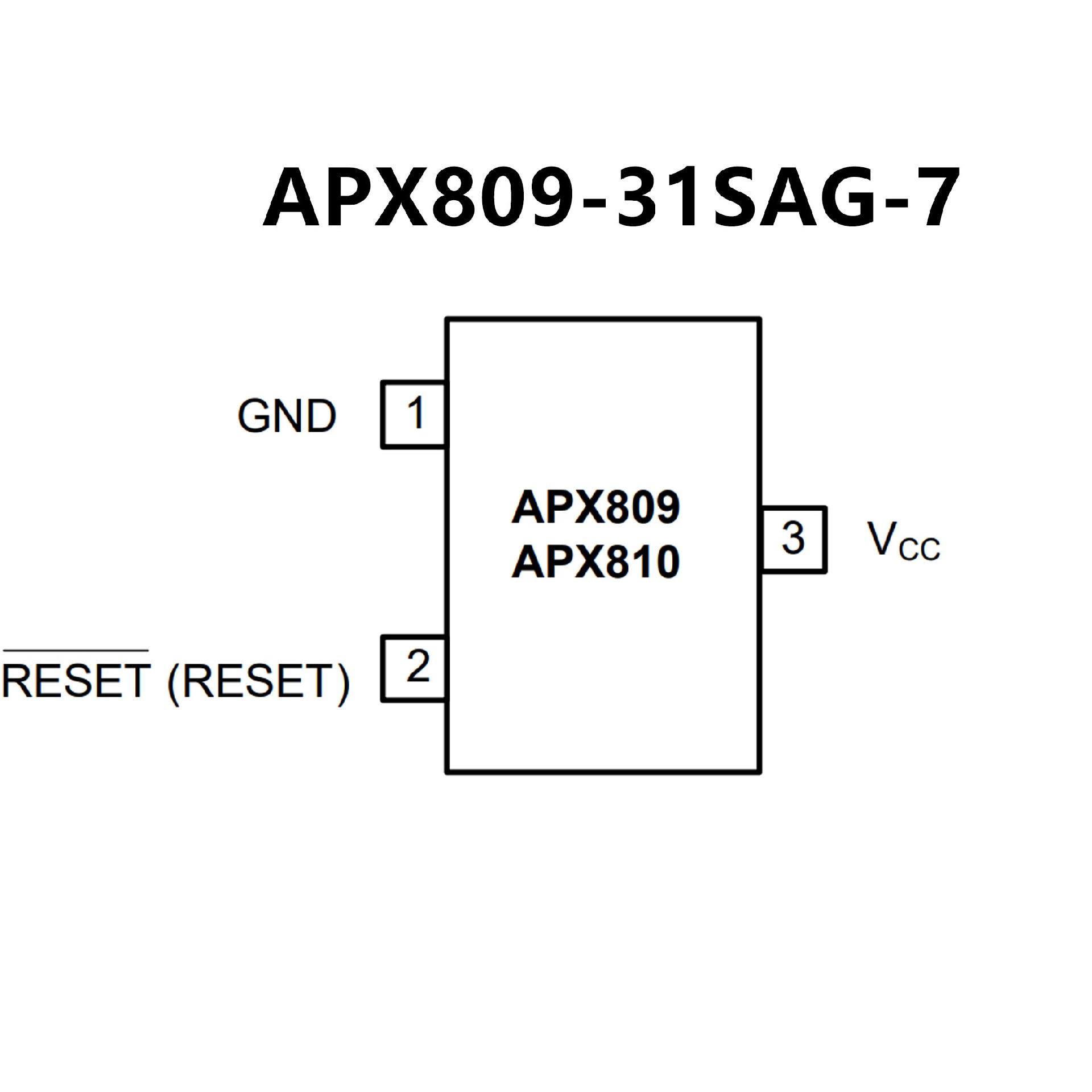

? Push-Pull RESET Active Low (APX809)
? Push-Pull RESET Active High (APX810)
? 200ms Typ Power-On Reset Pulse Width
? 30μA Supply Current (Typ.)
? Guaranteed Reset Valid to VCC = +1V
? No External Components
? SOT23 and SOT23R: Available in “Green”
Molding Compound (No Br, Sb)
? Lead Free Finish/RoHS Compliant (Note 1)
