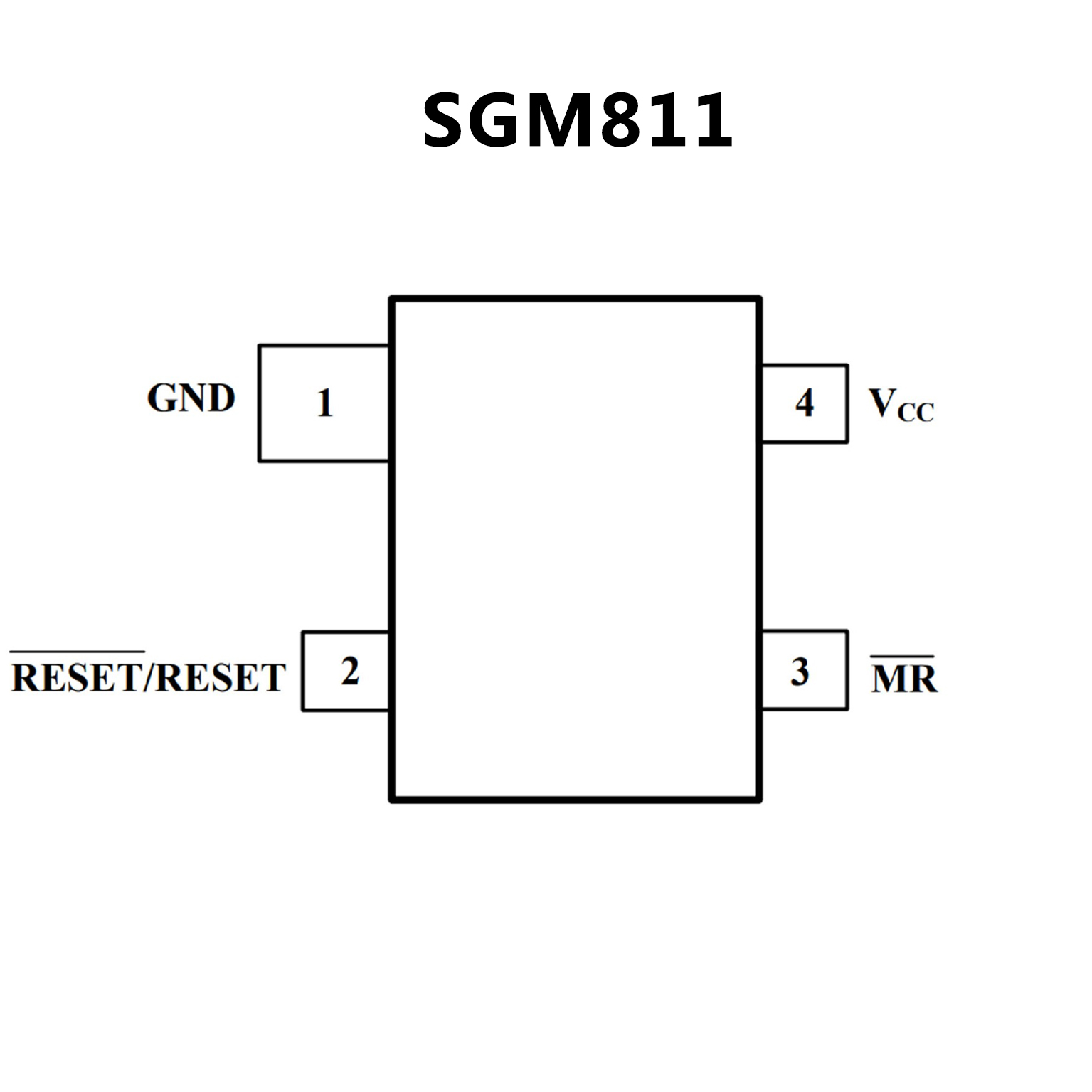

SGM811.pdf? Superior Upgrade for MAX811/MAX812 and
ADM811/ADM812
? Specified over Temperature
? Low Power Consumption (17 μA Typ)
? Precision Voltage Monitor: 2.5V,3 V, 3.3 V, 5 V Options
? Reset Assertion Down to 1 V VCC
? 160 ms Min Power-On Reset
Logic Low RESET Output (SGM811)
Logic High RESET Output (SGM812)
? Manual Reset Input
? Compact 4-Pin SOT143 and 5-Pin SOT23 Packages

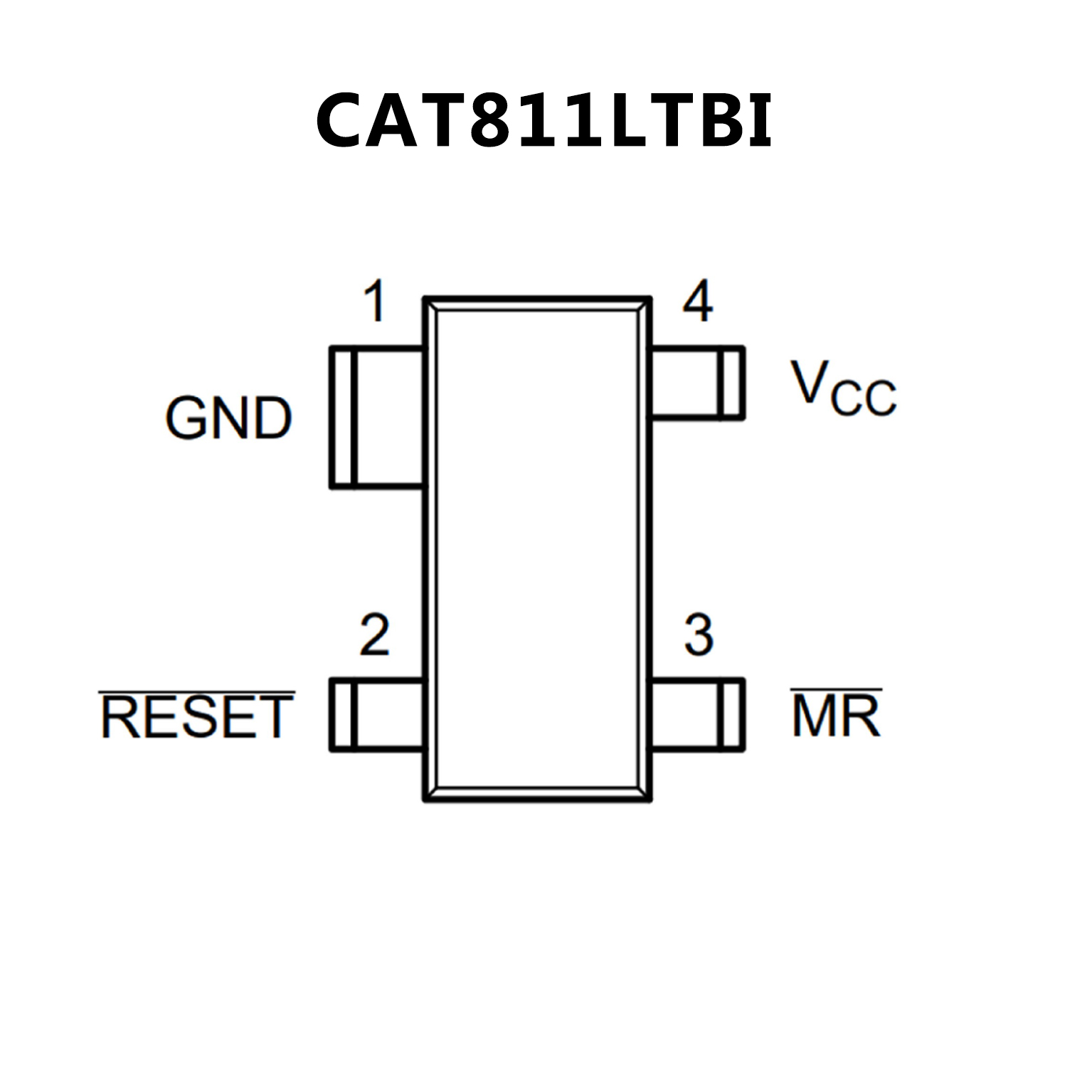

? Precision Monitoring of
+5.0 V(± 5%, ± 10%, ± 20%),
+3.3 V (± 5%, ± 10%)
? Manual Reset Input
? Output Configuration: Active LOW Reset
? Direct Replacements for the MAX811 in
Applications Operatingover the Industrial
Temperature Range
? Reset Valid down to VCC = 1.0 V
? 6μA Power Supply Current
? Power Supply Transient Immunity
? Available in SOT?143 Packages with
Sn or NiPdAu Green LeadFinishes
? Industrial Temperature Range:
?40°C to +85°C
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHSCompliant
