Nano power operational Amplifier,SGM8141 Replace TLV8811.
SGM8141
SGM8141.pdf
SGM8141.pdfFEATURES
? Low Quiescent Current: 380nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages

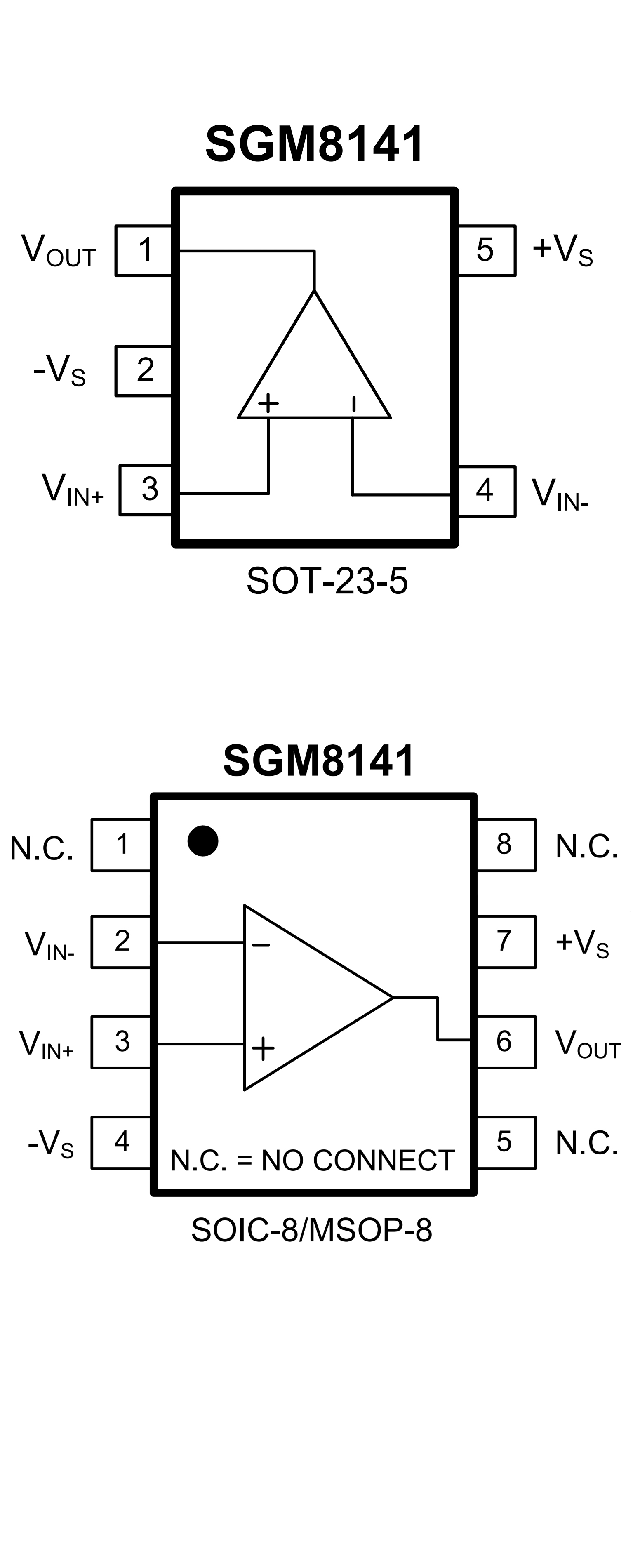

PIN CONFIGUTION
優勢替代
FEATURES
? For Cost-Optimized Systems
? Nanopower Supply Current: 425 nA/channel
? Offset Voltage: 500 μV (max)
? TcVos: 1 μV/°C
? Gain-Bandwidth: 6 kHz
? Unity-Gain Stable
? Low Input Bias Current : 100 fA
? Wide Supply Range: 1.7 V to 5.5 V
? Rail-to-Rail Output
? No Output Reversals
? EMI Protection
? Temperature Range: –40°C to 125°C
? Industry Standard Packages:
–Single in 5-pin SOT-23
–Dual in 8-pin VSSOP

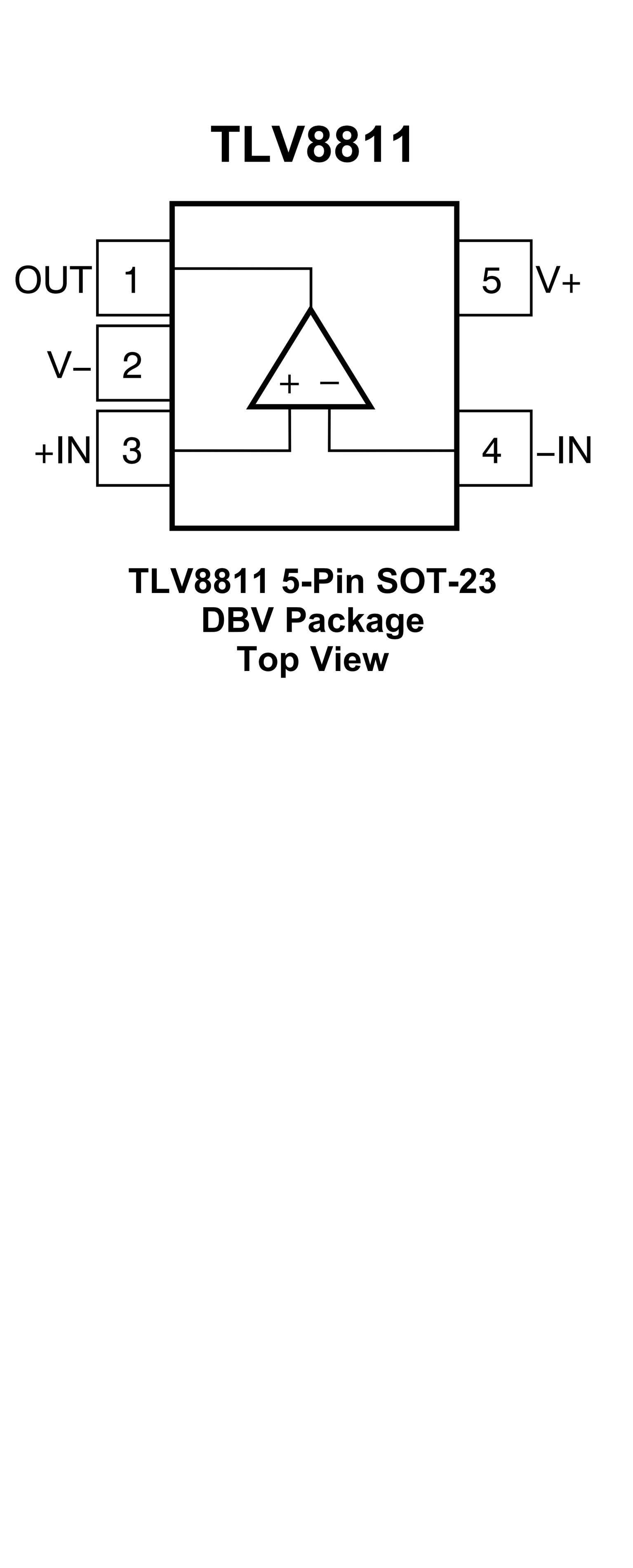

PIN CONFIGUTION
