Nano Power Operational Amplifier, Replace LPV542
SGM8142
SGM8142.pdf
SGM8142.pdfFEATURES
? Low Quiescent Current: 350nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

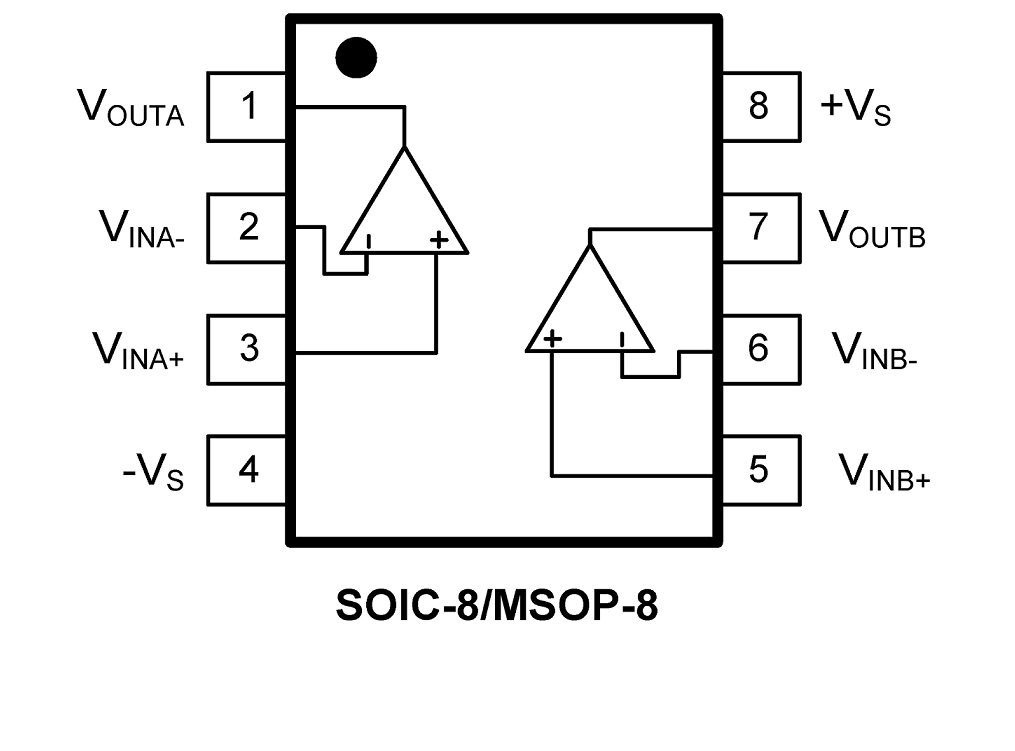

PIN CONFIGUTION
優勢替代
FEATURES
? Wide Supply Range: 1.6V to 5.5V
? Low Supply Current: 490nA (typical/channel)
? Good Offset Voltage: 3mV (maximum/room)
? Good TcVos: 1μV/°C (typical)
? Gain-Bandwidth: 8kHz (typical)
? Rail-to-Rail Input and Output
? Unity-Gain Stable
? Low Input Bias Current : 1 pA (maximum/room)

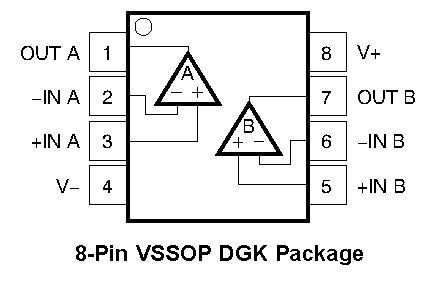

PIN CONFIGUTION
