Nano Power Operational Amplifier, Replace TLV522
SGM8142
SGM8142.pdf
SGM8142.pdfFEATURES
? Low Quiescent Current: 350nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

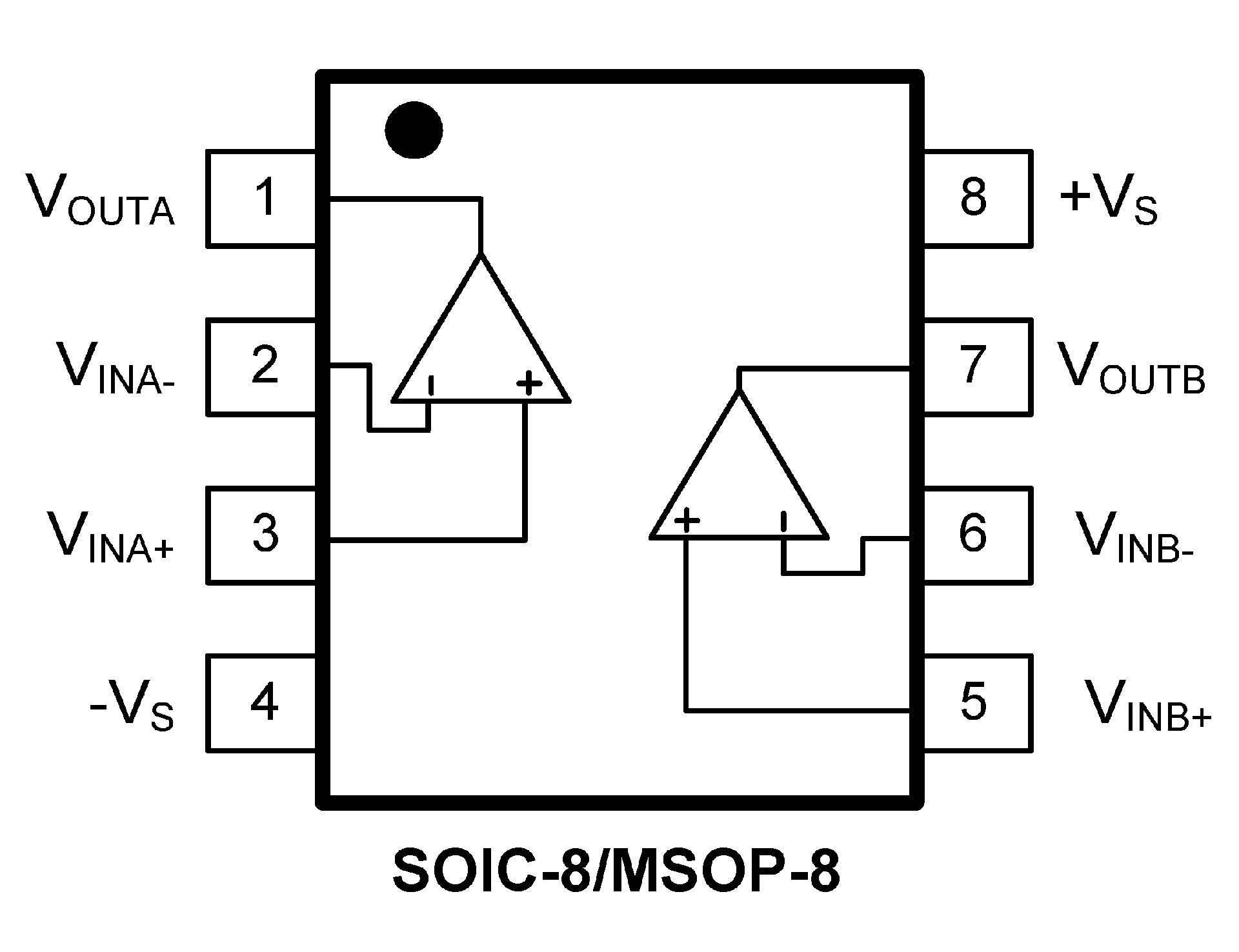

PIN CONFIGUTION
優勢替代
FEATURES
? Unmatched Price Performance
? Wide Supply Range 1.7 V to 5.5 V
? Low Supply Current 500 nA
? Good Offset Voltage 4 mV (max)
? Good TcVos 1.5 μV/°C
? Gain-Bandwidth 8 kHz
? Rail-to-Rail Input and Output (RRIO)
? Unity-Gain Stable
? Low Input Bias Current 1 pA
? EMI Hardened

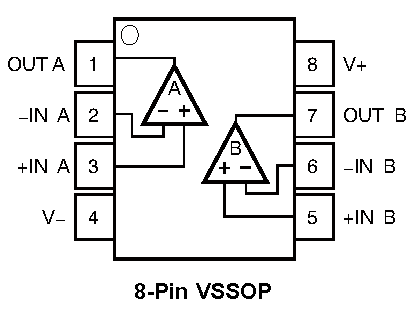

PIN CONFIGUTION
