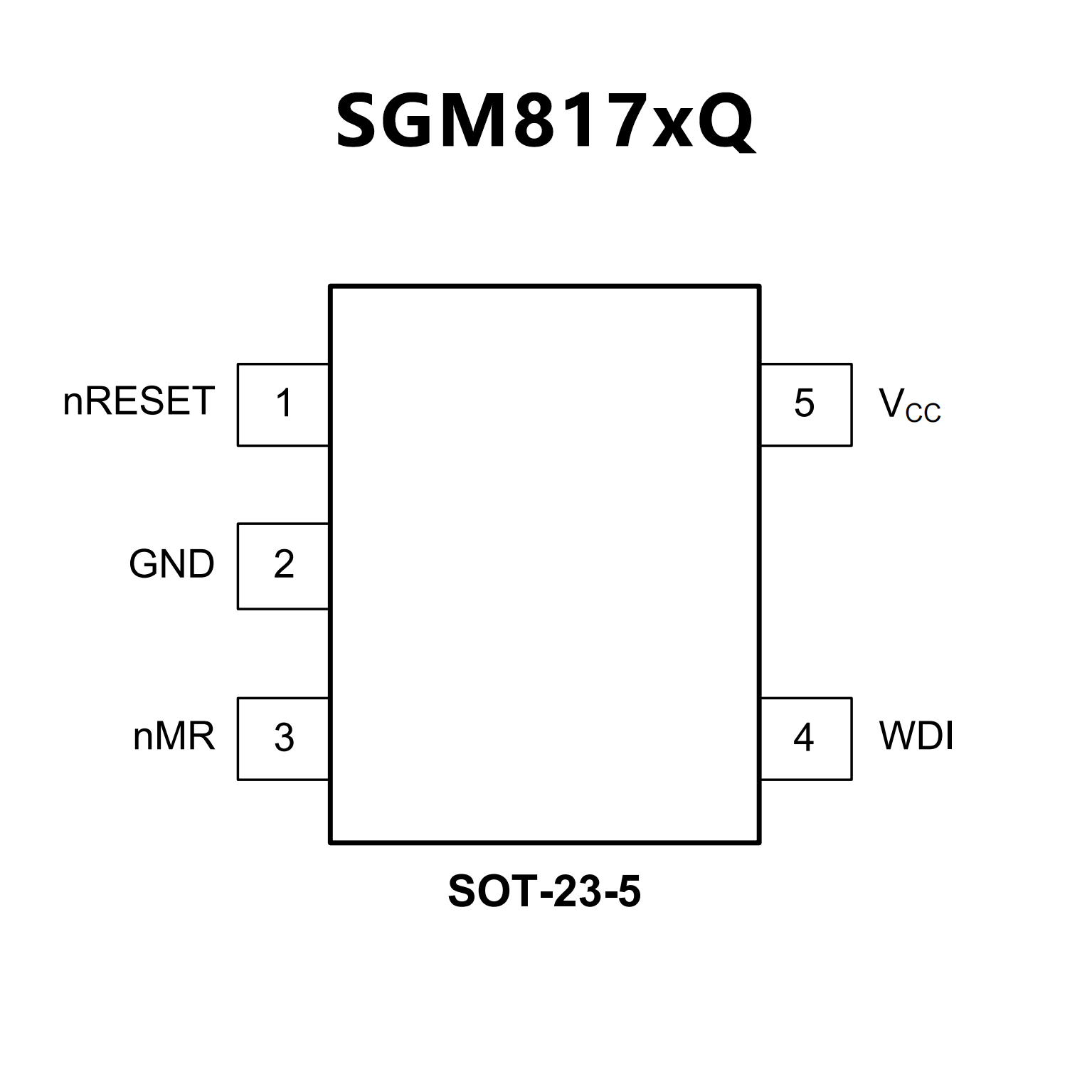

SGM817SQ.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Ultra-Low Supply Current: 0.64μA (TYP)
? Precision Supply-Voltage Monitor
4.66V for SGM817-LQ
3.10V for SGM817-TQ
2.95V for SGM817-SQ
2.64V for SGM817-RQ
? Guaranteed nRESET Valid at VCC = 1V
? Push-Pull nRESET Output
? Reset Pulse Width: 25ms (TYP)
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? Watchdog Timer with 200ms (TYP) Timeout
? Fully Specified over Temperature
? Power-Supply Transient Immunity
? Without External Components
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package
? Qualified for automotive applications
? AEC-Q100 Qualified With the Following Results:
– Device temperature grade 1: –40°C to 125°C
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
? ESD protection exceeds 2000 V Per MIL-STD-
883, Method 3015; using human body model (C =
100 pF, R = 1500 Ω)

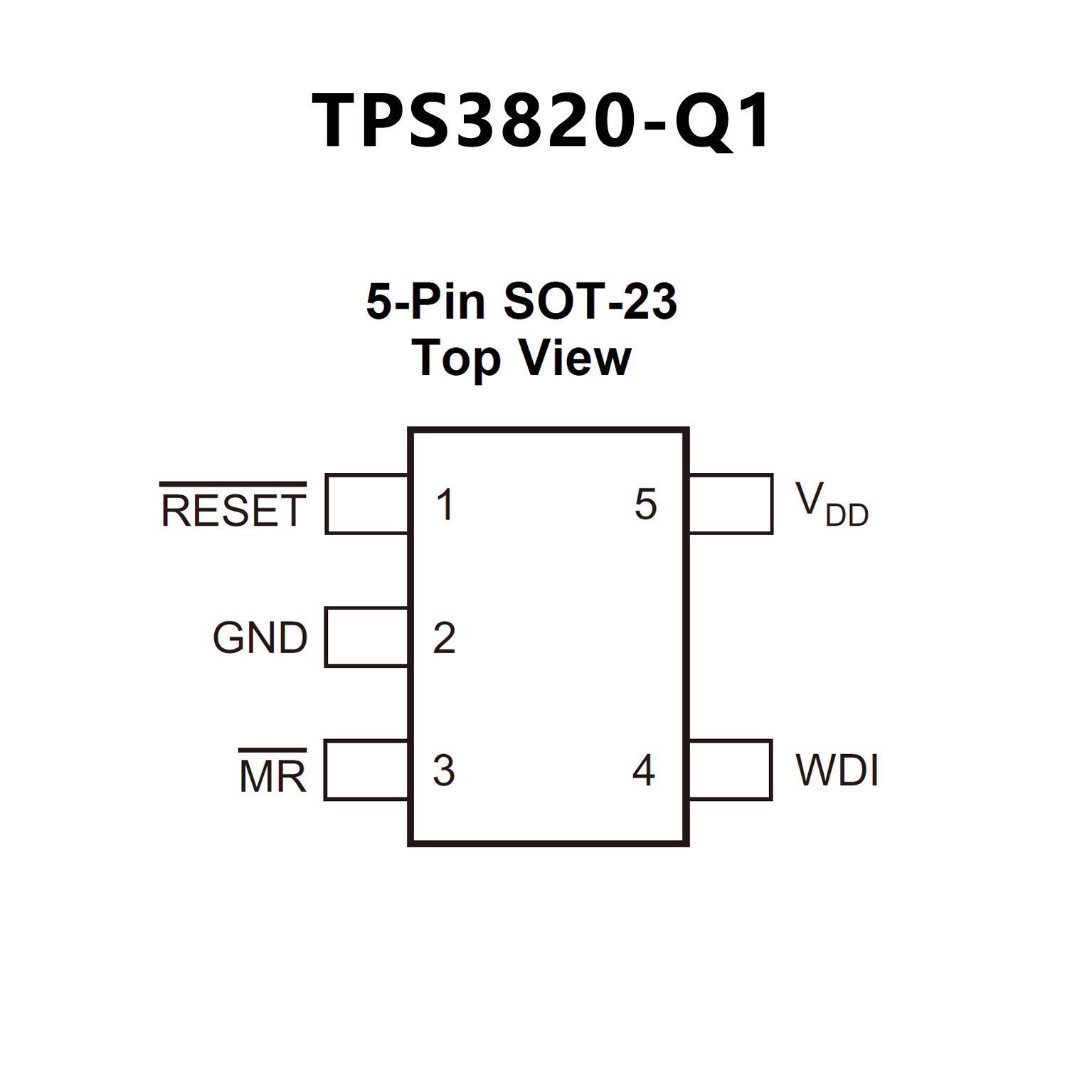

? Power-on reset generator with fixed delay time of
200 ms (TPS3823/4/5/8-xx-Q1) or 25 ms
(TPS3820-xx-Q1)
? Manual reset input (TPS3820/3/5/8-xx-Q1)
? Reset output available in active-low
(TPS3820/3/4/5-xx-Q1), Active-High (TPS3824/5-
xx-Q1), and open drain (TPS3828-xx-Q1)
? Supply voltage supervision range:
2.5 V, 3 V, 3.3 V, 5 V
? Watchdog timer (TPS3820/3/4/8-xx-Q1)
? Supply current of 15 μA (Typical)
? 5-Pin SOT-23 package
? Temperature range: ?40°C to 125°C
