SGM8197A1Q.pdf? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? Power Supply Range: 2.7V to 28V
? Quiescent Current: 550μA (TYP)
? Choice of Gains:

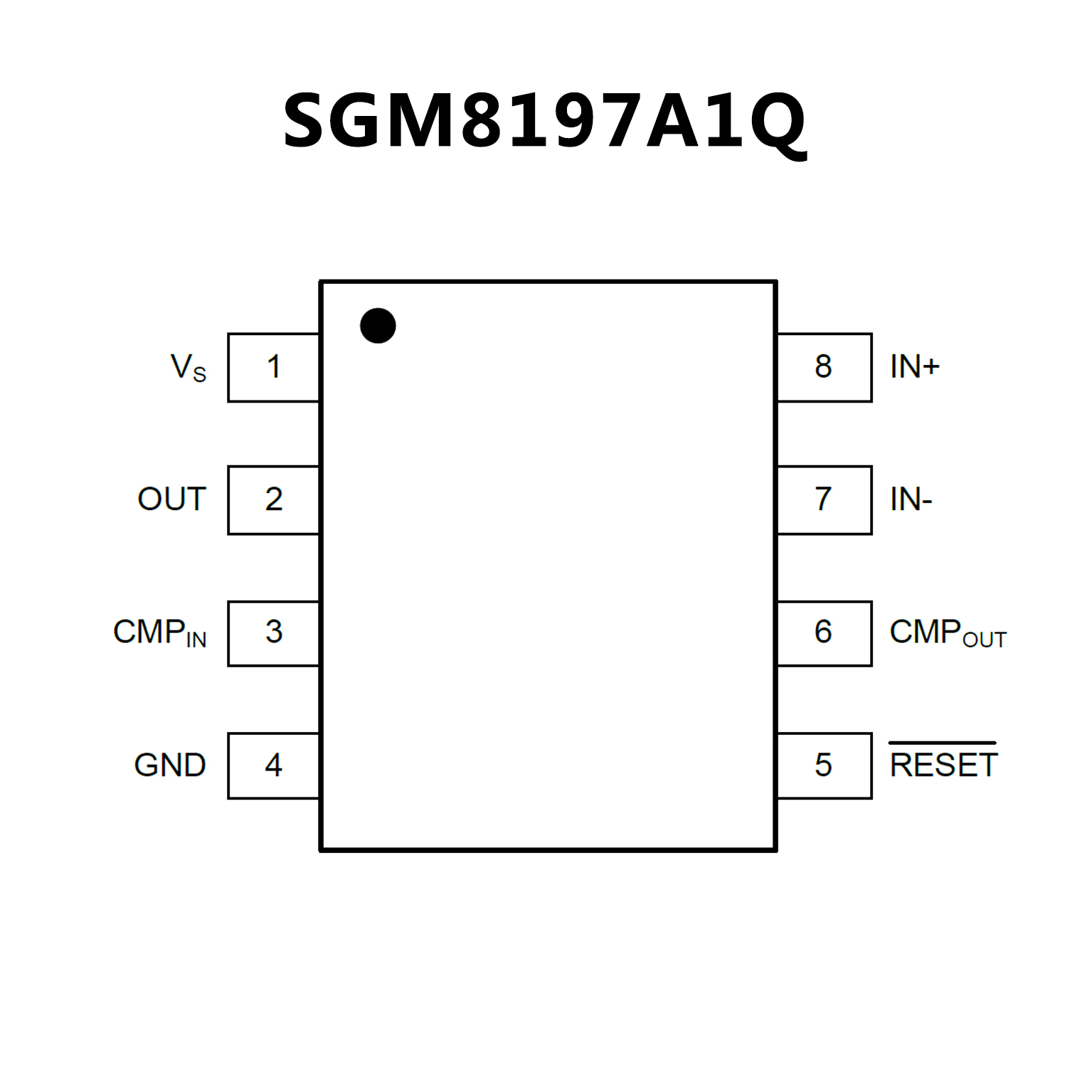

SGM8197A0Q Gain: 10V/V
SGM8197A1Q Gain: 20V/V
SGM8197A2Q Gain: 50V/V
SGM8197A3Q Gain: 100V/V
? High Accuracy: 1.4% (MAX) Gain Error
? Input Common Mode Voltage Range: -24V to 105V
? Bandwidth: 1200kHz (SGM8197A1Q)
? Voltage Reference of the Comparator: 0.6V (TYP)
? Comparator with an Open-Drain Output
? Capability of Latching on the Comparator Output
? Available in Green SOIC-8 and MSOP-8 Packages
? Qualified for Automotive Applications
Device Temperature Grade 1: –40°C to
125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C3B
Common-Mode Range: –16 V to +80 V
3.5% Max Error Over Temperature

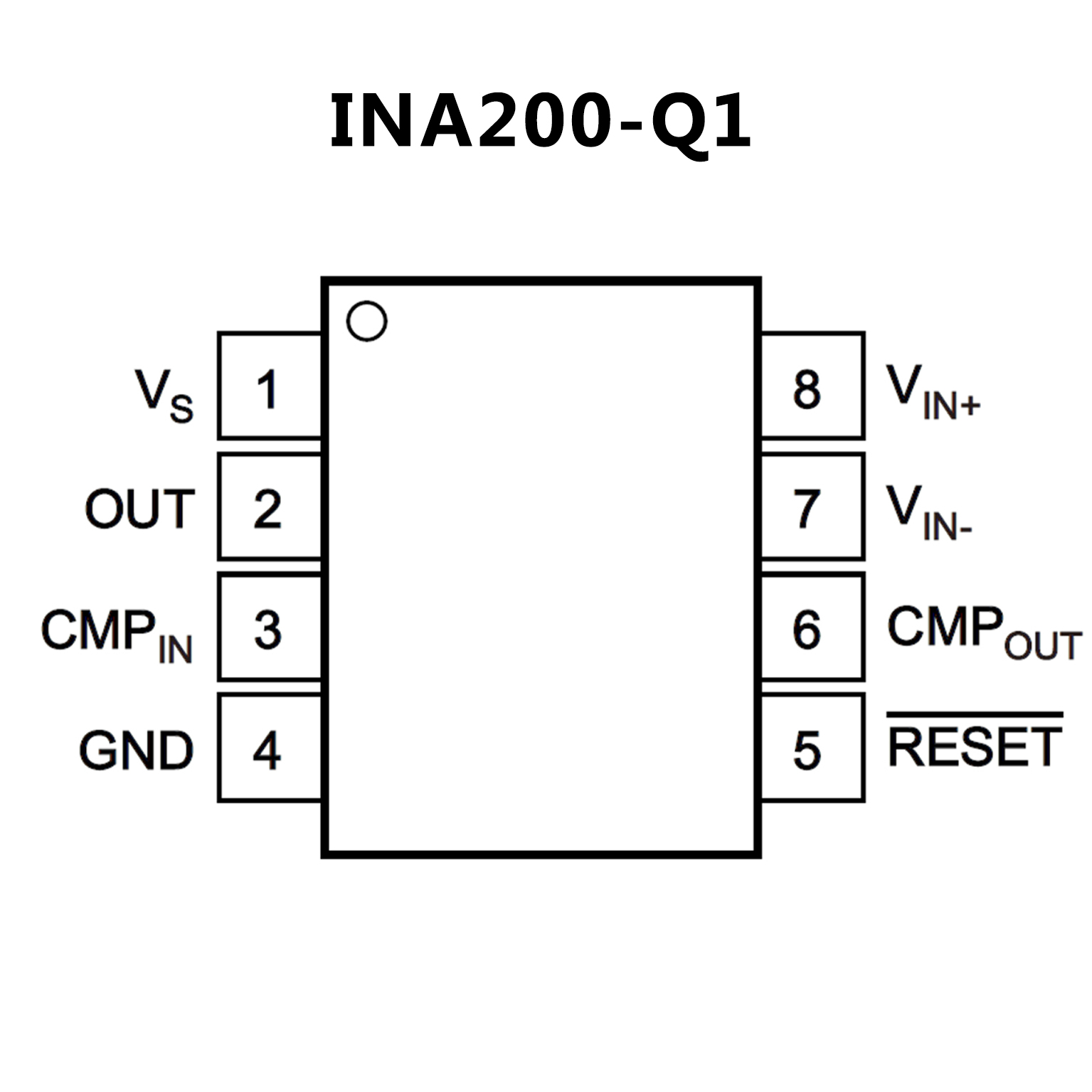

Bandwidth: 500 kHz (INA200-Q1)
Three Gain Options:
20 V/V (INA200-Q1)
50 V/V (INA201-Q1)
100 V//V (INA202-Q1)
Latching Capability
0.6-V Internal Voltage Reference
? Quiescent Current: 1800 μA (Max)
? Latch-Up Exceeds 100 mA per JESD78
? Package: VSSOP-8
