SGM8212-1XN5G.pdf? Input Offset Voltage: 1.8mV (MAX)
? Low Input Bias Current: 5pA (TYP)
? High CMRR: 98dB (TYP)
? Unity-Gain Stable
? Gain-Bandwidth Product: 2.5MHz
? Phase Margin: 60° for G = 1 and CL = 10pF
? Low Noise: 15nV/√Hz at 1kHz
? Rail-to-Rail Input and Output
? Support Single or Dual Power Supplies:
2.7V to 36V or ±1.35V to ±18V
? Low Quiescent Current: 475μA/Amplifier
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

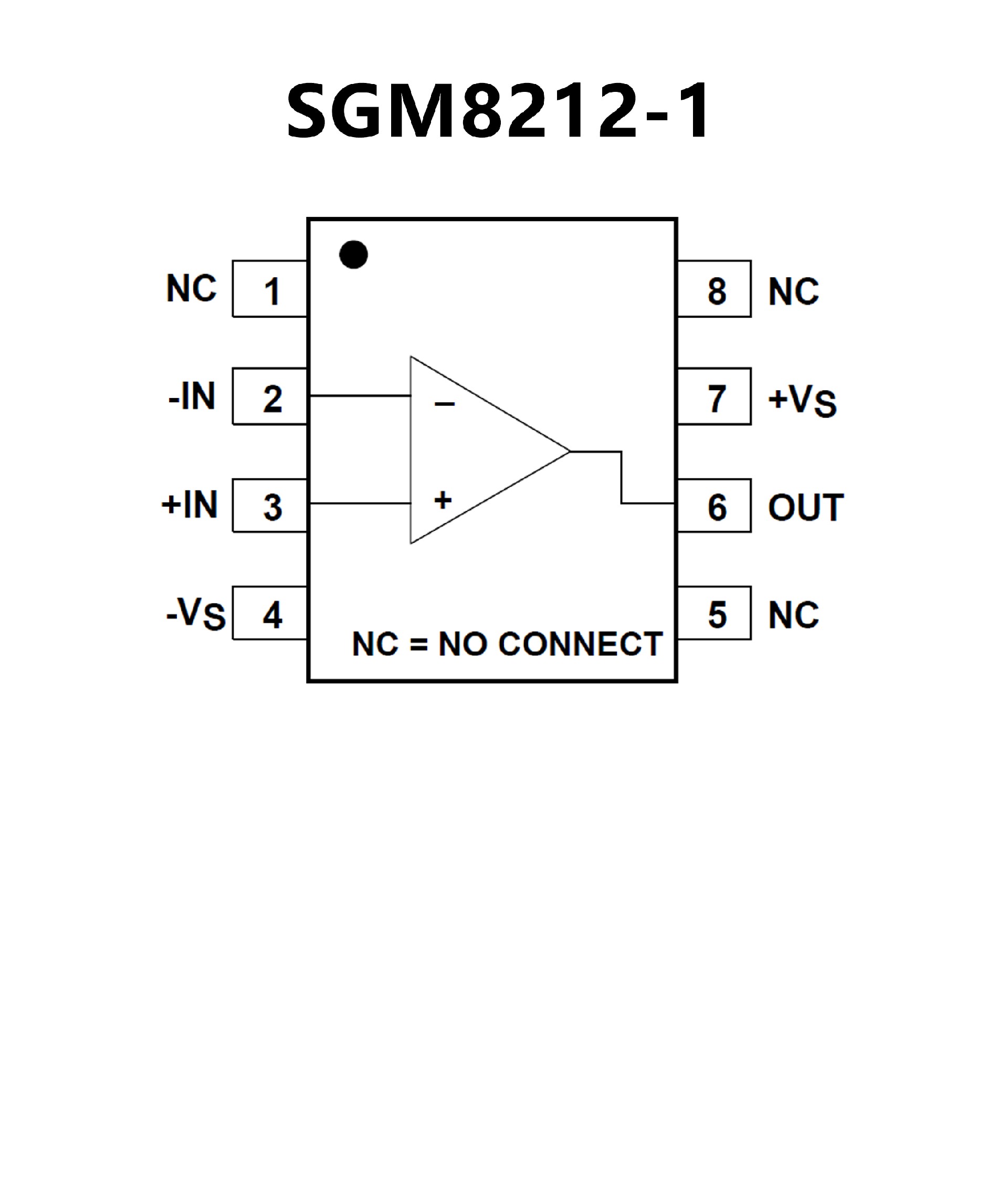

SGM8212-1 Available in Green
SOT-553-5, SOT-23-5
and SOIC-8 Packages
SGM8212-2 Available in Green SOIC-8 and
TDFN-3×3-8L Packages

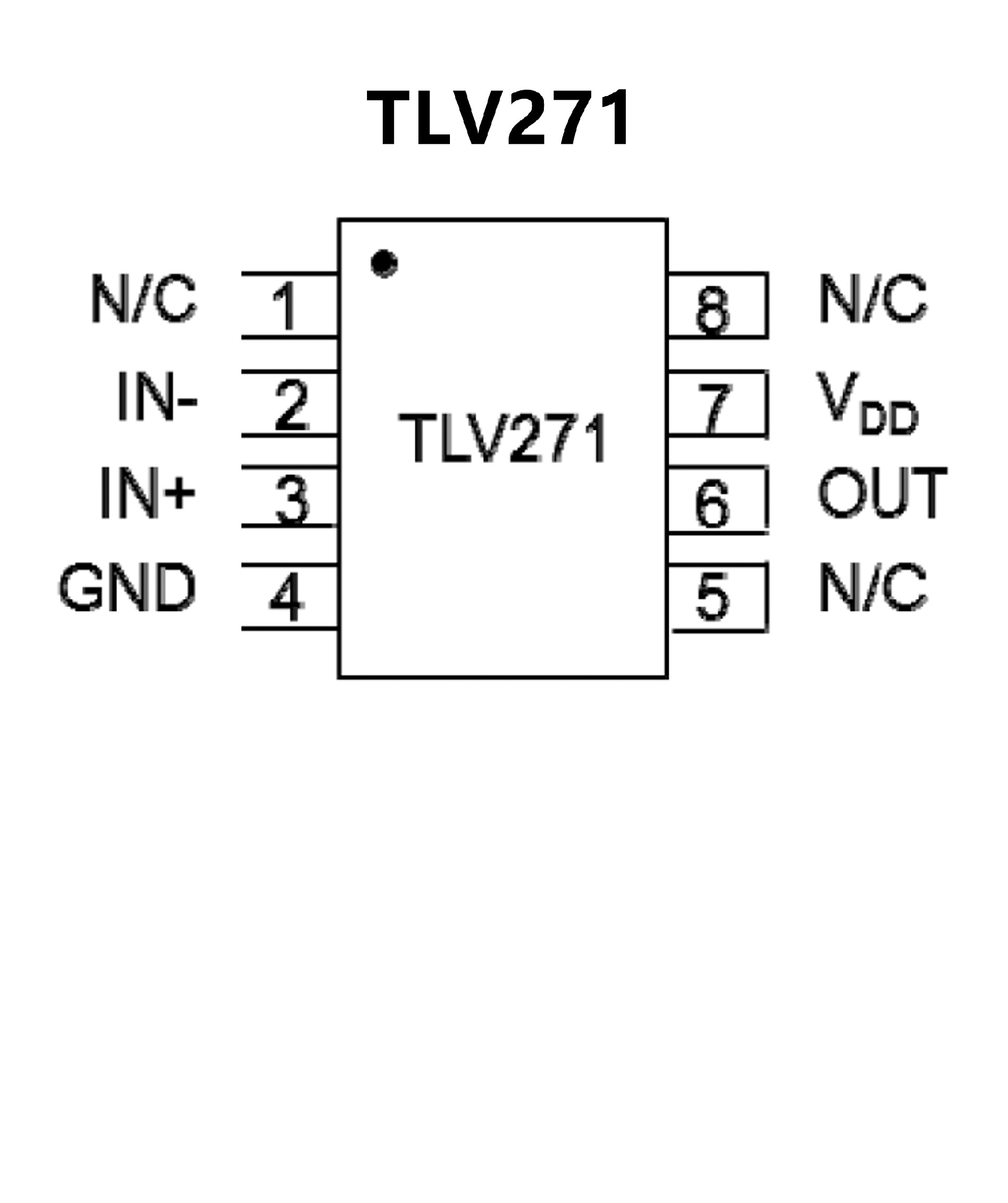

? High performance alternative to TLC27x series
? Rail to rail output
? Wide bandwidth: 2MHz
? High slew rate: 2.0 V/μs
? Wide range of supply voltages: 2.7V to 16V
? Low supply current: 550μA per channel
? Low input noise voltage: 35nV/√Hz
? Low input bias current: 1pA
? Specified temperature ranges:
0°C to +70°C: commercial grade
-40°C to +125°C: industrial grade
? Totally Lead-Free & Fully RoHS
Compliant (Notes 1 & 2)
? Halogen and Antimony Free.
“Green” Device (Note 3)
