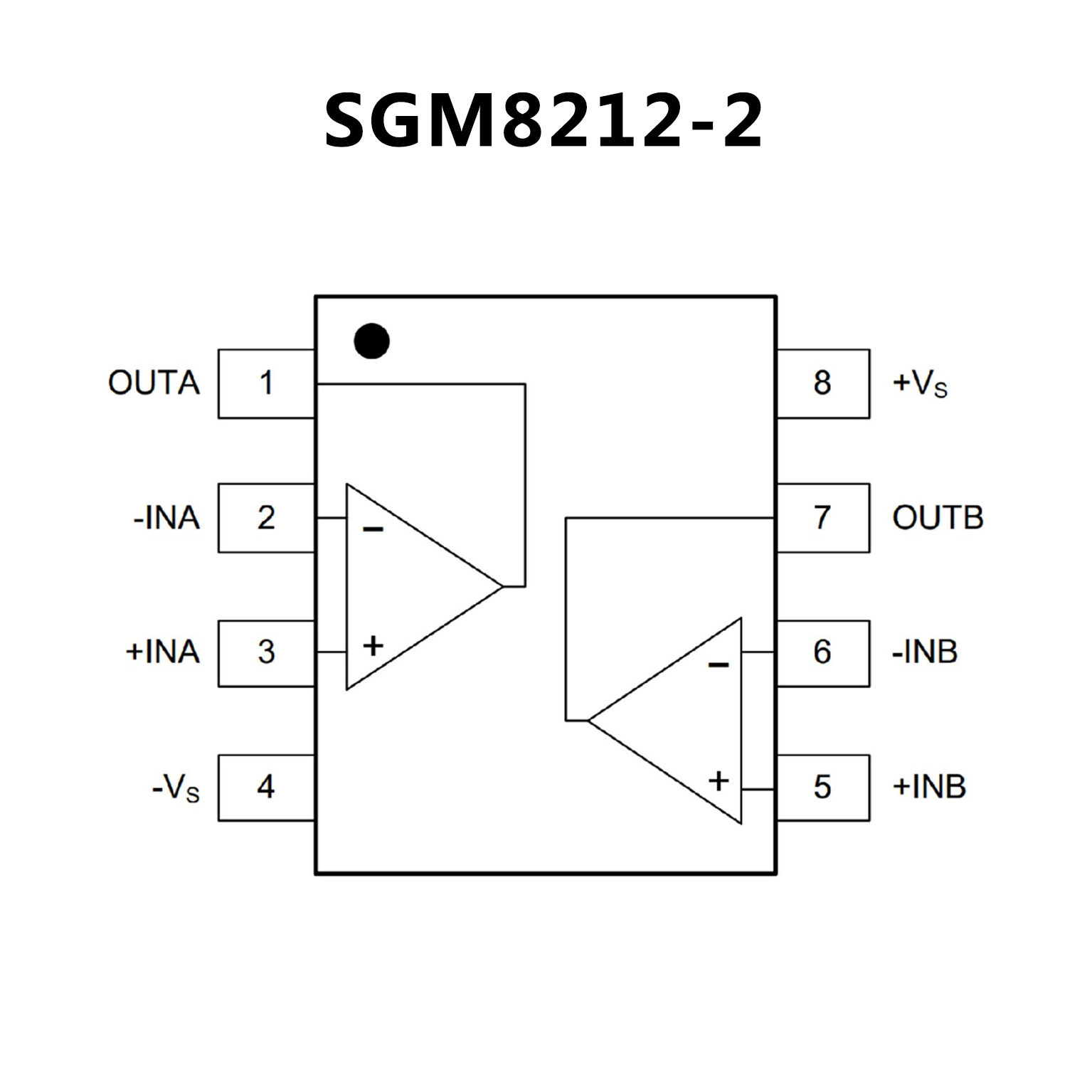

SGM8212-2.pdf? Input Offset Voltage: 1.8mV (MAX)
? Low Input Bias Current: 5pA (TYP)
? High CMRR: 98dB (TYP)
? Unity-Gain Stable
? Gain-Bandwidth Product: 2.5MHz
? Phase Margin: 60° for G = 1 and CL = 10pF
? Low Noise: 15nV/√Hz at 1kHz
? Rail-to-Rail Input and Output
? Support Single or Dual Power Supplies:
2.7V to 36V or ±1.35V to ±18V
? Low Quiescent Current: 475μA/Amplifier
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8212-1 Available in Green
SOT-553-5, SOT-23-5and SOIC-8 Packages
SGM8212-2 Available in Green
SOIC-8 andTDFN-3×3-8L Packages

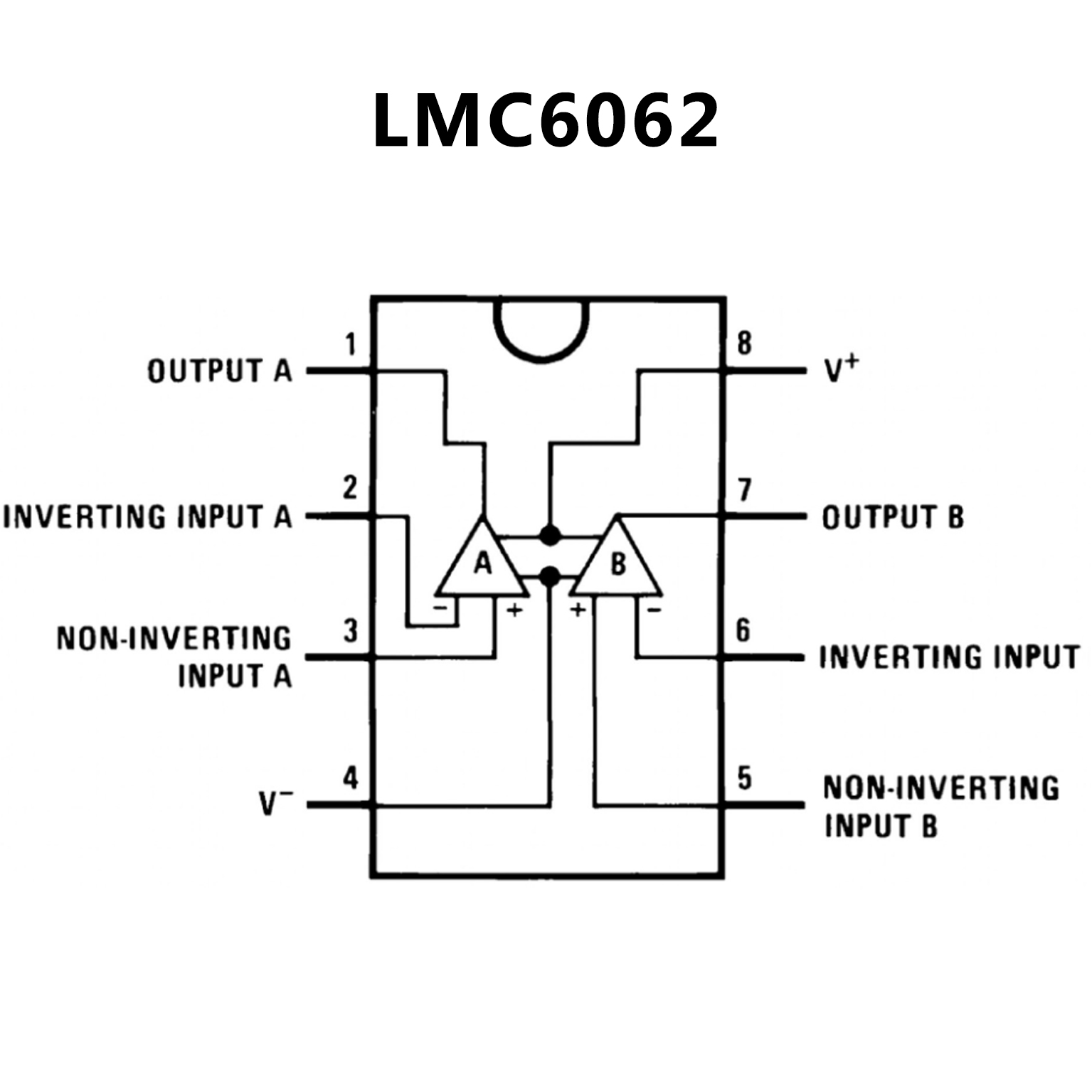

? (Typical Unless Otherwise Noted)
? Low Offset Voltage 100μV
? Ultra Low Supply current 16μA/Amplifier
? Operates from 4.5V to 15V Single Supply
? Ultra Low Input Bias Current 10fA
? Output Swing within 10mV of Supply Rail, 100k Load
? Input Common-Mode Range Includes V?
? High Voltage Gain 140dB
? Improved Latchup Immunity
