SGM8249-1.pdf? Low Offset Voltage: 10μV (MAX)
? Rail-to-Rail Output Swing
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 140dB (TYP)
? Input Voltage Noise Density: 10nV/ Hz at 1kHz
? Gain-Bandwidth Product: 8MHz
? Low Supply Current: 0.85mA/Amplifier (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

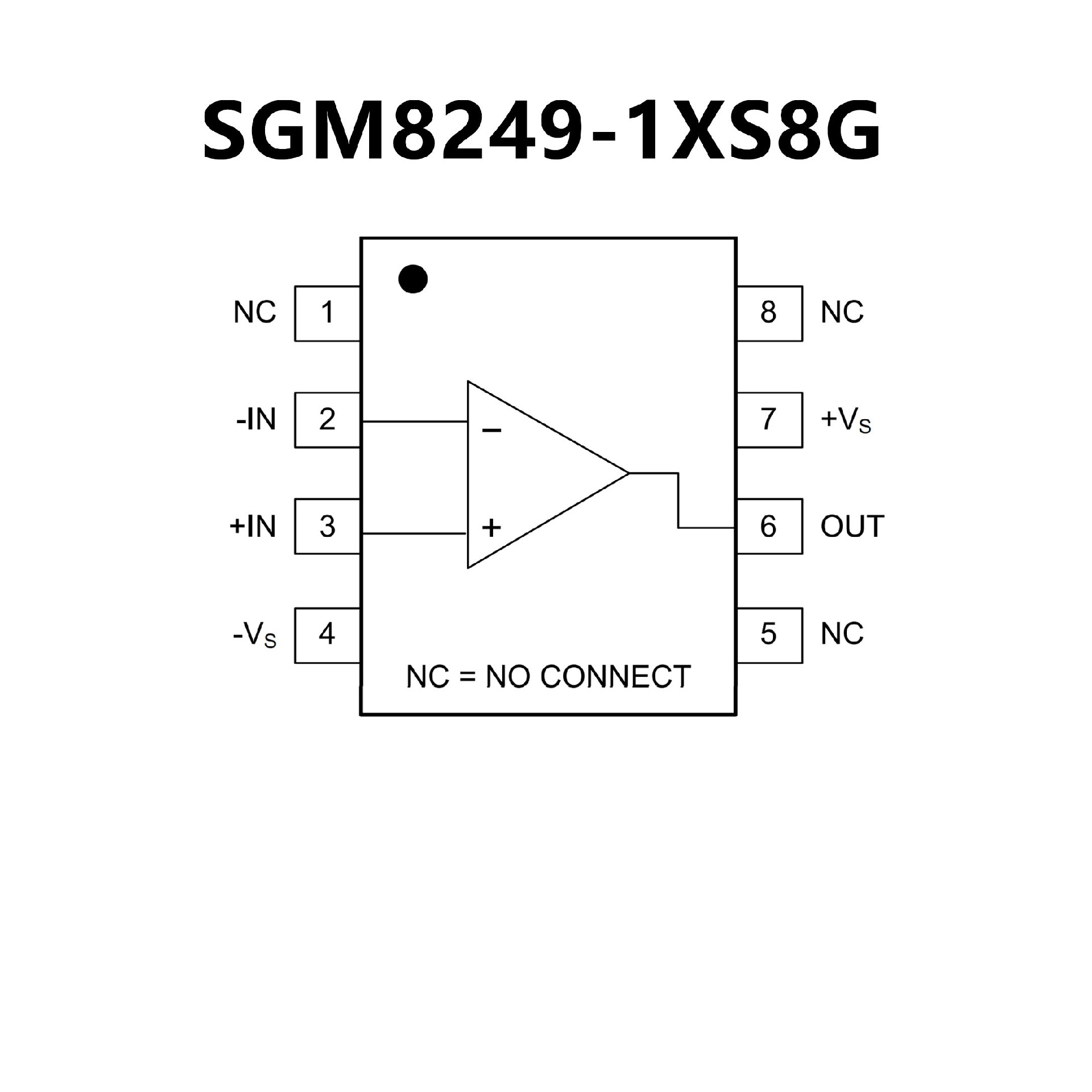

SGM8249-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8249-2 Available in a Green SOIC-8 Package

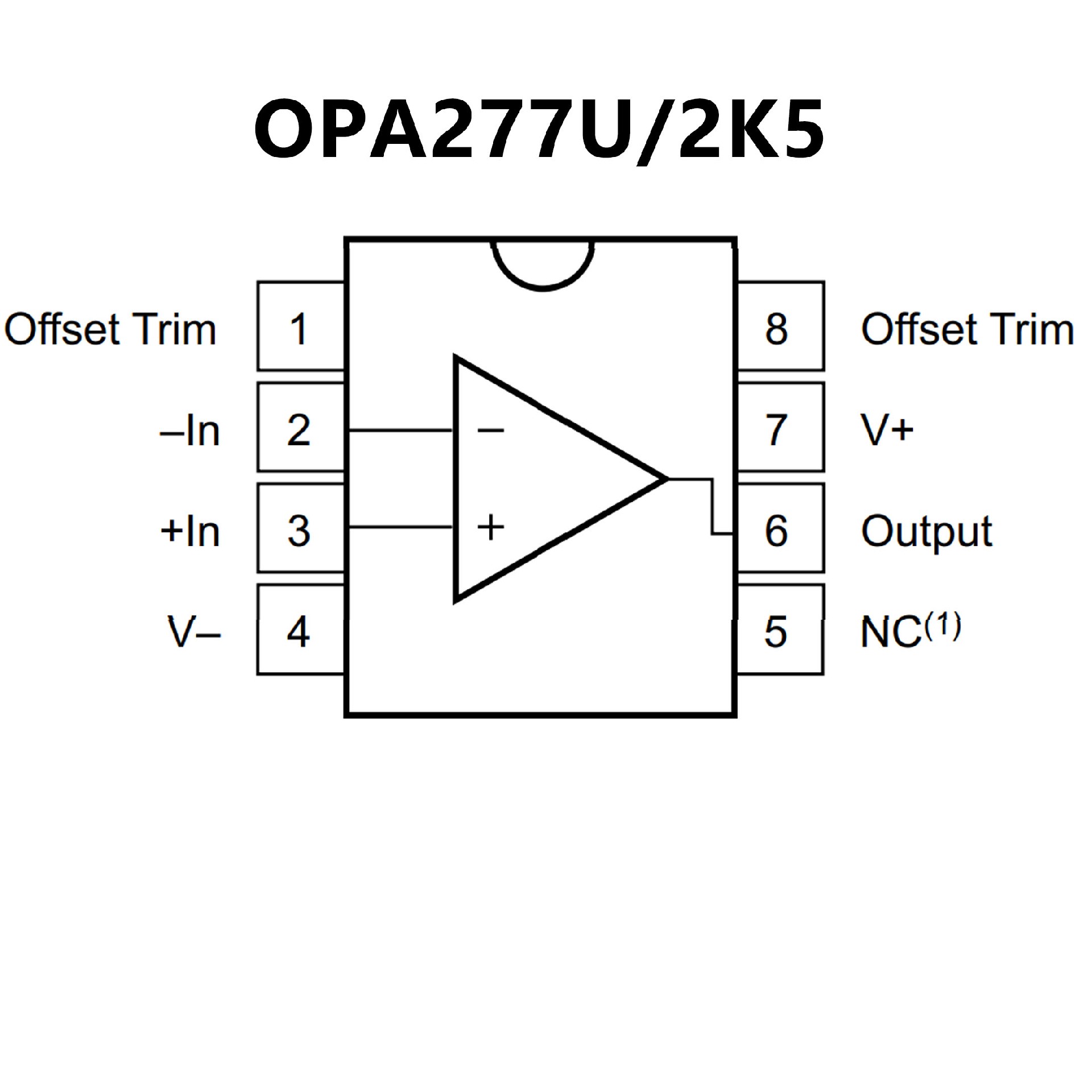

? Ultralow Offset Voltage: 10 μV
? Ultralow Drift: ±0.1 μV/°C
? High Open-Loop Gain: 134 dB
? High Common-Mode Rejection: 140 dB
? High Power Supply Rejection: 130 dB
? Low Bias Current: 1-nA maximum
? Wide Supply Range: ±2 V to ±18 V
? Low Quiescent Current: 800 μA/amplifier
? Single, Dual, and Quad Versions
? Replaces OP-07, OP-77, and OP-177
