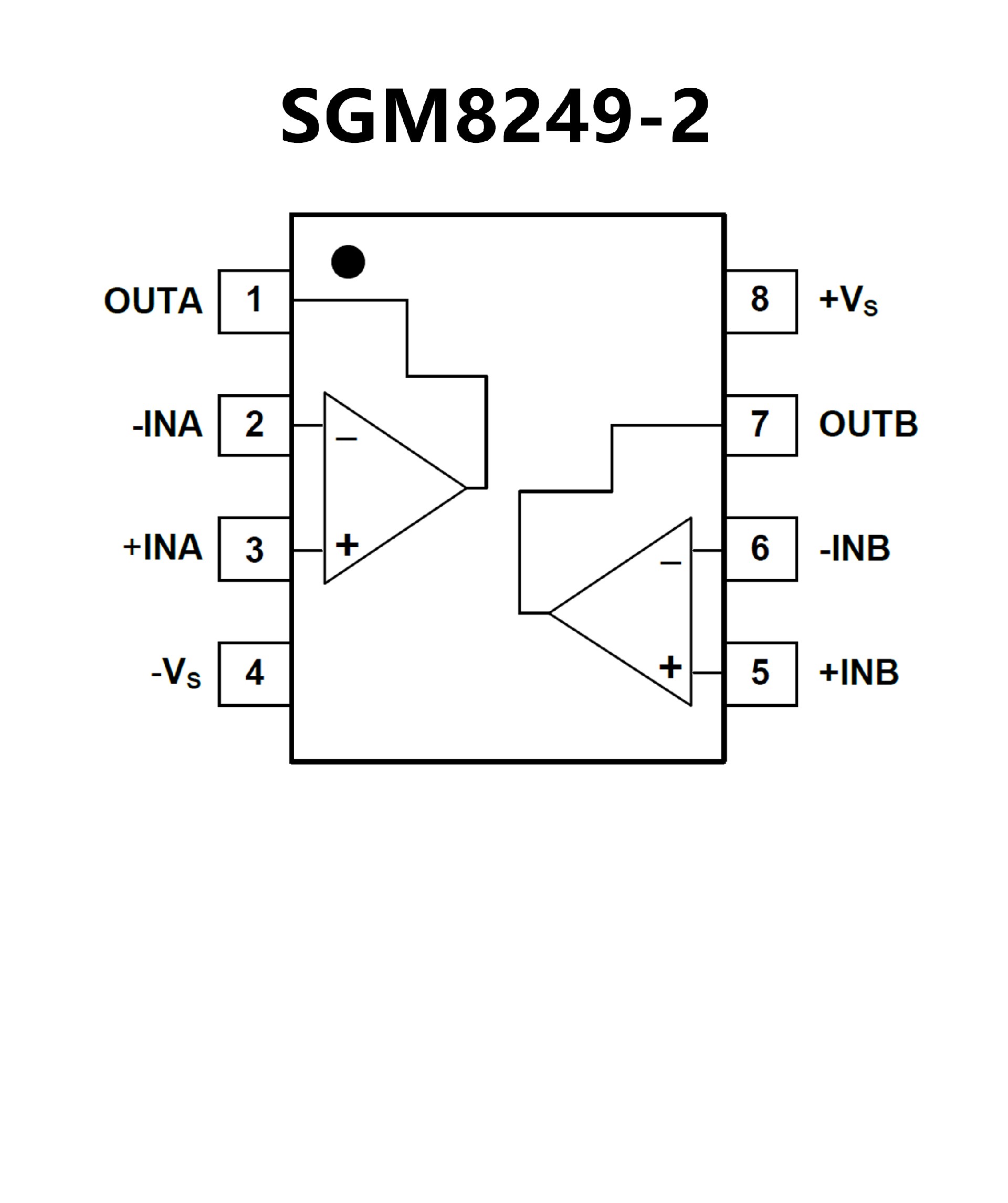

SGM8249-2.pdf? Low Offset Voltage: 10μV (MAX)
? Rail-to-Rail Output Swing
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 140dB (TYP)
? Input Voltage Noise Density: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 8MHz
? Low Supply Current: 0.85mA/Amplifier (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8249-1 Available in Green SOT-23-5
and SOIC-8 Packages
SGM8249-2 Available in a Green SOIC-8 Package

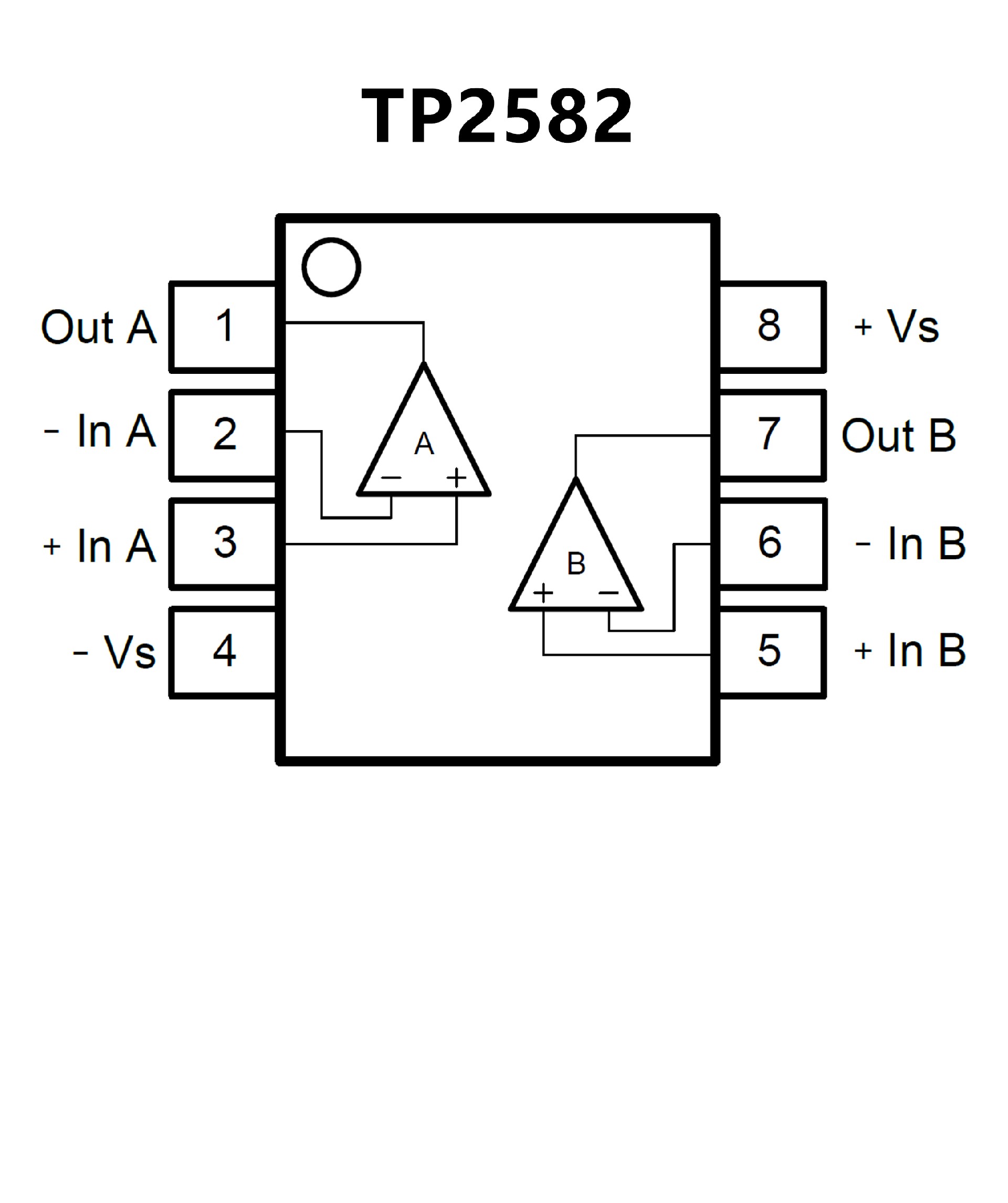

? Supply Voltage: 3V to 36V
? Differential Input Voltage
Range to Supply Rail
? Input Rail to –VS, Rail to Rail Output
? Fast Response: 10 MHz Bandwidth,
8V/μs Slew Rate,
100ns Overload Recovery
? Low Offset Voltage:
±3mV Maximum at 25°C,
±3.5mV Maximum at -40°C to 85°C
±4mV Maximum at -40°C to 125°C
? Very Low THD+N: 0.0007% at Gain = 1, 20kHz
? Excellent EMIRR: 58dB at 900MHz
? 2KV HBM, 1KV CDM, 150mA Latch Up
? –40°C to 125°C Operation
Temperature Range
