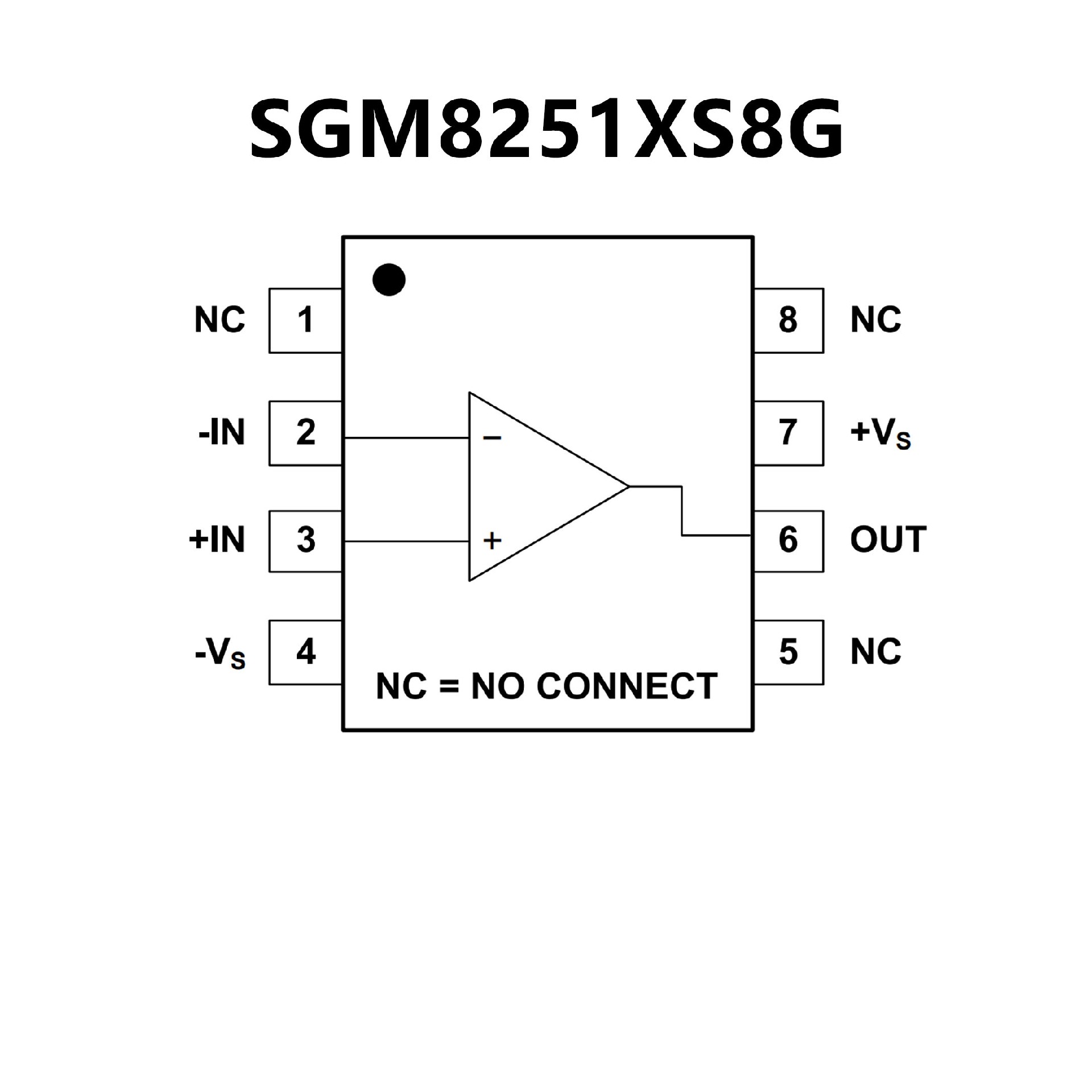

SGM8251.pdf? Low Offset Voltage: 18μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.4μVP-P
? Input Voltage Noise Density: 20nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.8MHz
? Low Supply Current: 450μA (TYP)
? Overload Recovery Time: 3μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and
MSOP-8 Packages

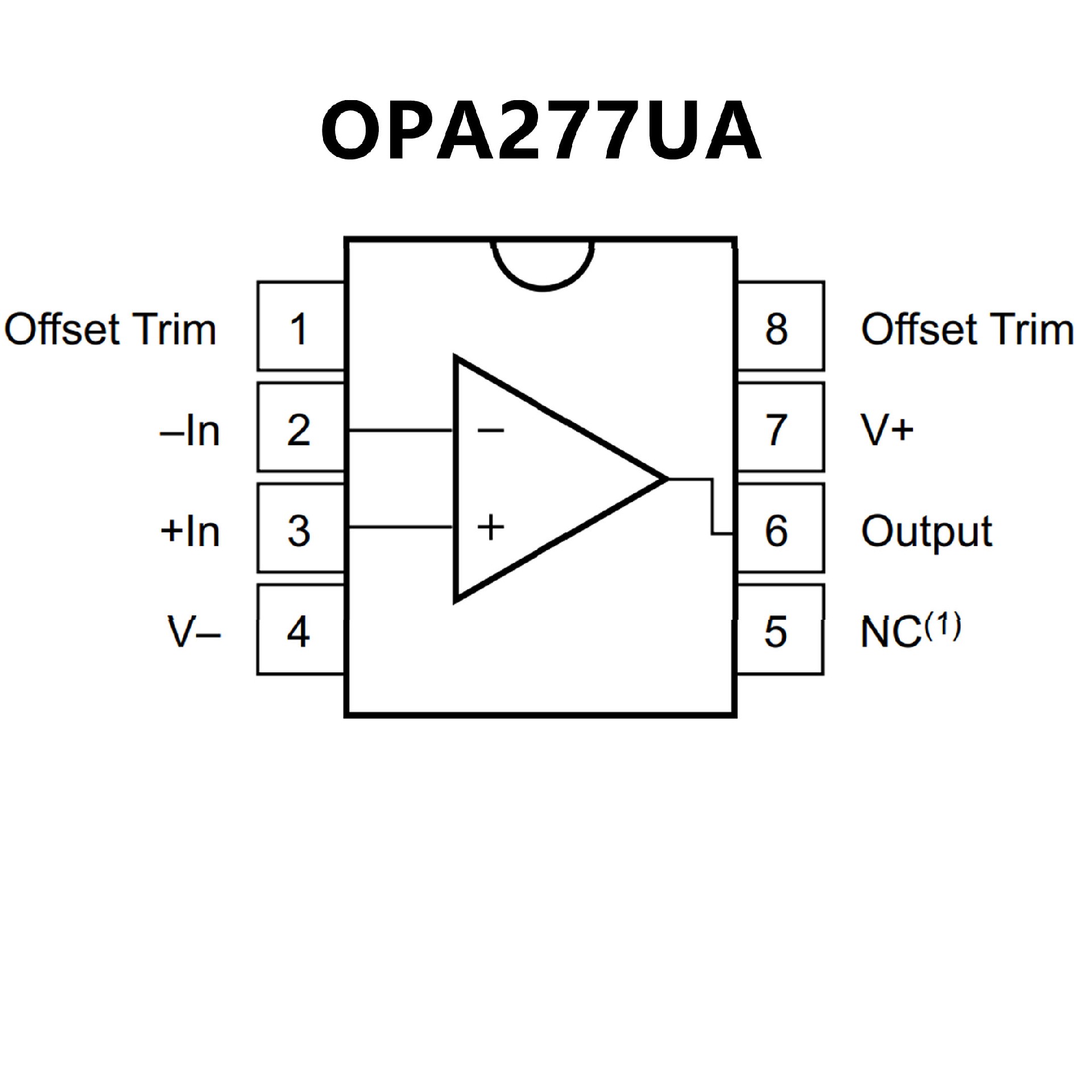

? Ultralow Offset Voltage: 10 μV
? Ultralow Drift: ±0.1 μV/°C
? High Open-Loop Gain: 134 dB
? High Common-Mode Rejection: 140 dB
? High Power Supply Rejection: 130 dB
? Low Bias Current: 1-nA maximum
? Wide Supply Range: ±2 V to ±18 V
? Low Quiescent Current: 800 μA/amplifier
? Single, Dual, and Quad Versions
? Replaces OP-07, OP-77, and OP-177
