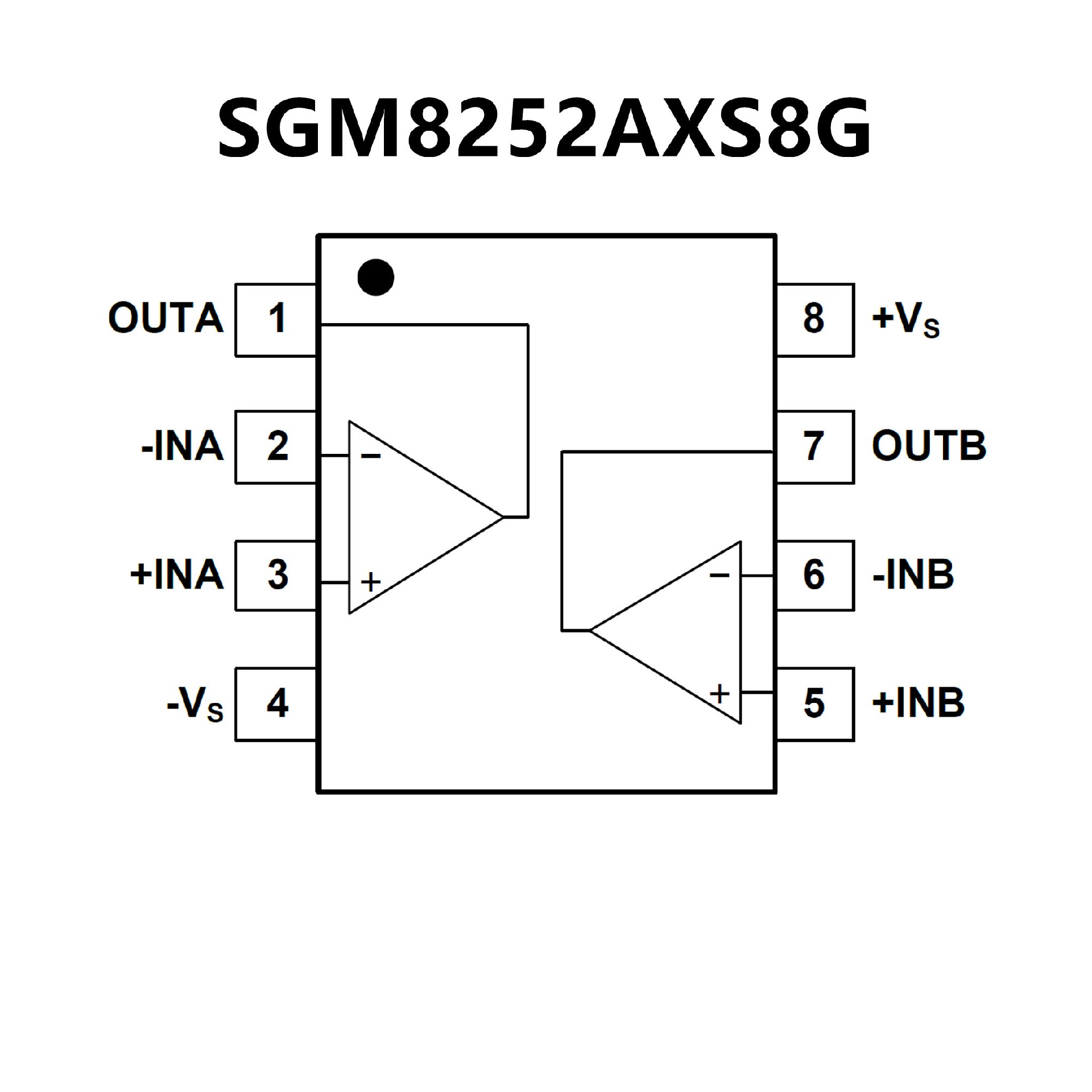

SGM8252A.pdf? Low Offset Voltage: 18μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.4μVP-P
? Input Voltage Noise Density: 20nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.8MHz
? Low Supply Current: 450μA/Amplifier (TYP)
? Overload Recovery Time: 3μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

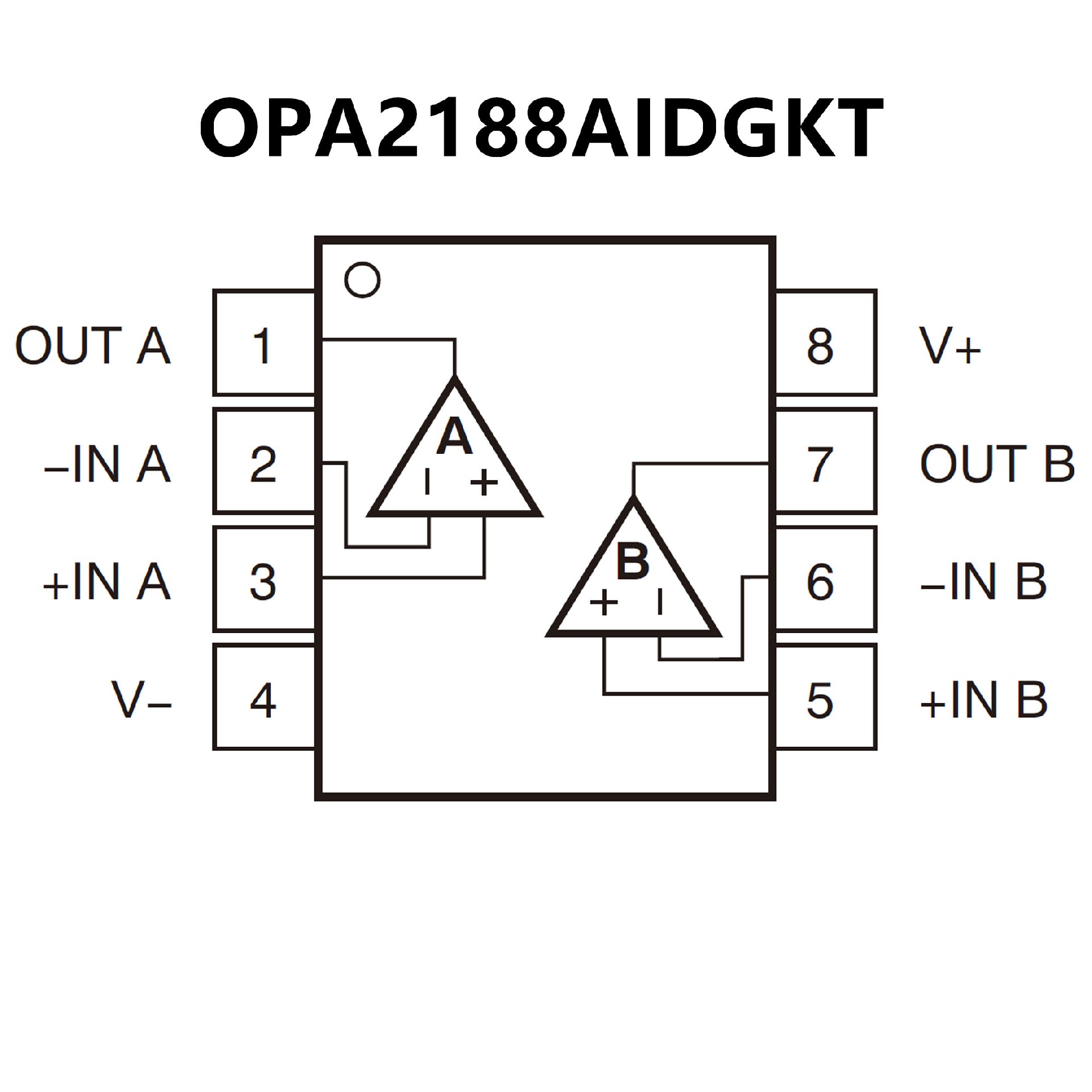

? Low Offset Voltage: 25μV (max)
? Zero-Drift: 0.03 μV/°C
? Low Noise: 8.8 nV/√Hz
0.1-Hz to 10-Hz Noise: 0.25 μVPP
? Excellent DC Precision:
PSRR: 142 dB
CMRR: 146 dB
Open-Loop Gain: 136 dB
? Gain Bandwidth: 2 MHz
? Quiescent Current: 475 μA (max)
? Wide Supply Range: ±2 V to ±18 V
? Rail-to-Rail Output: Input Includes Negative Rail
? RFI Filtered Inputs
