3MHz, High Voltage, High Precision, Low Noise Rail-to-Rail Output Operational Amplifier.
SGM8252
SGM8252.pdf
SGM8252.pdfFEATURES
? Low Offset Voltage: 24μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Voltage Gain: 135dB (TYP)
? PSRR: 145dB (TYP)
? CMRR: 125dB (TYP)
? 0.1Hz to 10Hz Noise: 1μVP-P
? 56nV/ Hz Voltage Noise Density at 1kHz
? Gain-Bandwidth Product: 3MHz
? Low Supply Current: 480μA/Amplifier (TYP)
? Overload Recovery Time: 3μs (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

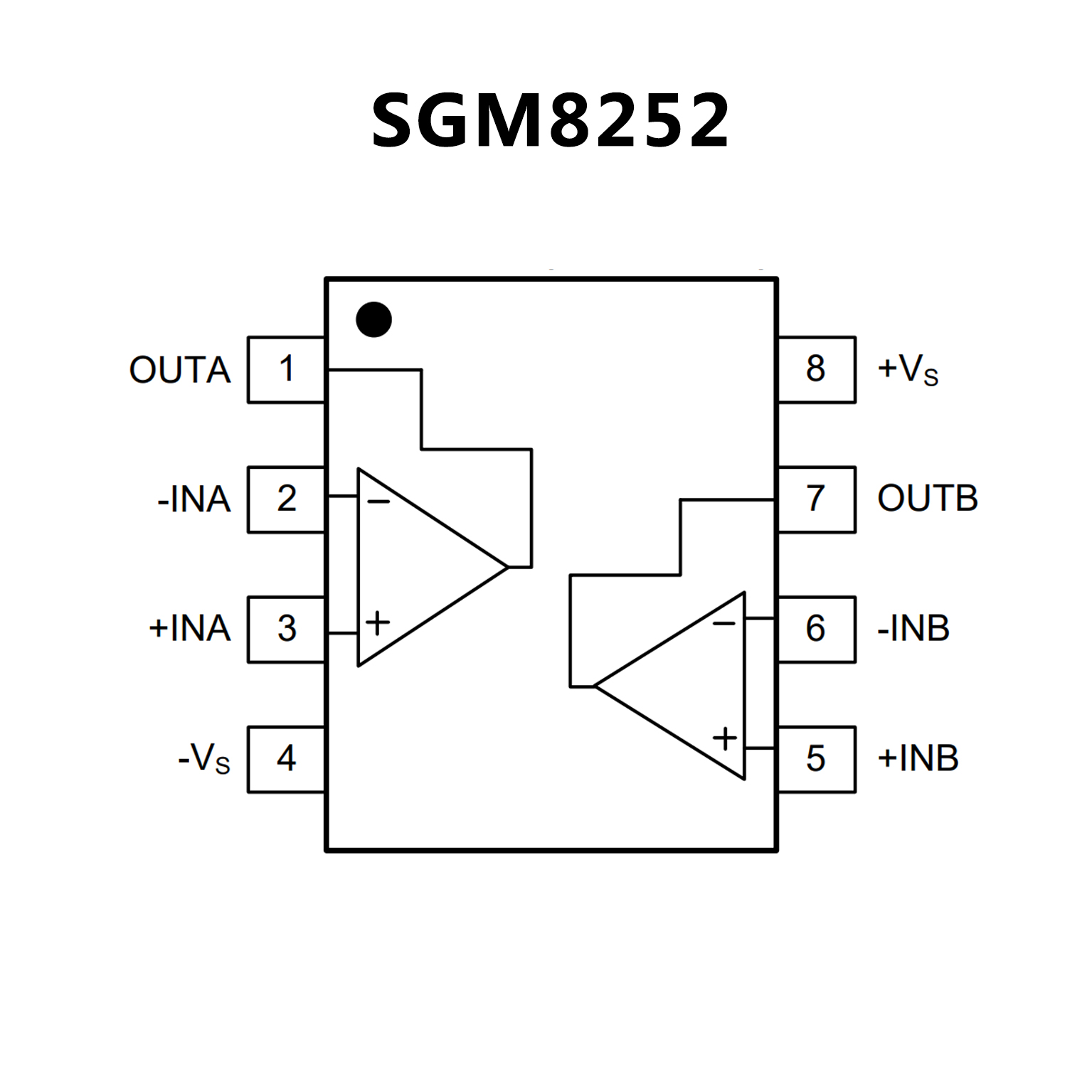

PIN CONFIGUTION
優勢替代
FEATURES
? high DC Precision
? 100 μV Max Offset Voltage
? 1.5 μV/°C Max Offset Drift
? 200 pA Max Input Bias Current
? 0.5μV p-p Voltage Noise, 0.1 Hz to 10 Hz
? 750 μA Supply Current
? Available in 8-Lead PDlP
? and Surface-Mount (SOIC) Packages
? Available in Tape and Reel in Accordance with
? EIA-481A Standard

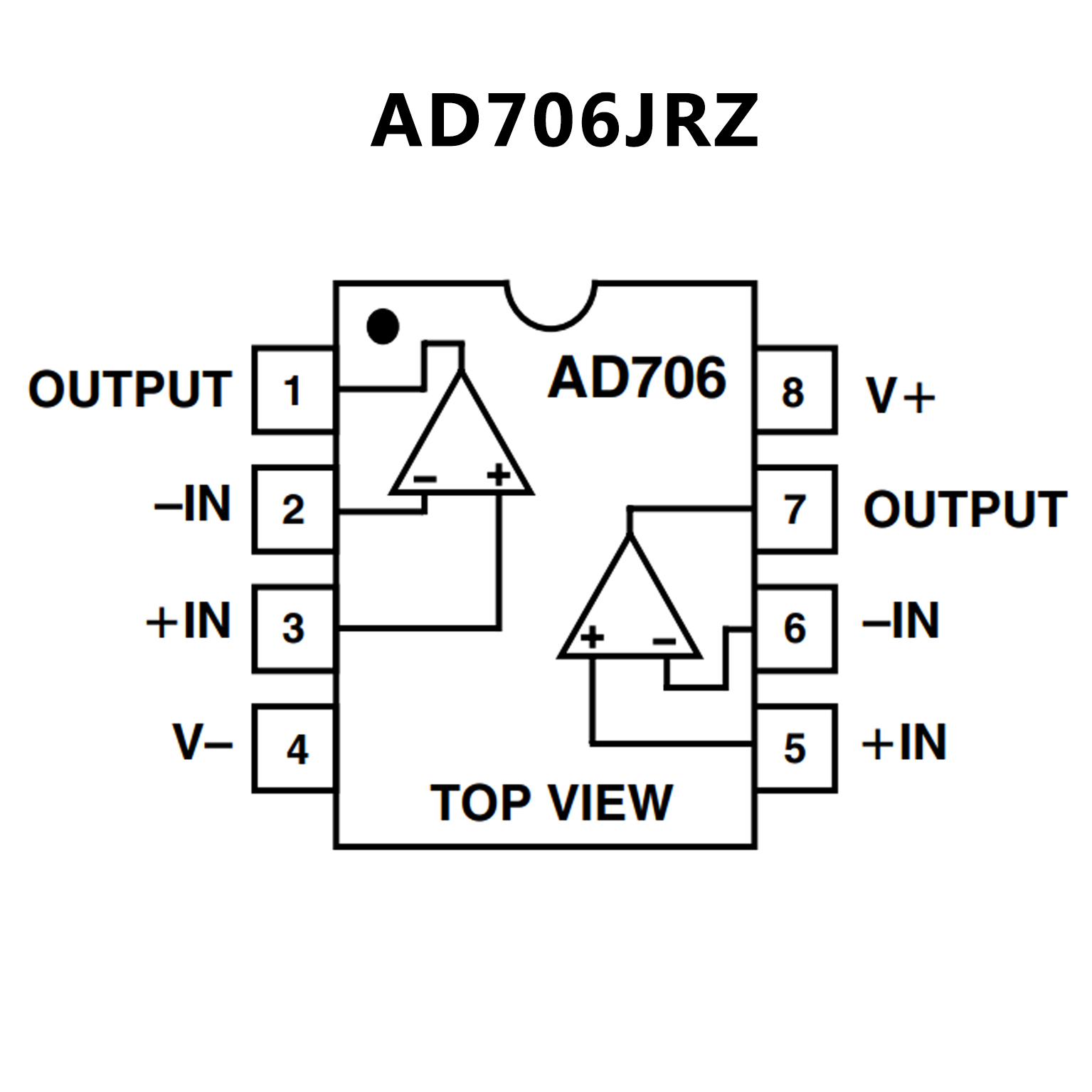

PIN CONFIGUTION
