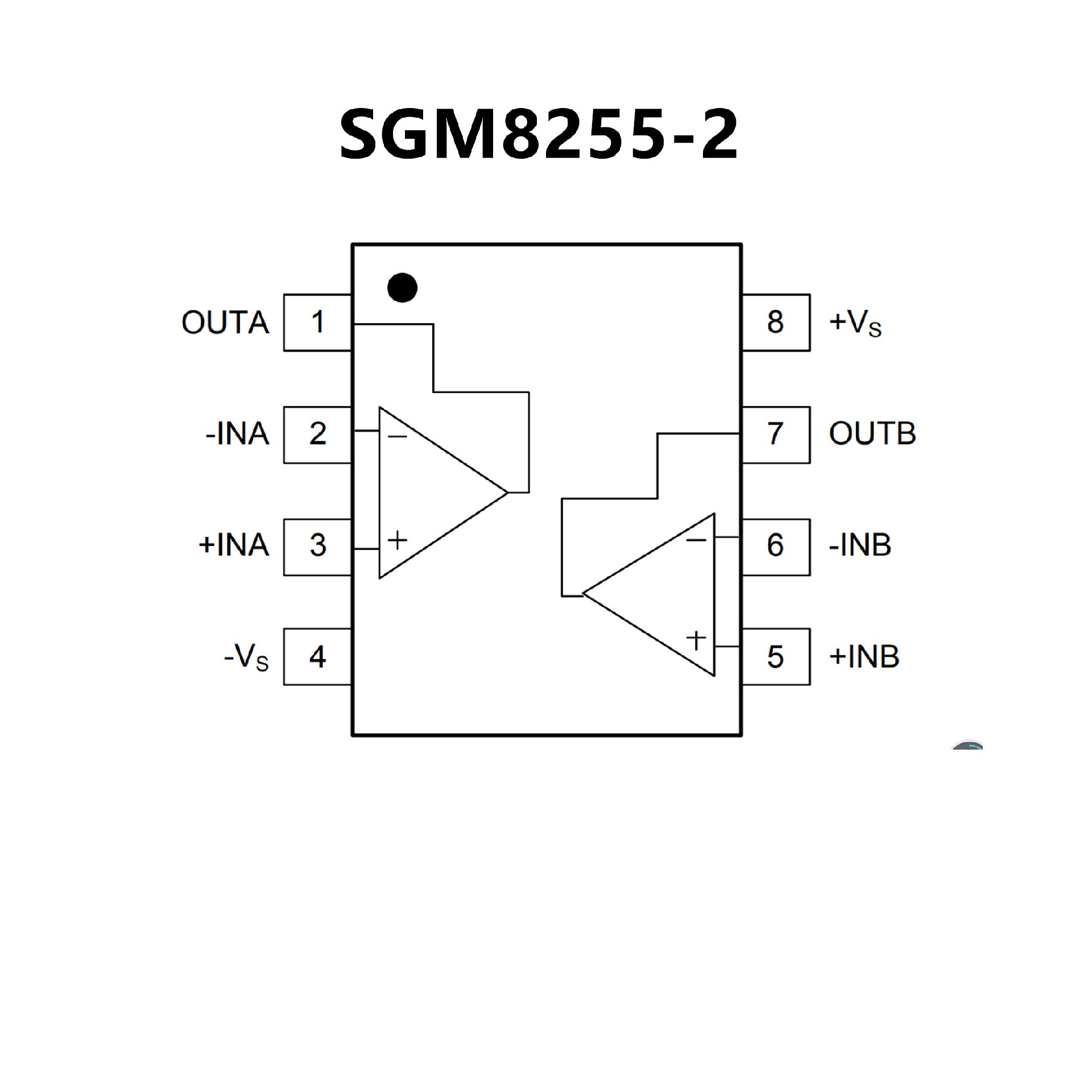

SGM8255-2.pdf? Low Offset Voltage: 10μV (TYP)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Voltage Gain: 150dB (TYP) at +5V
? PSRR: 155dB (TYP)
? CMRR: 120dB (TYP)
? 0.5μVP-P Noise at 0.1Hz to 10Hz
? 28nV/ Hz Voltage Noise Density at 1kHz
? 9MHz GBP
? Low Supply Current: 835μA/Amplifier (TYP)
? Overload Recovery Time: 0.5μs (at VS = +5V)
? -40℃ to +125℃ Operating Temperature Range
? SGM8255-1/-2/-3 Available in Green SOIC-8Package

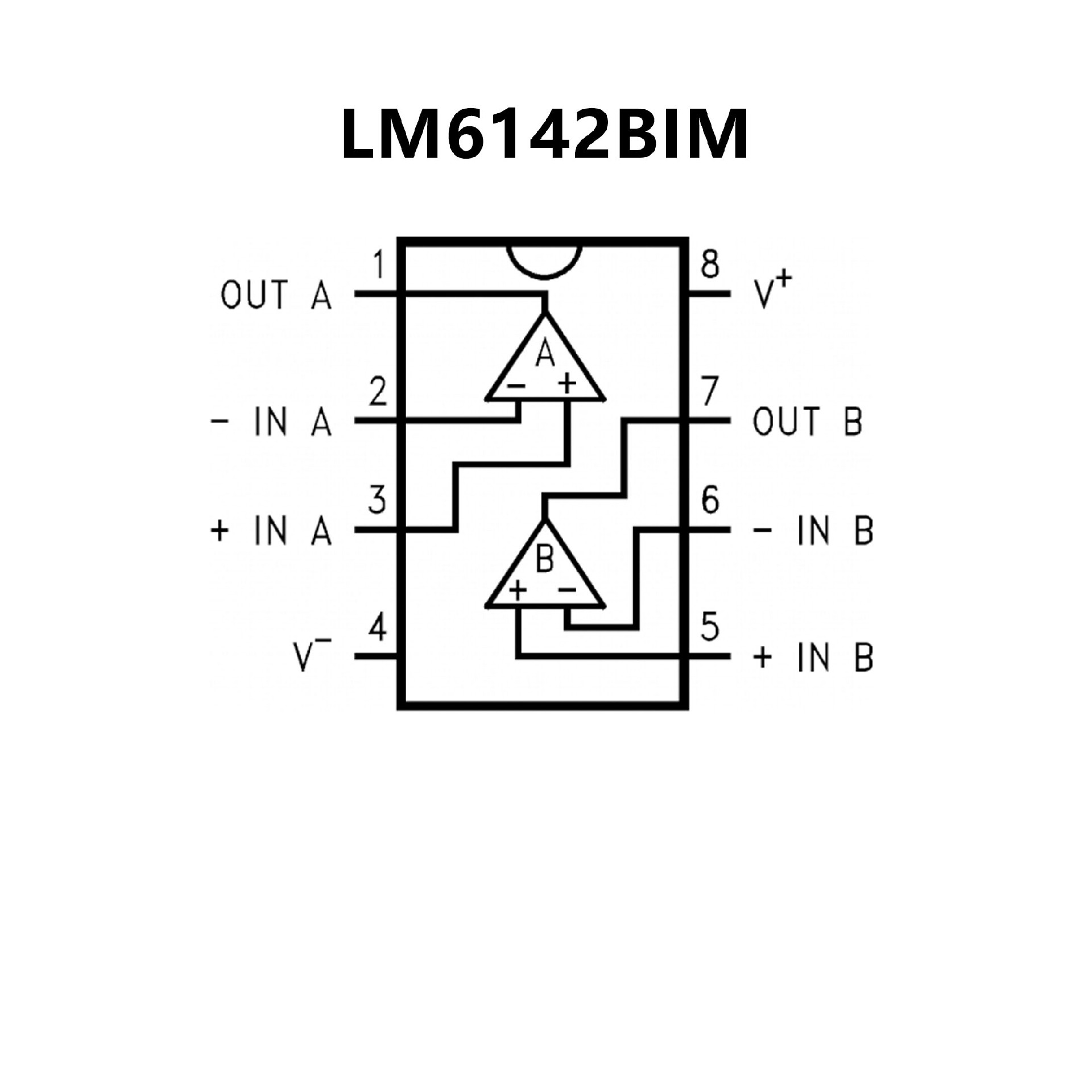

? At VS = 5V. Typ Unless Noted. 2
? Rail-to-rail Input CMVR ?0.25V to 5.25V
? Rail-to-Rail Output Swing 0.005V to 4.995V
? Wide Gain-Bandwidth: 17MHz at 50kHz (typ)
? Slew Rate:
Small Signal, 5V/μs
Large Signal, 30V/μs
? Low Supply Current 650μA/Amplifier
Wide Supply Range 1.8V to 24V
? CMRR 107dB
? Gain 108dB with RL = 10k
? PSRR 87dB
