SGM8255A-1.pdf? Low Offset Voltage: 25μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.2μVP-P
? Input Voltage Noise Density: 12nV/Hz at 1kHz
? Gain-Bandwidth Product: 8.5MHz
? Low Supply Current: 0.85mA/Amplifier (TYP)
? Overload Recovery Time: 0.7μs

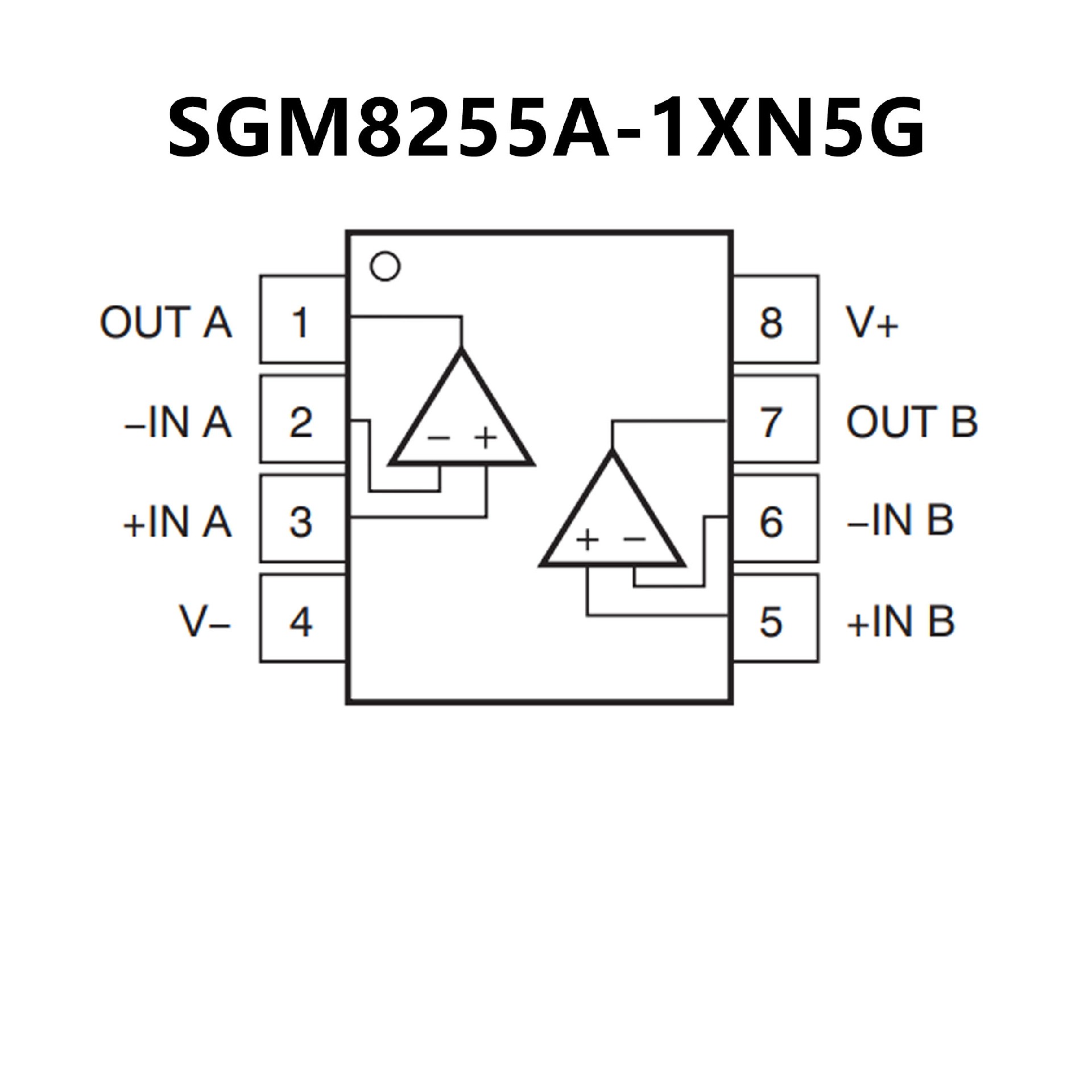

SGM8255A-1 Available in Green SOT-23-5,
SOIC-8 and MSOP-8 Packages
SGM8255A-2 Available in Green SOIC-8
andMSOP-8 Packages
? Wide Supply Range: +4.5V to +36V, ±2.25V to ±18V
? Low Offset Voltage: ±0.2mV
? Low Offset Drift: ±0.3μV/°C
? Gain Bandwidth: 10MHz
? Low Input Bias Current: ±8pA
? Low Quiescent Current: 1.6 mA per Amplifier
? Low Noise: 7 nV/√Hz
? EMI and RFI Filtered Inputs
? Input Range Includes the Negative Supply
? Input Range Operates to Positive Supply
? Rail-to-Rail Output
