SGM8255A-2.pdf? Low Offset Voltage: 25μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.2μVP-P
? Input Voltage Noise Density: 12nV/Hz at 1kHz
? Gain-Bandwidth Product: 8.5MHz
? Low Supply Current: 0.85mA/Amplifier (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8255A-1 Available in Green SOT-23-5,
SOIC-8 and MSOP-8 Packages

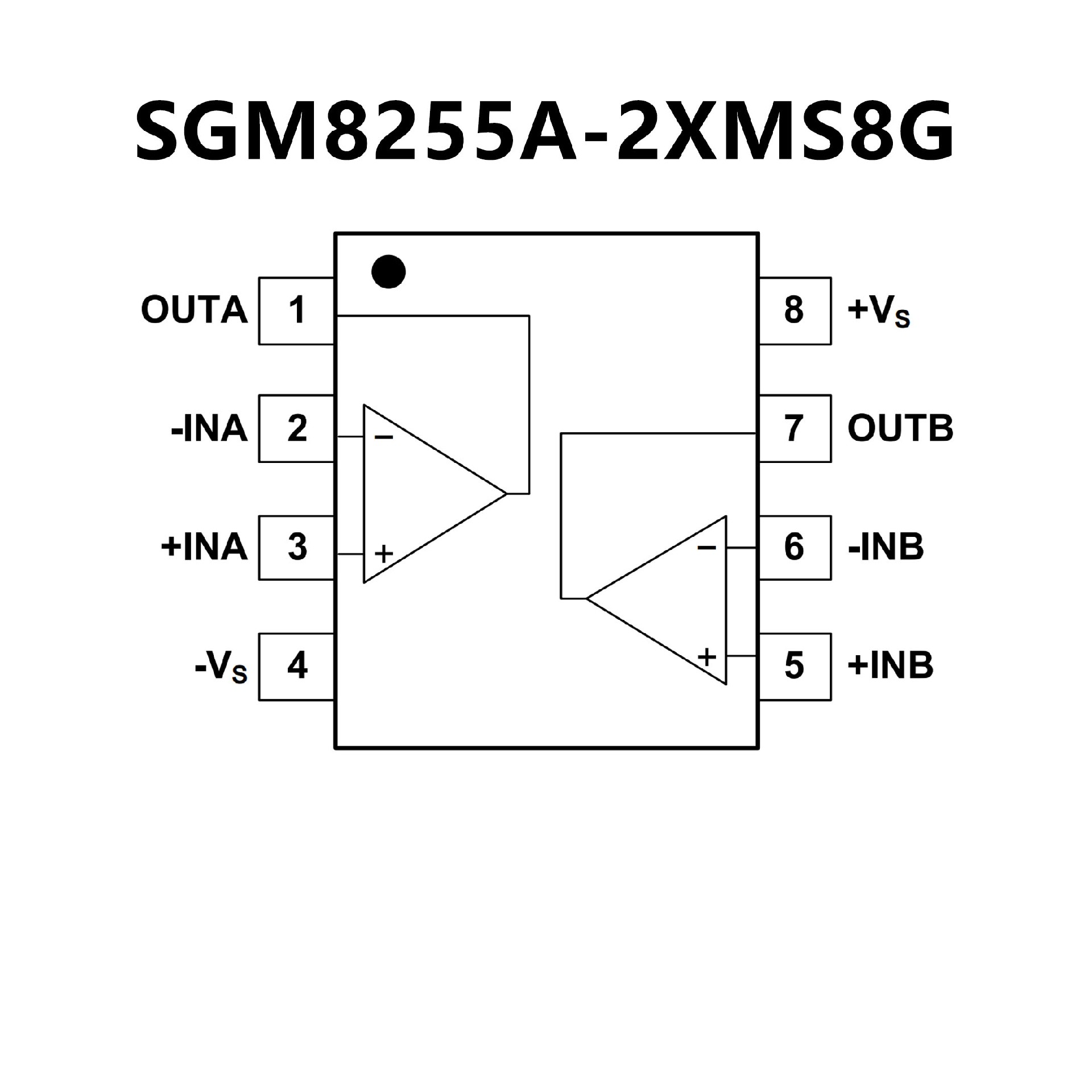

SGM8255A-2 Available in Green SOIC-8 and
MSOP-8 Packages

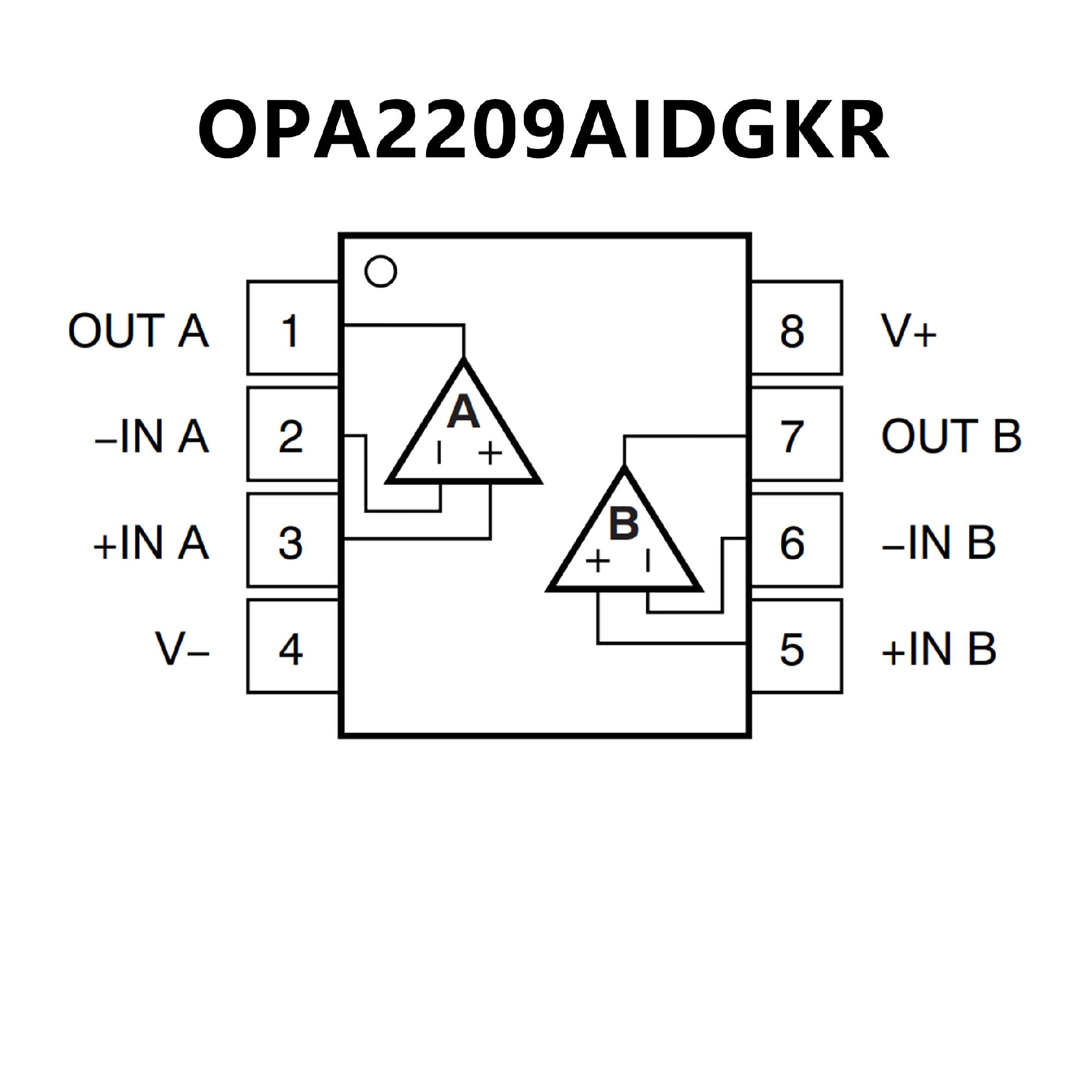

? Low Voltage Noise: 2.2 nV/√Hz at 1 kHz
? 0.1-Hz to 10-Hz Noise: 130 nVPP
? Low Quiescent Current: 2.5 mA/Ch (Maximum)
? Low Offset Voltage: 150 μV (Maximum)
? Gain Bandwidth Product: 18 MHz
? Slew Rate: 6.4 V/μs
? Wide Supply Range:
±2.25 V to ±18 V, 4.5 V to 36 V
? Rail-to-Rail Output
? Short-Circuit Current: ±65 mA
? Available in 5-Pin SOT-23, 8-Pin MSOP,
8-Pin SOIC, and 14-Pin TSSOP Packages
