High Speed, Ultra-Low Noise, Rail-to-Rail Output, High Output Current Amplifier, SGM8262-2 P2P LME49723.
SGM8262-2
SGM8262-2.pdf
SGM8262-2.pdfFEATURES
? Dual Operational Amplifiers
? Voltage Feedback
? High Open-Loop Gain: 110dB
? Unity-Gain Stable
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Rail-to-Rail Output
High Linear Output Current:
310mA Peak Current into 32Ω
on ±12V SuppliesWhile Maintaining -55dBc SFDR
? Ultra-Low Noise:3.5nV/ Hz Voltage
Noise Density at 100kHz4pA/ Hz Current
Noise Density at 100kHz
? High Speed:22MHz Bandwidth (G = +1, -3dB)
33V/μs Slew Rate (RLOAD = 32Ω)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8BLPackages

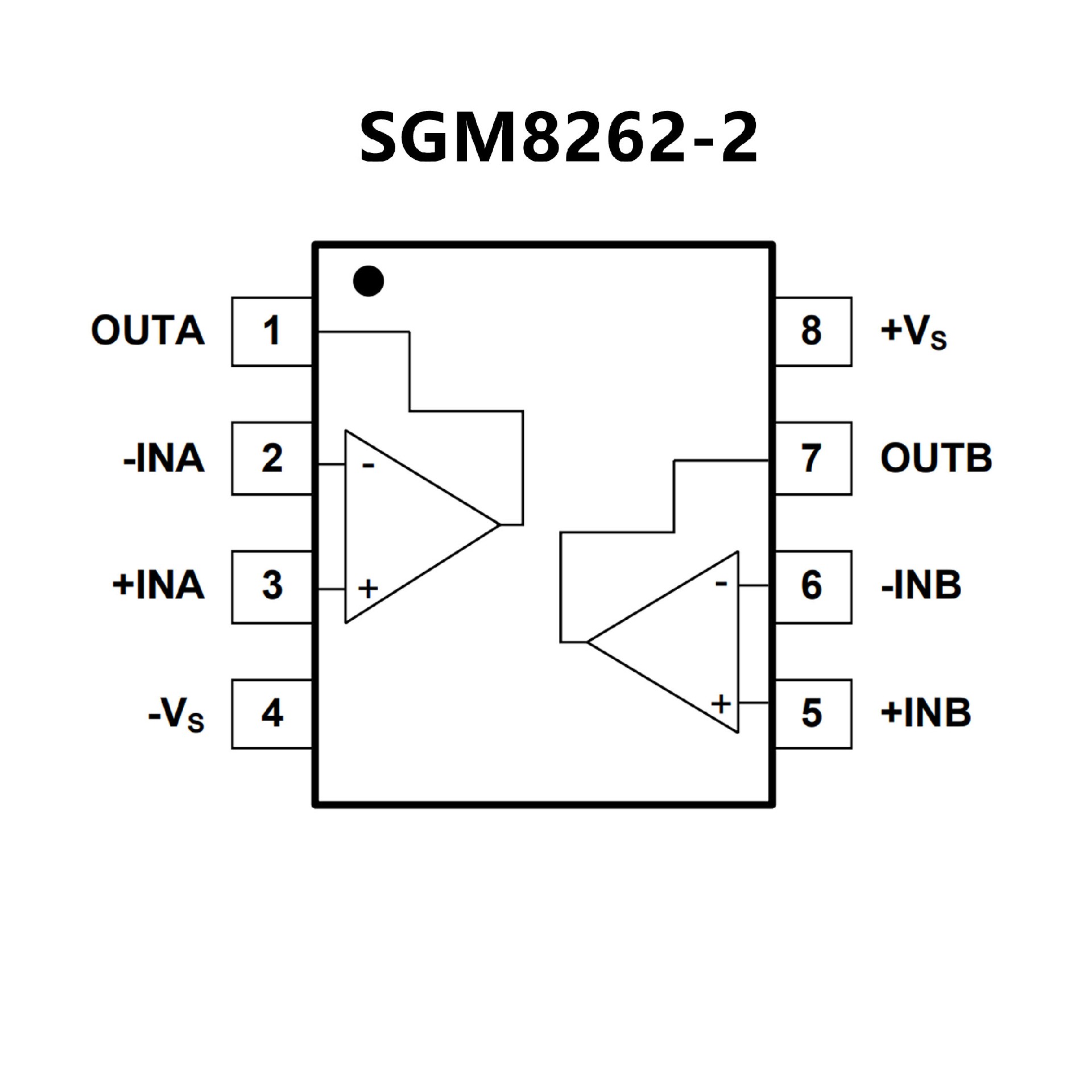

PIN CONFIGUTION
優勢替代
FEATURES
? Easily Drives 600? Loads
? Optimized for Superior Audio Signal Fidelity
? Output Short Circuit Protection
? PSRR and CMRR Exceed 100dB (typ)
? SOIC Package

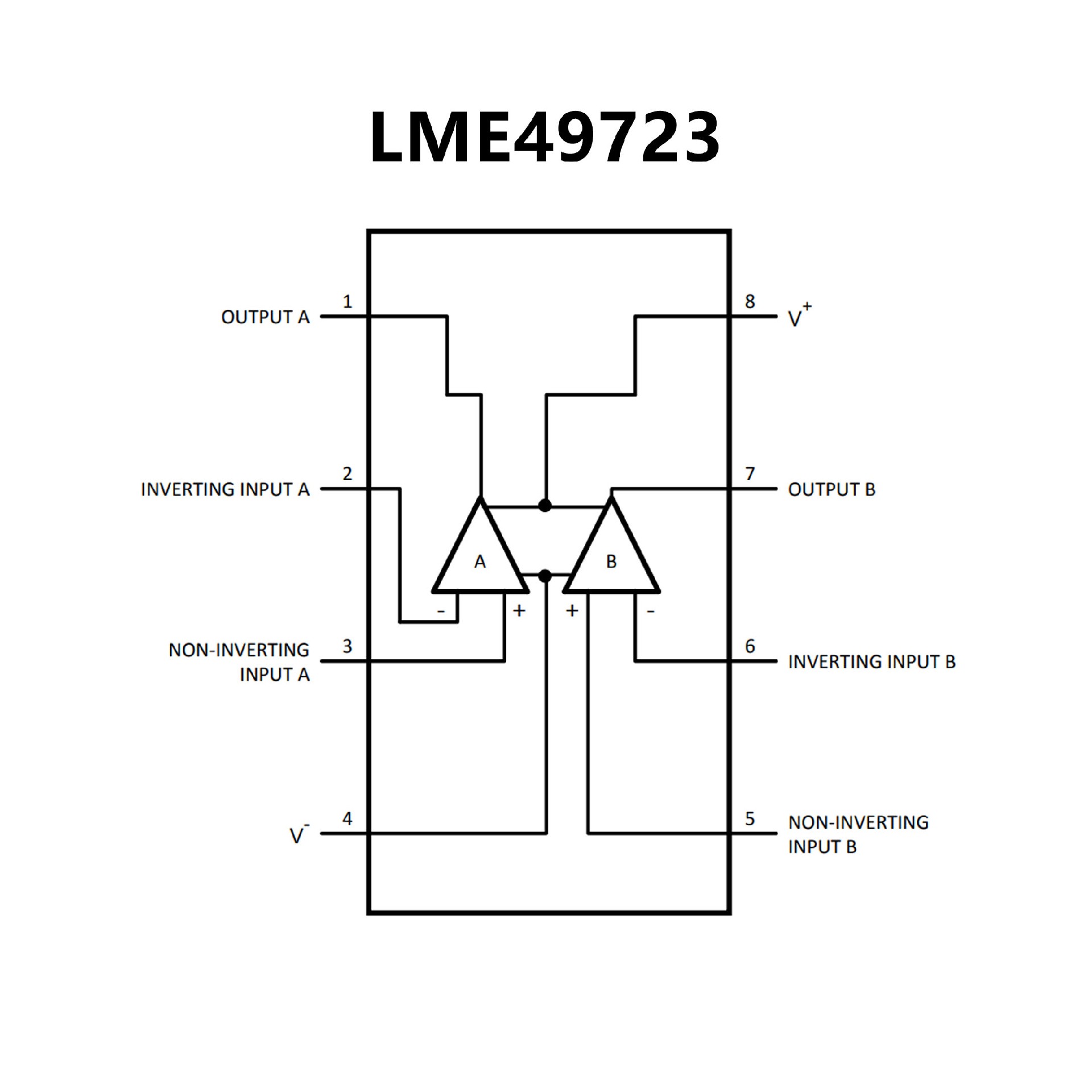

PIN CONFIGUTION
