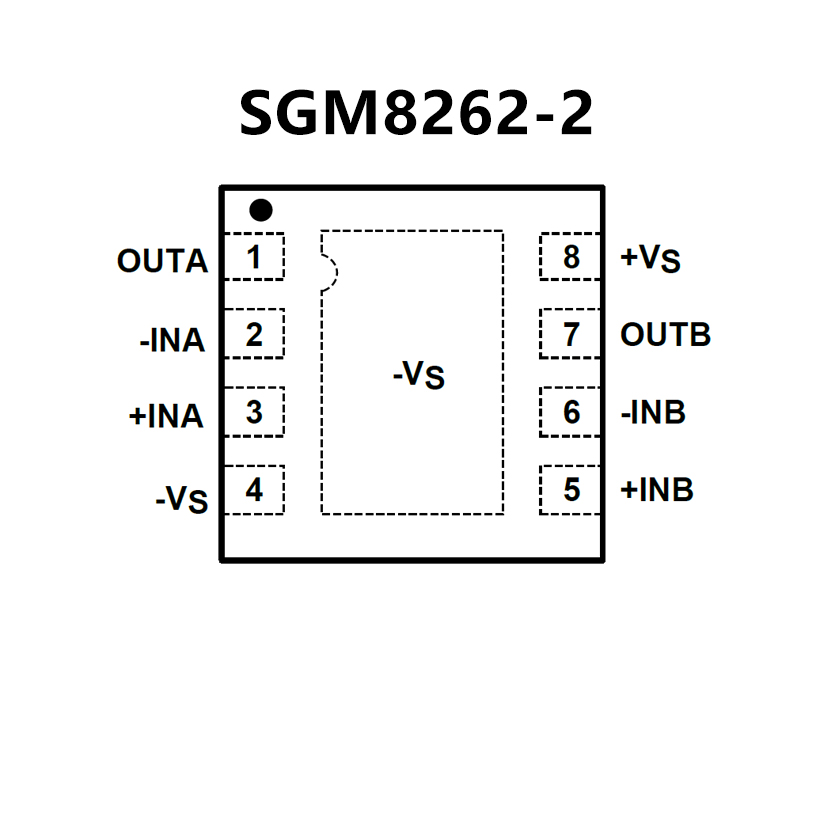

SGM8262-2YS8G.pdf? Dual Operational Amplifiers
? Voltage Feedback
? High Open-Loop Gain: 110dB
? Unity-Gain Stable
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Rail-to-Rail Output
High Linear Output Current:
310mA Peak Current into 32Ω on ±12V Supplies
While Maintaining -55dBc SFDR
? Ultra-Low Noise:
3.5nV/Hz Voltage Noise Density at 100kHz
4pA/Hz Current Noise Density at 100kHz
? High Speed:
22MHz Bandwidth (G = +1, -3dB)
33V/μs Slew Rate (RLOAD = 32Ω)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and
TDFN-3×3-8BLPackages

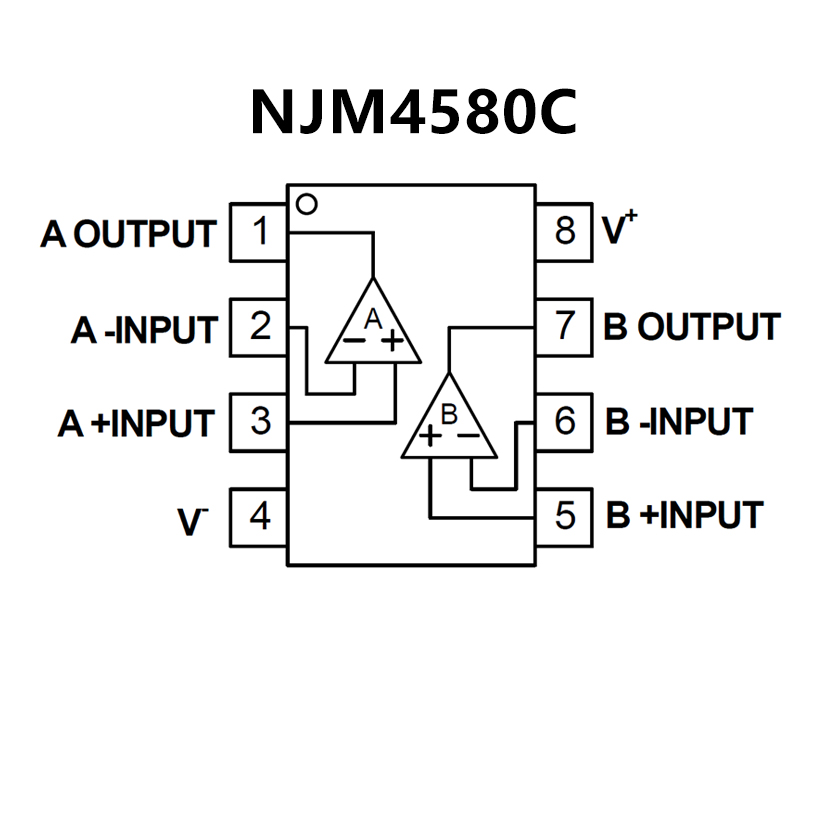

? Operating Voltage ±2V to ±18V
? Low Input Noise Voltage 5nV/√ Hz typ. at f=1kHz
? Gain Bandwidth Product 15MHz typ.
? Low Distortion 0.0005? typ.
? Slew Rate 5V/μs typ.
? Bipolar Technology
? Package Outline SOP8, SSOP8
? Internal ESD protection
Human body model (HBM) ±2000V typ.
