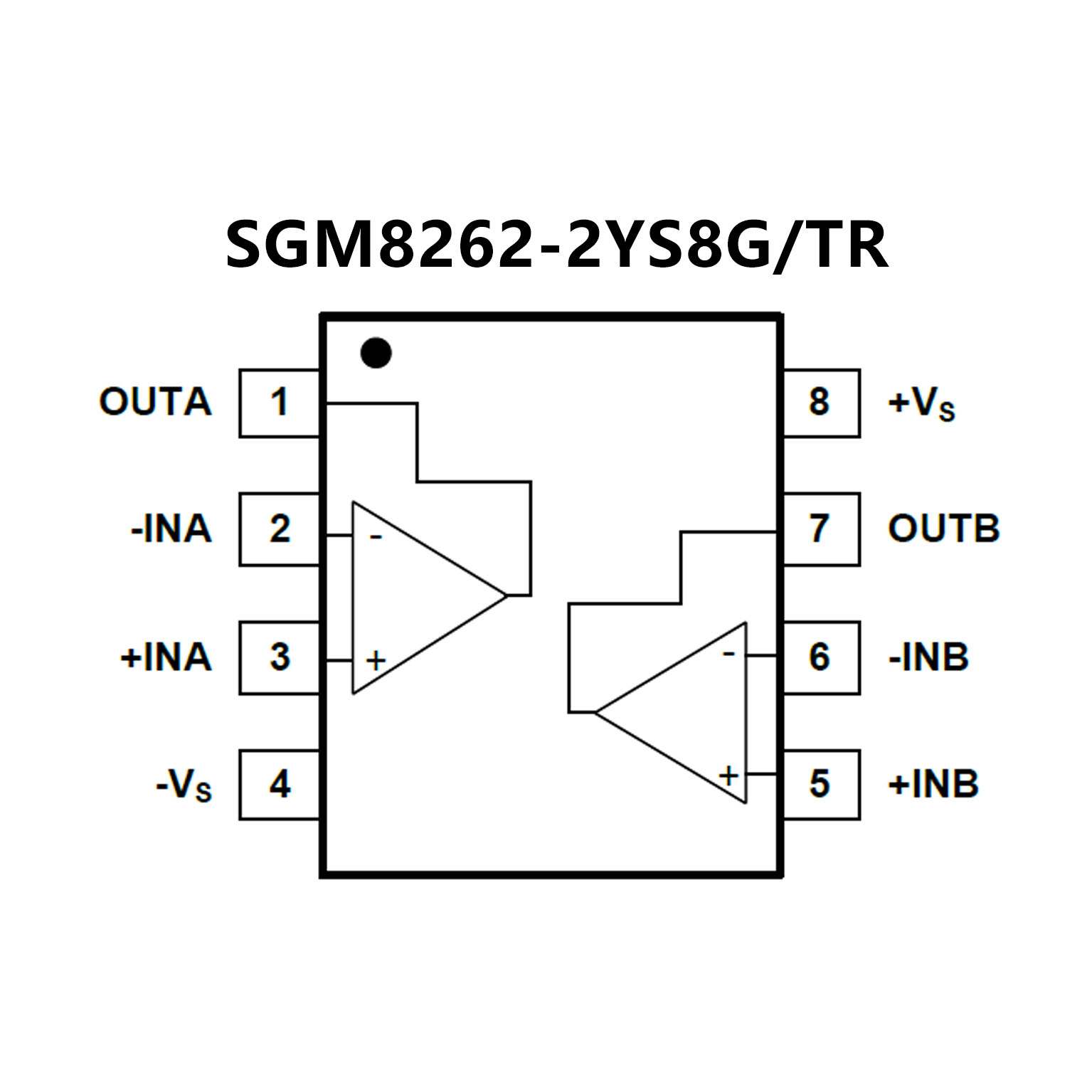

SGM8262-2.pdf? Dual Operational Amplifiers
? Voltage Feedback
? High Open-Loop Gain: 130dB
? Unity-Gain Stable
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Rail-to-Rail Output
High Linear Output Current:
150mA Peak into 16Ω on ±5V Supplies While
Maintaining -70dBc SFDR
? Ultra-Low Noise:
4nV/ Hz Voltage Noise Density at 1kHz
4pA/ Hz Current Noise Density at 1kHz
? High Speed:
30MHz Bandwidth (G = +1, -3dB)
40V/μs Slew Rate (RLOAD = 32Ω)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 Package

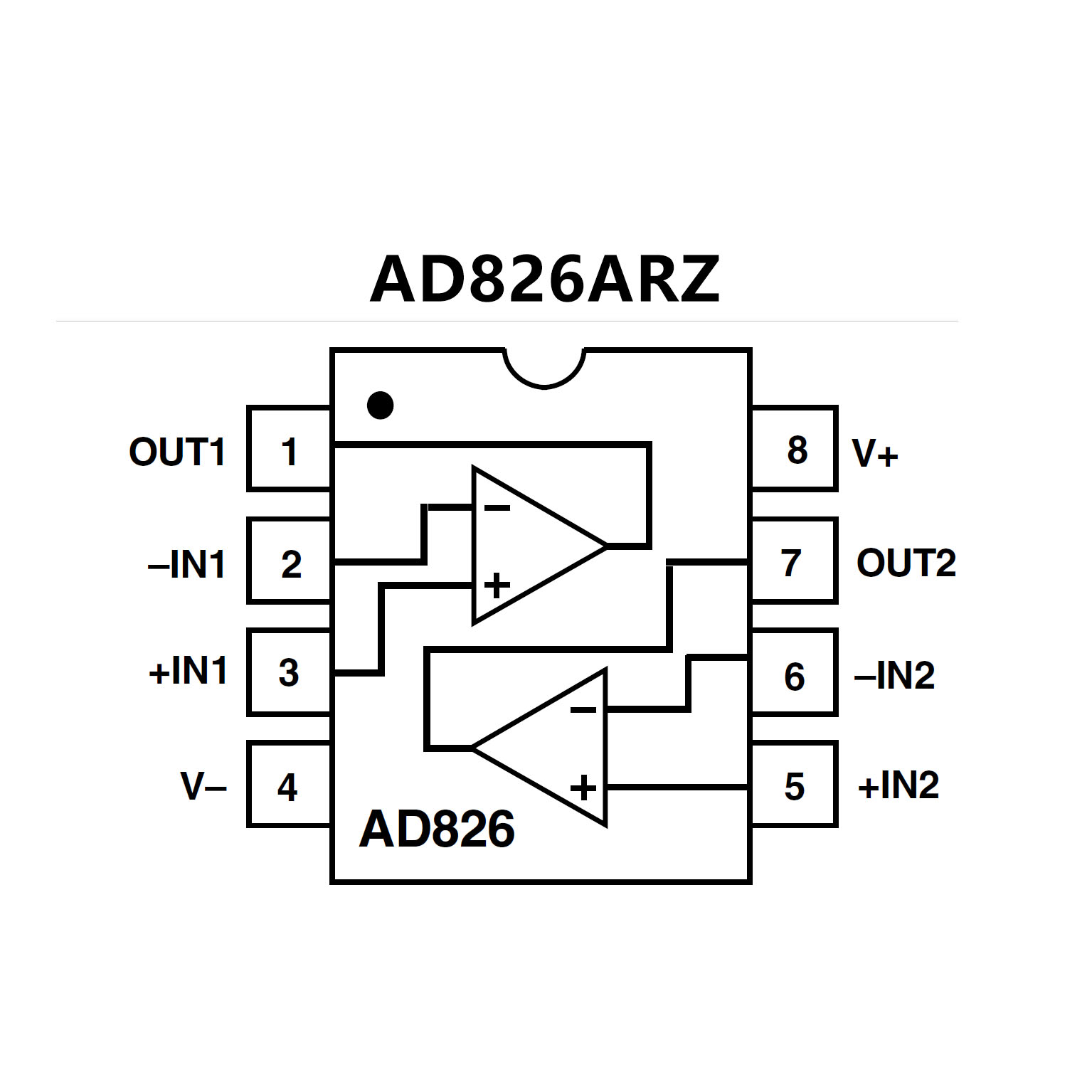

? High Speed:
50 MHz Unity Gain Bandwidth
350 V/s Slew Rate
70 ns Settling Time to 0.01%
? Low Power:
7.5 mA Max Power Supply Current Per Amp
? Easy to Use:
Drives Unlimited Capacitive Loads
50 mA Min Output Current Per Amplifier
Specified for +5 V, 5 V and 15 V Operation
2.0 V p-p Output Swing into a 150ΩLoad
(VS = +5 V)
? Good Video Performance
Differential Gain & Phase Error of 0.07% & 0.11°
? Excellent DC Performance:
2.0 mV Max Input Offset Voltage
