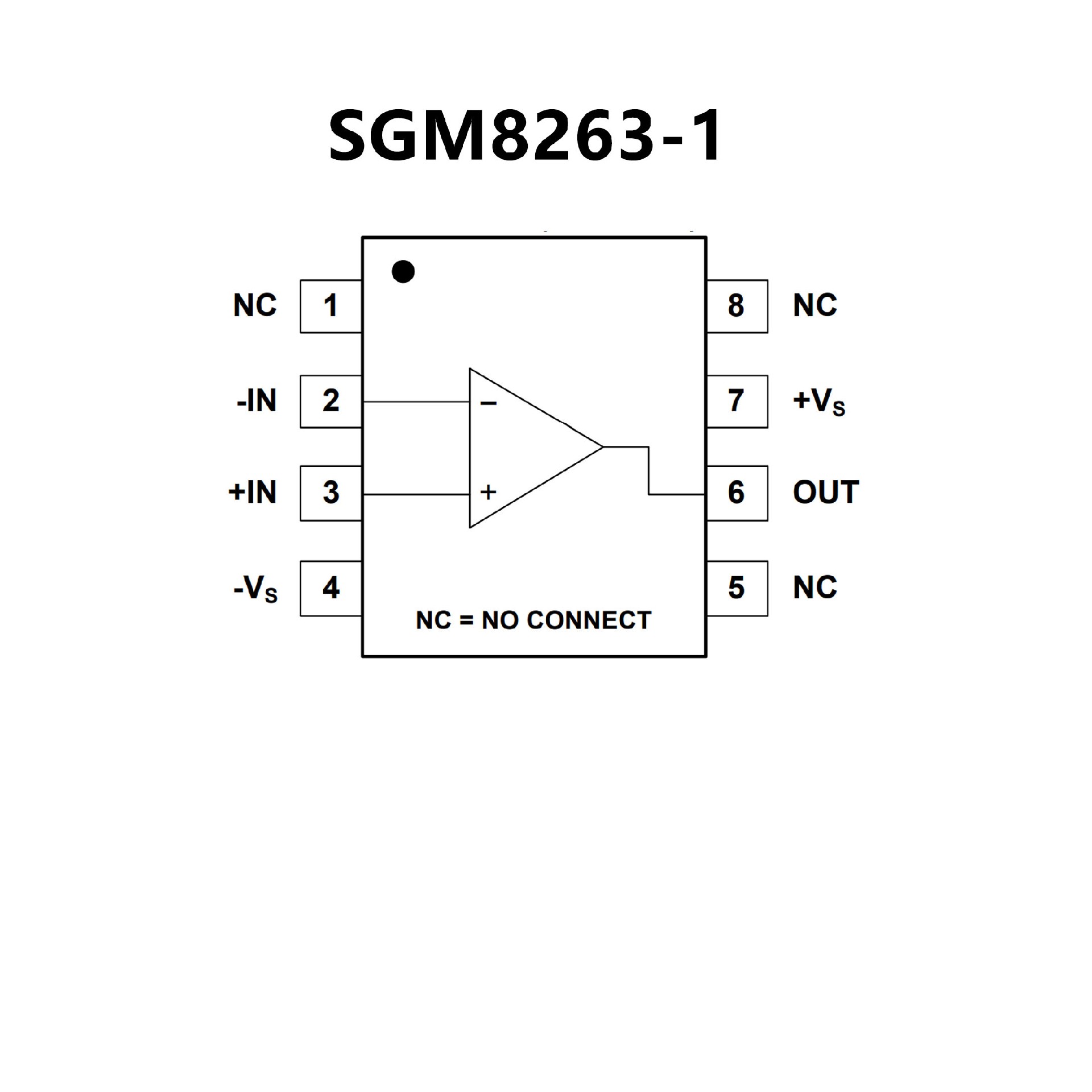

SGM8263-1.pdf? Ultra Low Offset Voltage: 8.5μV (MAX)
? Ultra Low Input Offset Voltage Drift: 10nV/℃
? Low Noise: 4.5nV/ Hz at 1kHz
? Low Distortion: 0.0001% at 1kHz
? High Slew Rate: 10V/μs
? Gain-Bandwidth Product: 10MHz (G = +1)
? High Open-Loop Gain: 145dB
? Unity-Gain Stable
? Low Quiescent Current: 2.5mA/Amplifier
? Rail-to-Rail Output
? Support Single or Dual Power
Supplies:4V to 36V or ±2V to ±18V
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8263-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8263-2 Available in a Green SOIC-8 Package

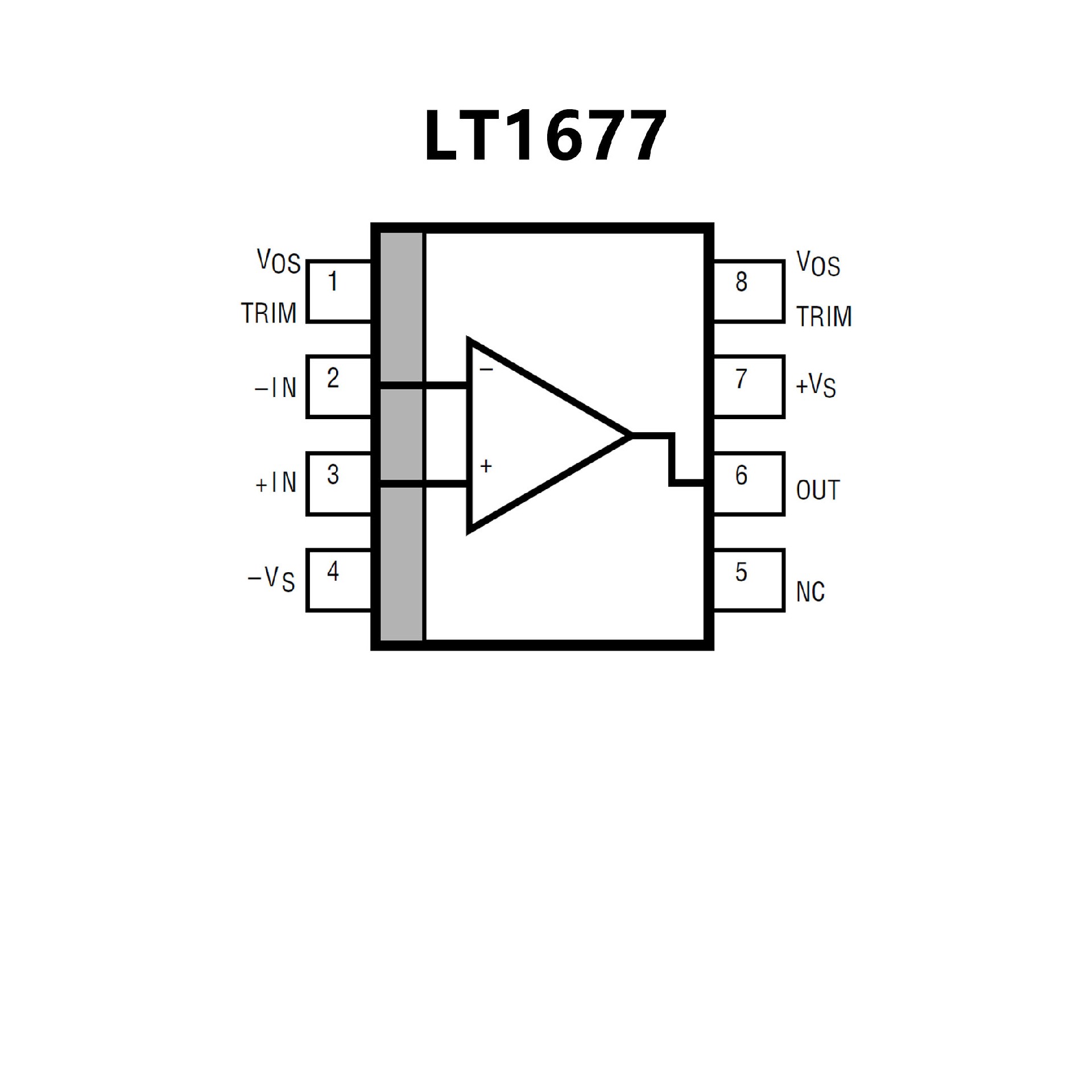

? Rail-to-Rail Input and Output
? 100% Tested Low Voltage Noise:
3.2nV/√Hz Typ at 1kHz 4.5nV/√Hz Max at 1kHz
? Offset Voltage: 60μV Max
? Low VOS Drift: 0.2μV/°C Typ
? Low Input Bias Current: 20nA Max
? Wide Supply Range: 3V to ±18V
? High AVOL: 7V/μV Min, RL = 10k
? High CMRR: 109dB Min
? High PSRR: 108dB Min
? Gain Bandwidth Product: 7.2MHz
? Slew Rate: 2.5V/μs
? Operating Temperature Range: –40°C to 85°C
