CMOS, Rail to Rail Input/Output,Low Offset Voltage, Low Input Bias Current Op Amp，Replace OPA2191.
SGM8263.pdf優勢替代
FEATURES
? Low offset voltage: ±5 μV
? Low offset voltage drift: ±0.1 μV/°C
? Low noise: 15 nV/√ Hz at 1 kHz
? High common-mode rejection: 140 dB
? Low bias current: ±5 pA
? Rail-to-rail input and output
? Wide bandwidth: 2.5-MHz GBW
? High slew rate: 5 V/μs
? Low quiescent current: 140 μA per amplifier
? Wide supply: ±2.25 V to ±18 V, 4.5 V to 36 V
? EMI/RFI filtered inputs
? Differential input voltage range to supply rail
? High capacitive load drive capability: 1 nF
? Industry standard packages:
Single in SOIC-8, SOT-5, and VSSOP-8
Dual in SOIC-8 and VSSOP-8
Quad in SOIC-14, TSSOP-14, and WQFN-16

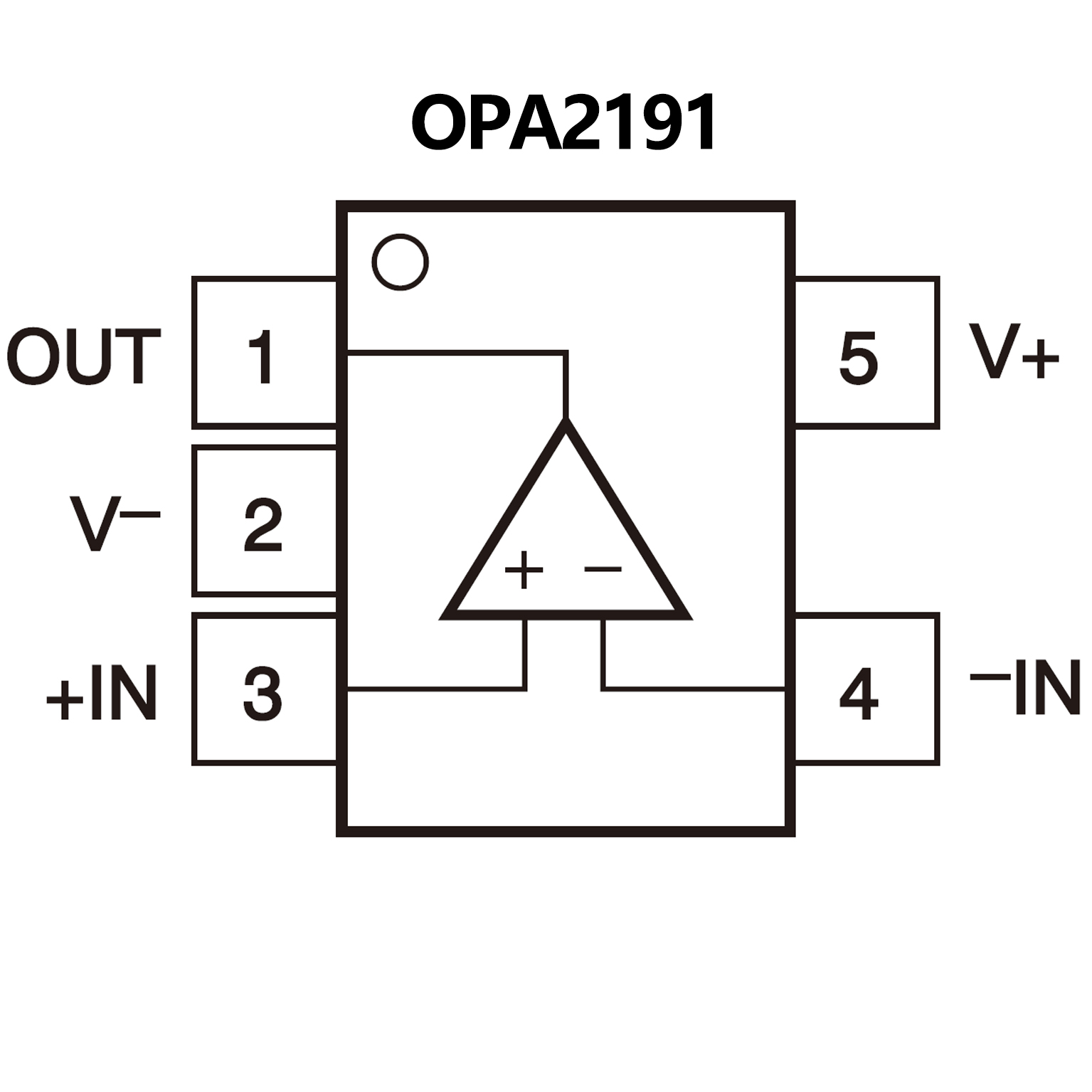

PIN CONFIGUTION
