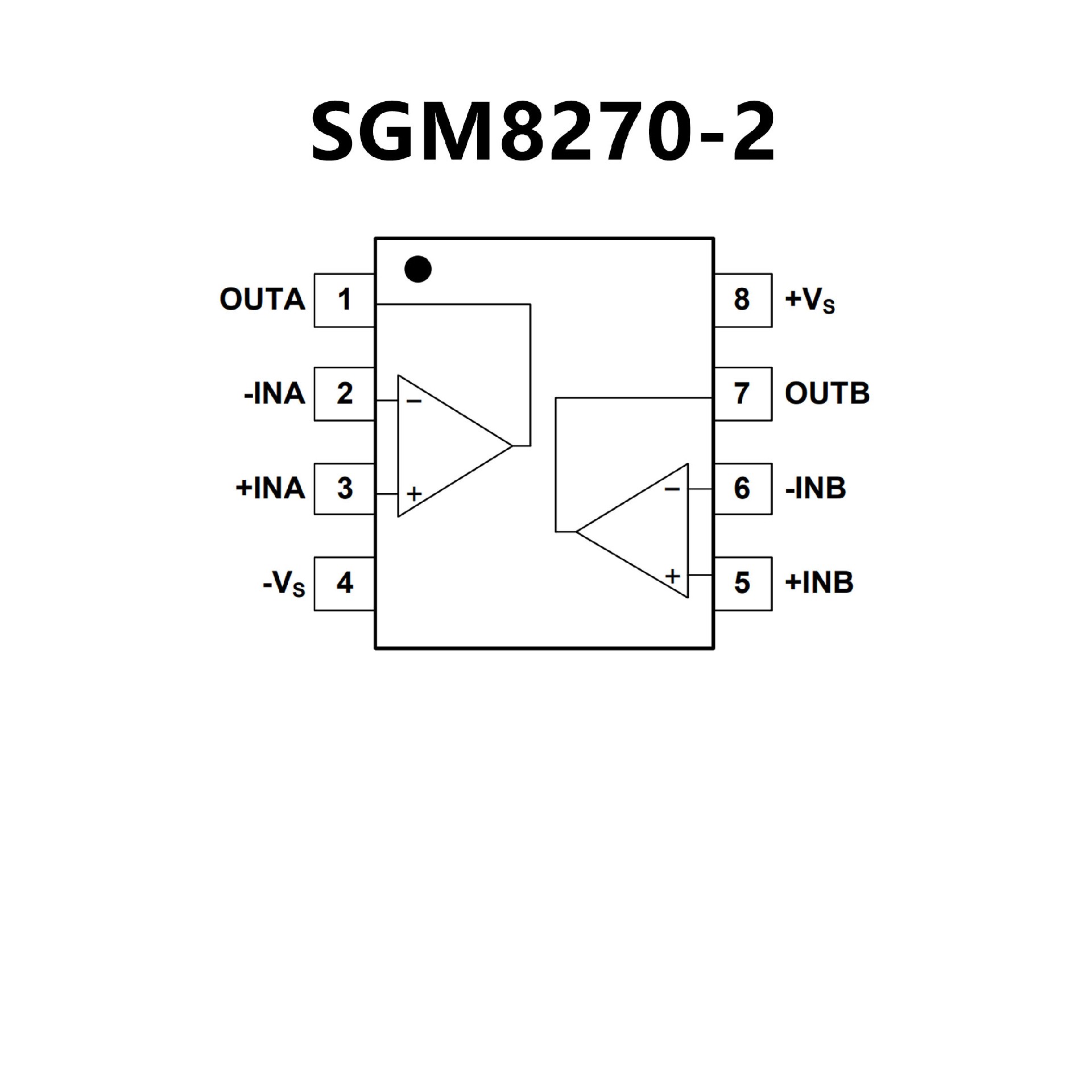

SGM8270-2.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

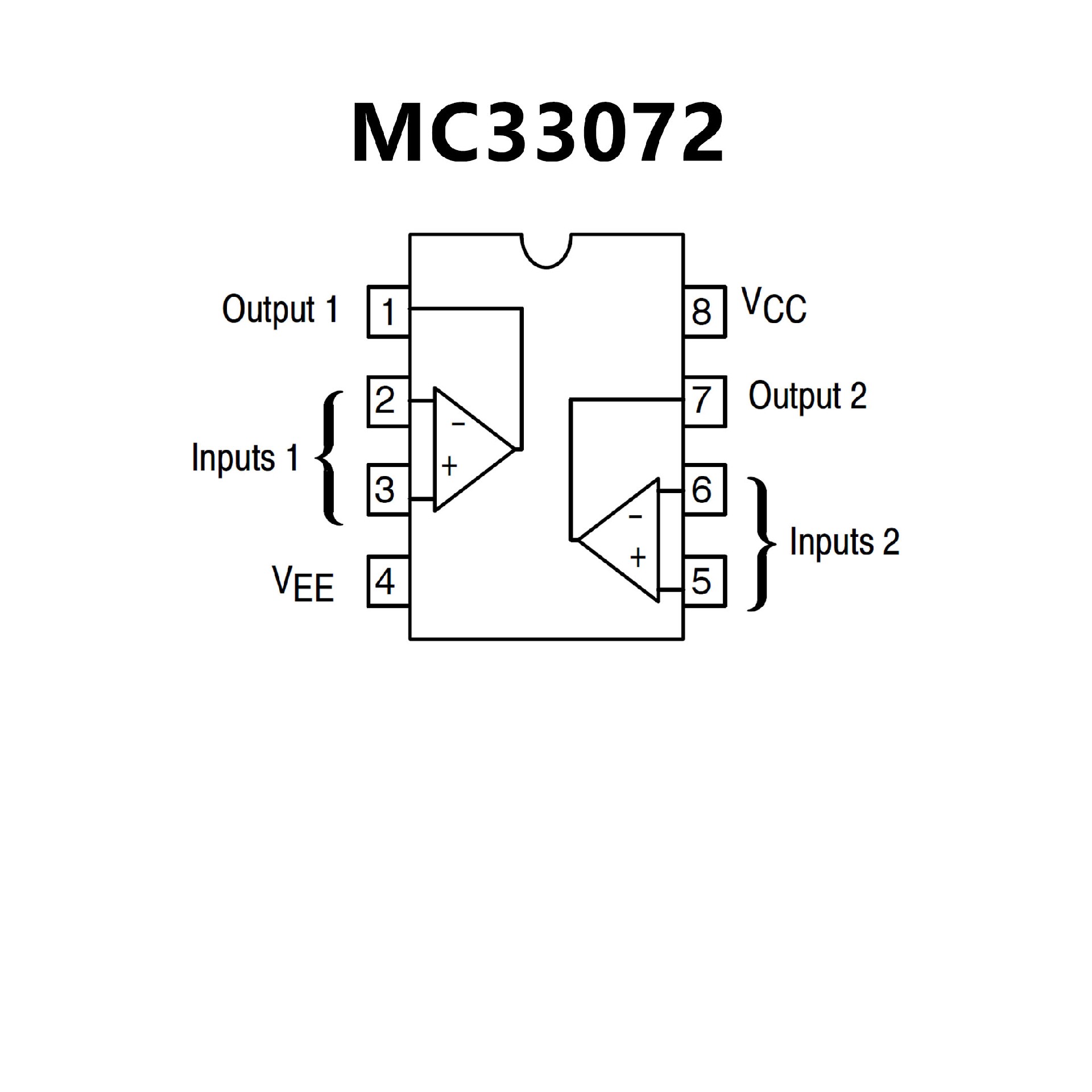

? Wide Bandwidth: 4.5 MHz
? High Slew Rate: 13 V/μs
? Fast Settling Time: 1.1 μs to 0.1%
? Wide Single Supply Operation: 3.0 V to 44 V
? Wide Input Common Mode
Voltage Range: Includes Ground (VEE)
? Low Input Offset Voltage: 3.0 mV Maximum (A Suffix)
? Large Output Voltage Swing:
14.7 V to +14 V (with ±15 VSupplies)
? Large Capacitance Drive Capability: 0 pF to 10,000 pF
? Low Total Harmonic Distortion: 0.02%
? Excellent Phase Margin: 60°
? Excellent Gain Margin: 12 dB
? Output Short Circuit Protection
? ESD Diodes/Clamps Provide Input
Protection for Dual and Quad
? NCV Prefix for Automotive and Other
Applications RequiringUnique Site and
Control Change Requirements;
AEC?Q100Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHSCompliant
