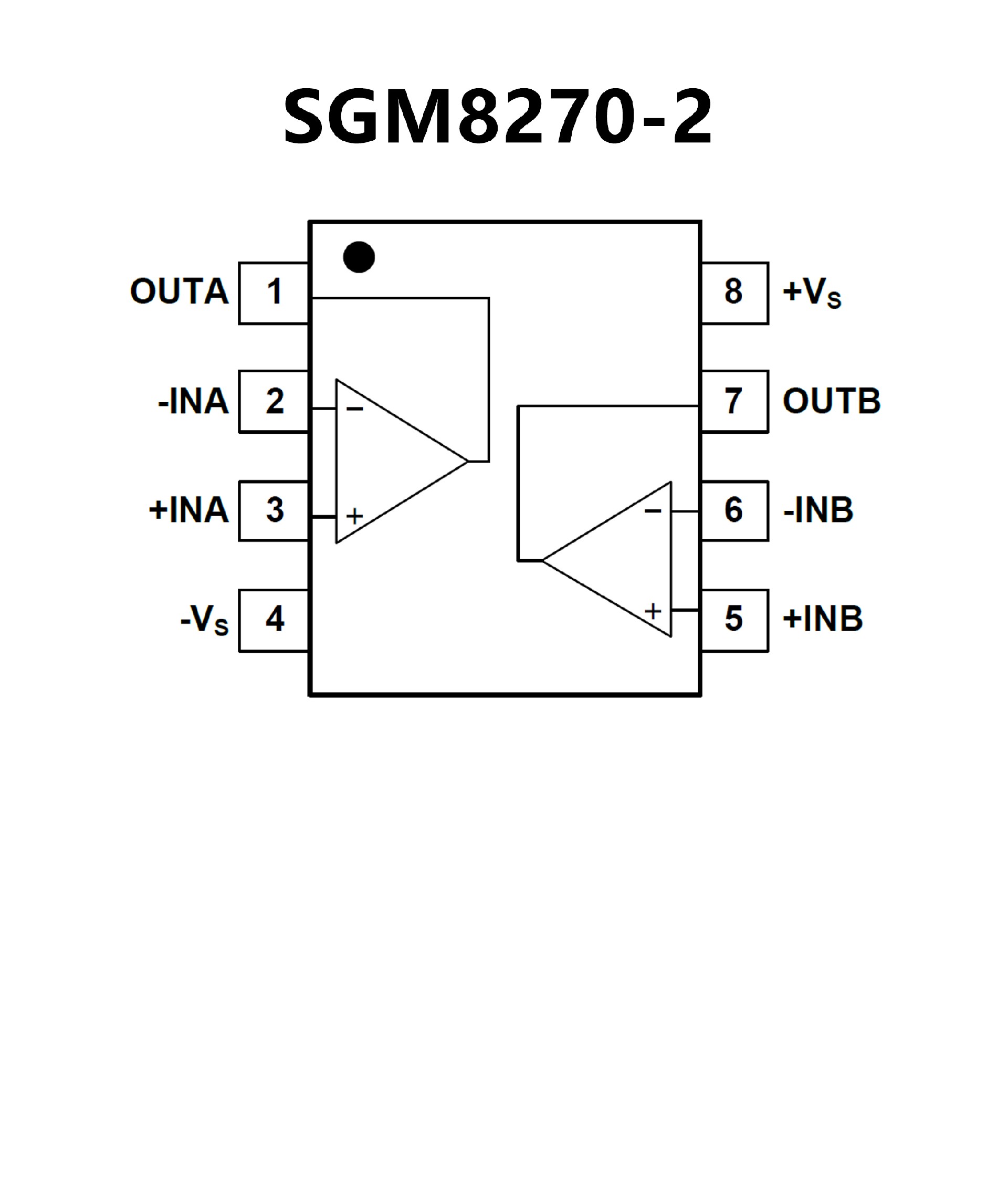

SGM8270-2.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating
Temperature Range
? Available in Green SOIC-8
and MSOP-8 Packages
? Rail-to-Rail Input and Output
? Wide Bandwidth: 3 MHz
? High Slew Rate: 2.4 V/μs
? Supply Voltage Range: 2.7 V to 16 V
? Supply Current: 550 μA/Channel
? Low-Power Shutdown Mode
IDD(SHDN): 25 μA/Channel
? Input Noise Voltage: 39 nV/√Hz
? Input Bias Current: 1 pA
? Specified Temperature Range:
?40°C to +125°C (Industrial Grade)
? Ultra-Small Packaging:
5- or 6-Pin SOT-23 (TLV2370, TLV2371)

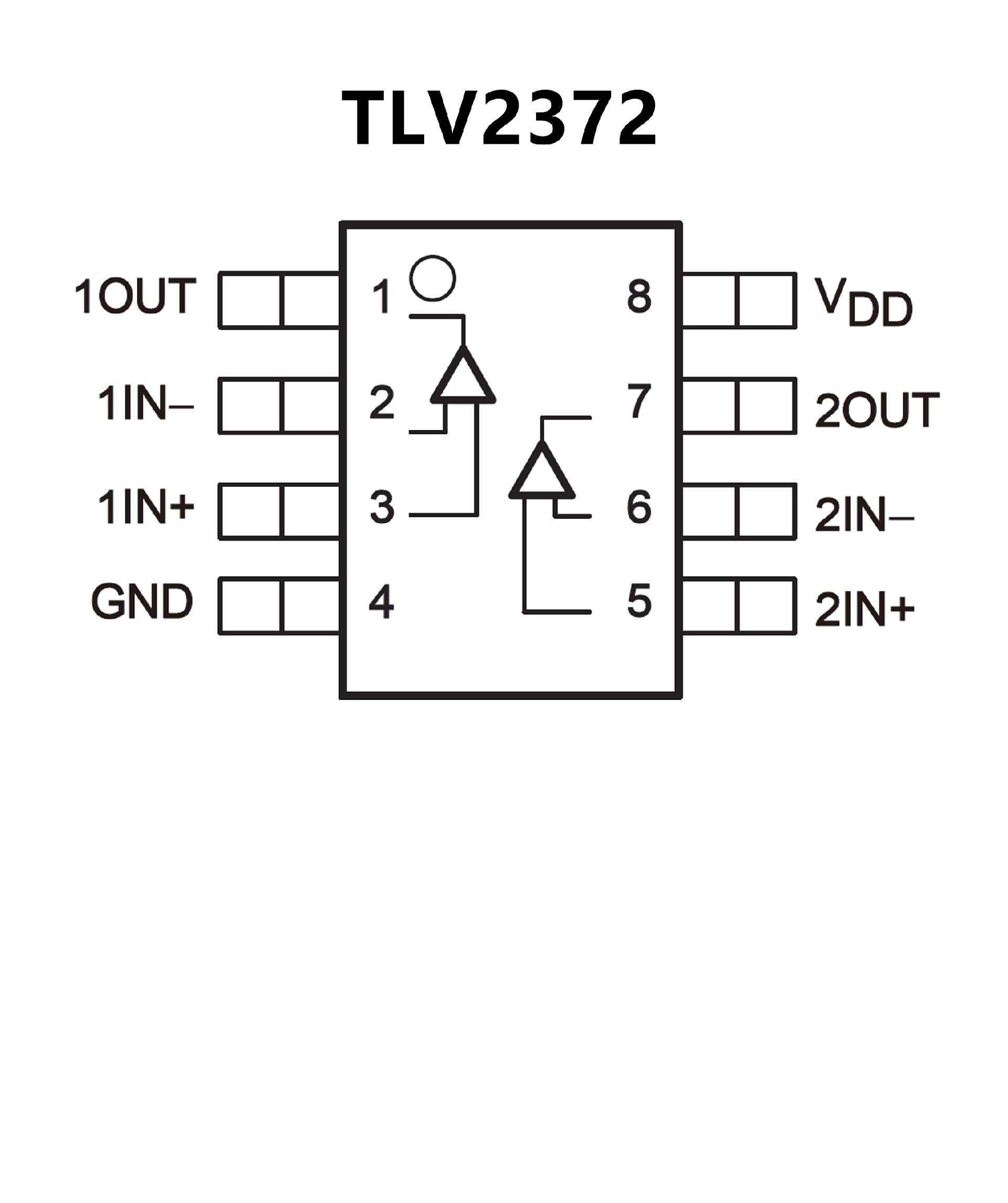

8- or 10-Pin MSOP (TLV2372, TLV2373)
