Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-2XS8GTR Replace MC33172DG.
SGM8270-2
SGM8270-2.pdf
SGM8270-2.pdfFEATURES
? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

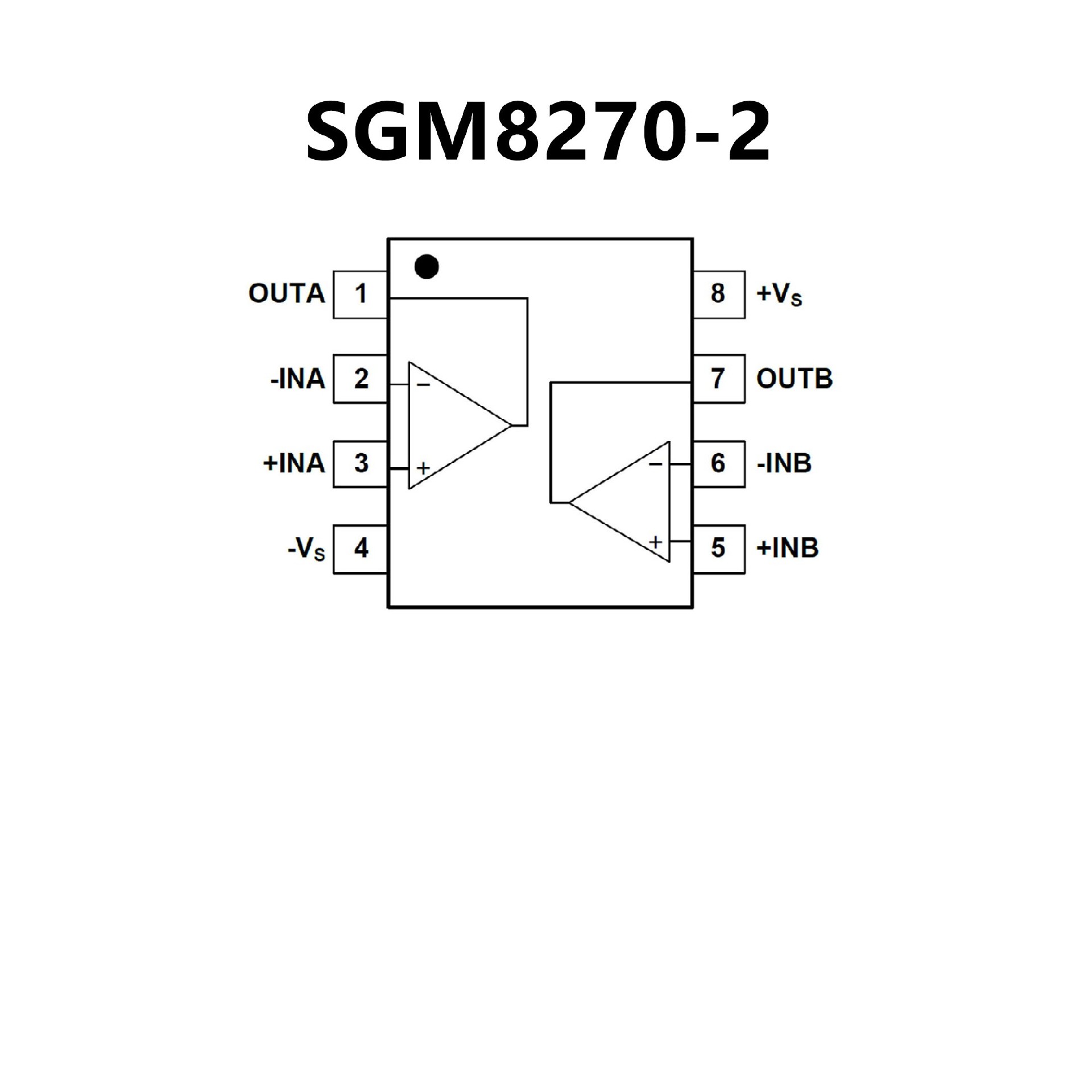

PIN CONFIGUTION
優勢替代
FEATURES
? Good consumption/speed ratio: only 200 μA for
2.1 MHz, 2 V/μs
? Single (or dual) supply operation from +4 V to
+44 V (±2 V to ±22V)
? Wide input common mode mode voltage range
including VCC-
? Low level output voltage close to VCC- :
100 mV typical
? Pin-to-pin compatible with standard dual
operational amplifiers

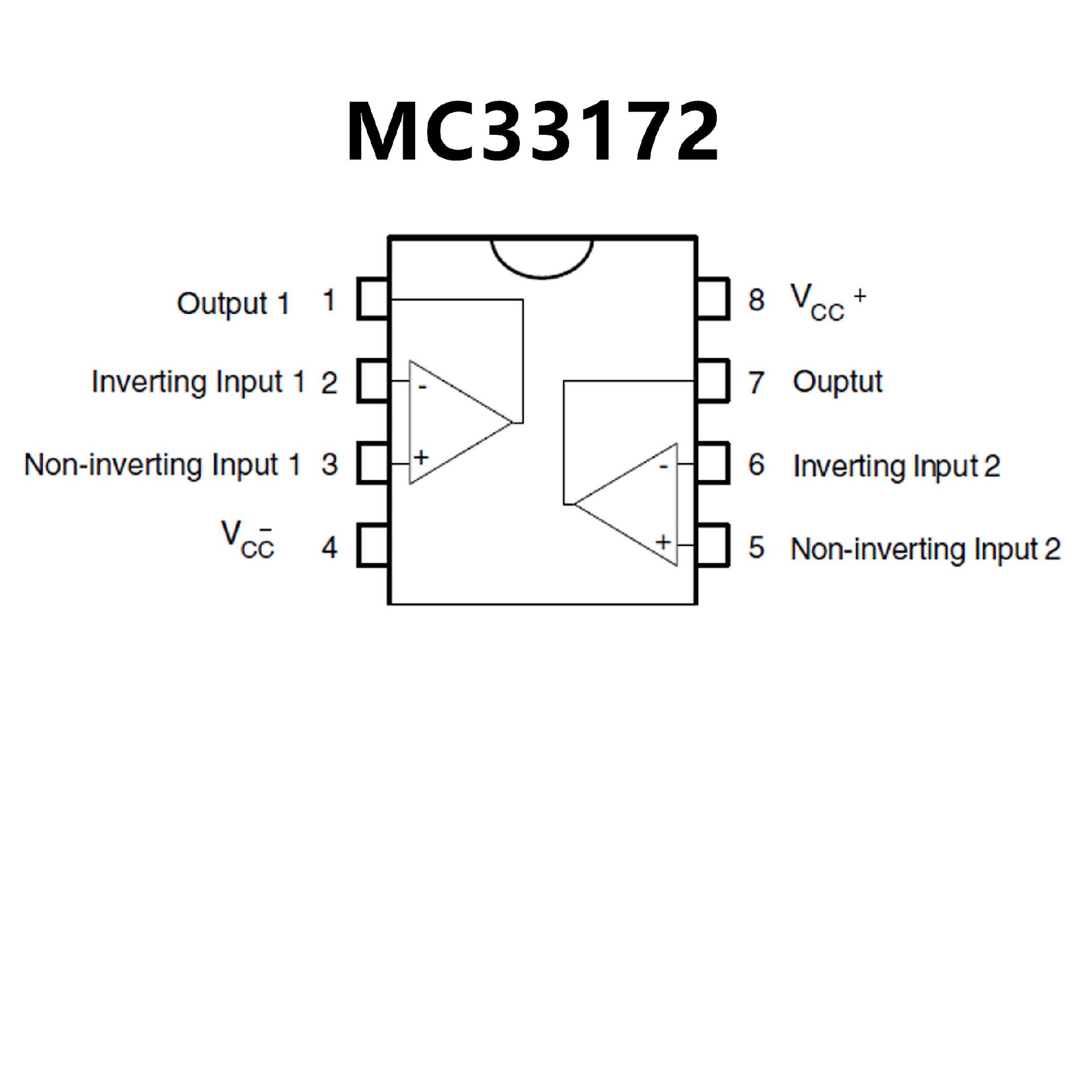

PIN CONFIGUTION
