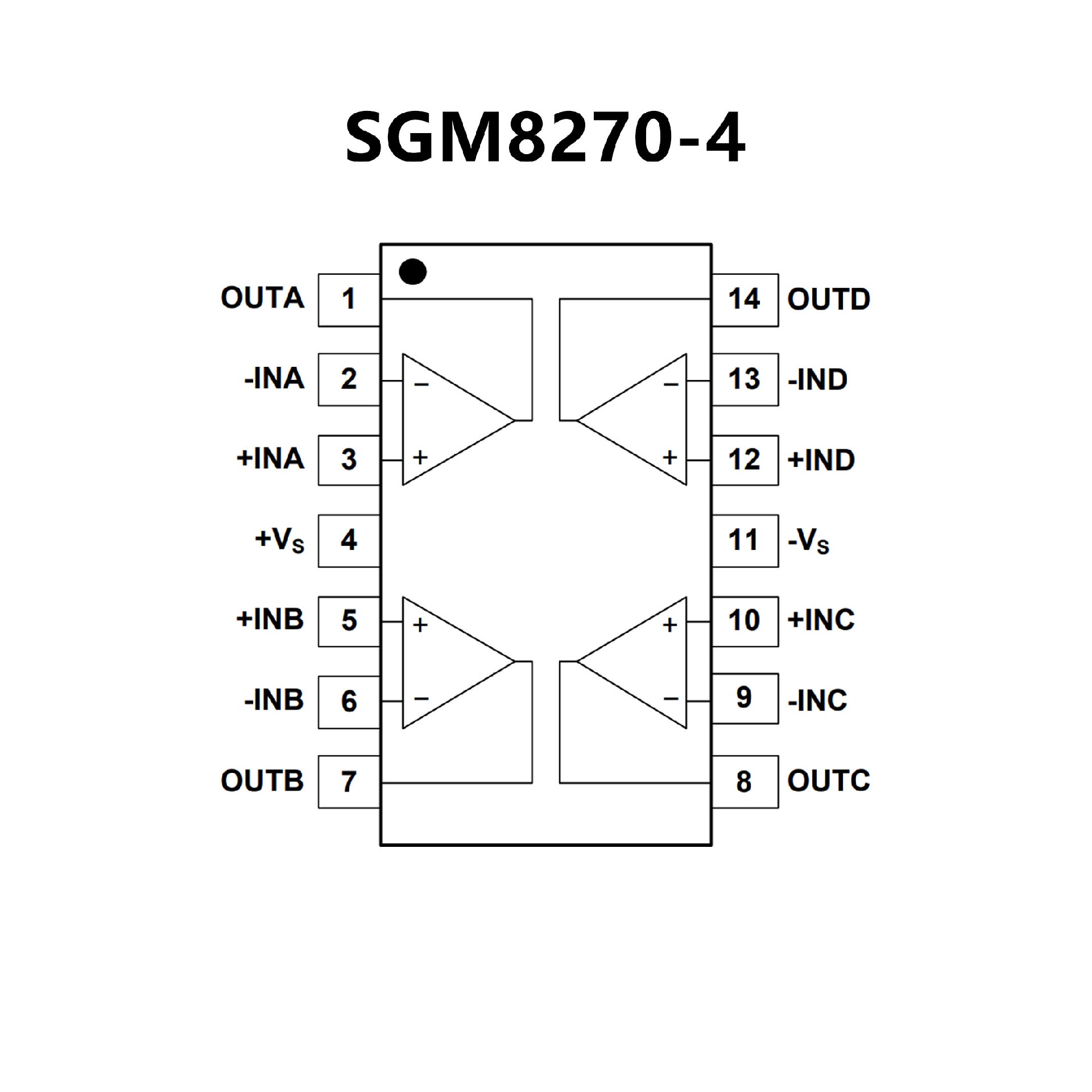

SGM8270-4.pdf? Wide Input Common Mode and
Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages
? Unless Otherwise Noted,
? Typical Values at VS = 5 V

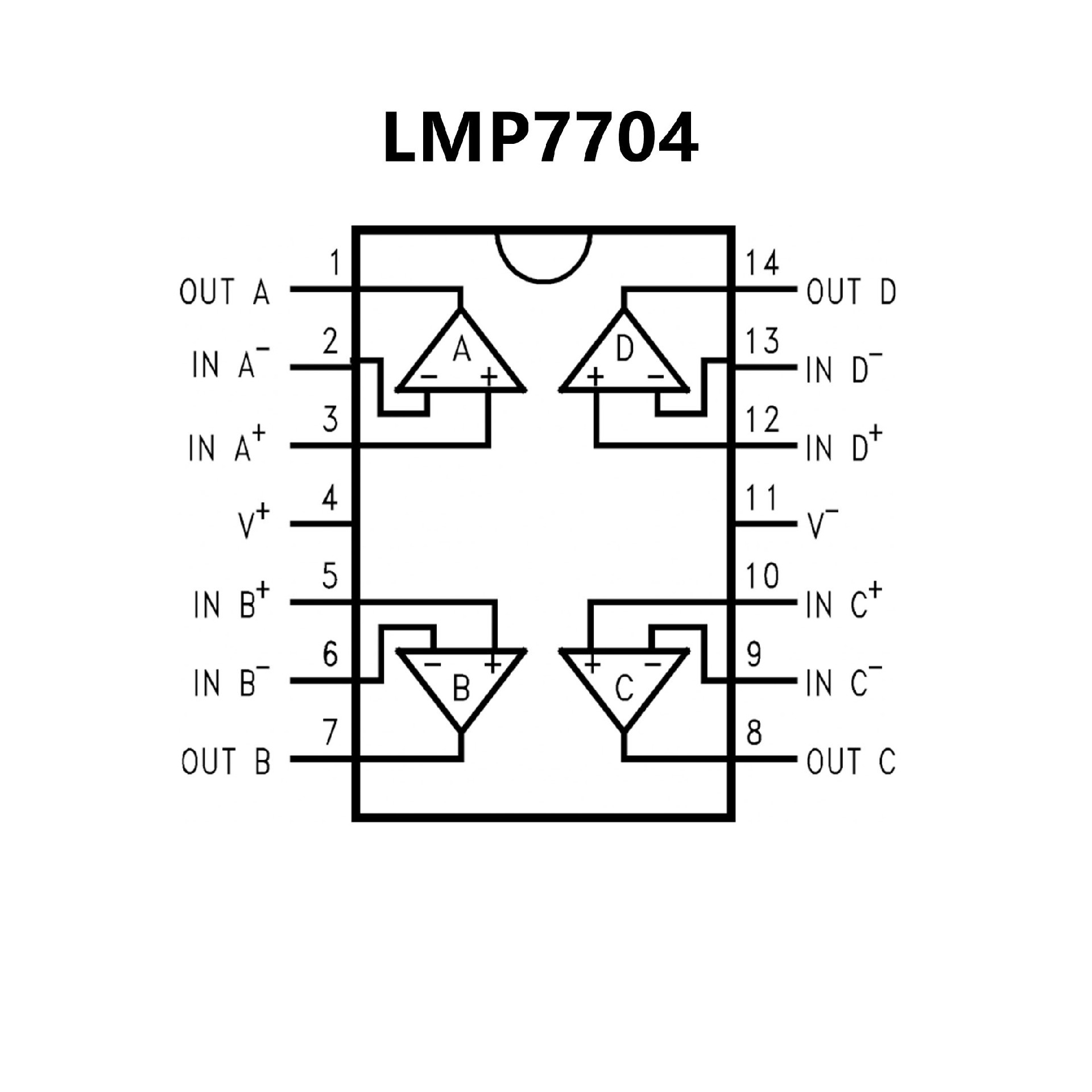

? Input Offset Voltage (LMP7701): ±200-μV
(Maximum)
? Input Offset Voltage (LMP7702/LMP7704):
±220-μV (Maximum)
? Input Bias Current: ±200 fA
? Input Bias Current: ±200 fA
? Input Voltage Noise: 9 nV/√Hz
? CMRR: 130 dB
? Open-Loop Gain: 130 dB
? Temperature Range: ?40°C to 125°C
? Unity-Gain Bandwidth: 2.5 MHz
? Supply Current (LMP7701): 715 μA
? Supply Current (LMP7702): 1.5 mA
? Supply Current (LMP7704): 2.9 mA
? Supply Voltage Range: 2.7 V to 12 V
? Rail-to-Rail Input and Output
