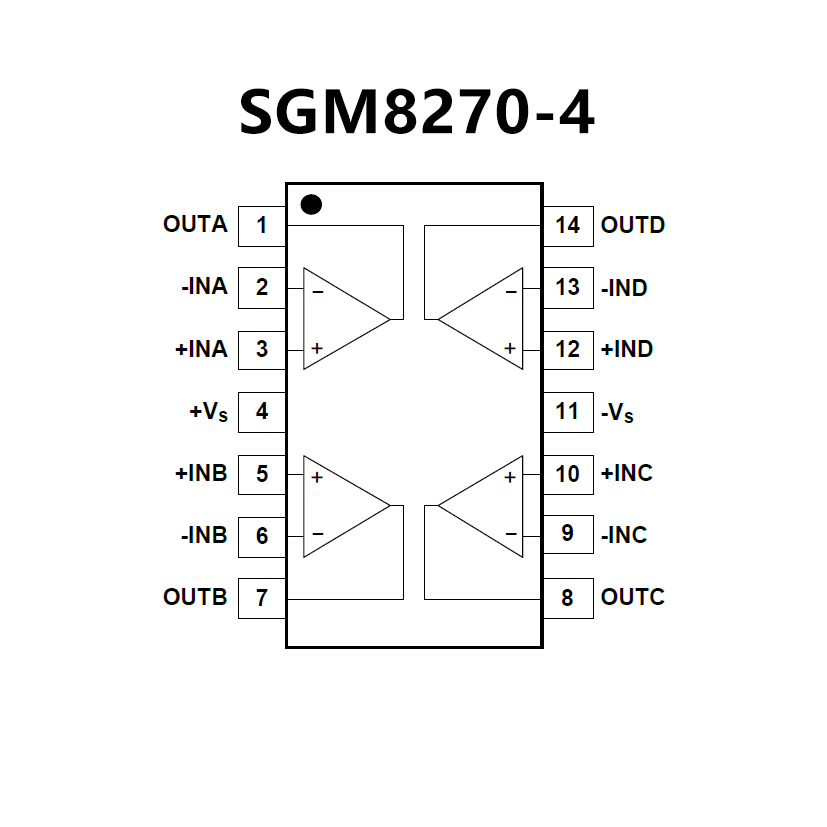

SGM8270-4.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
? Very Low Power Consumption
? Typical Supply Current: 200 μA (Per Amplifier)
? Wide Common-Mode and Differential Voltage Ranges
? Low Input Bias and Offset Currents
? Common-Mode Input Voltage Range
? Output Short-Circuit Protection
? High Input Impedance: JFET-Input Stage
? Internal Frequency Compensation
? Latch-Up-Free Operation
? High Slew Rate: 3.5 V/μs Typical
? On Products Compliant to MIL-PRF-38535,
? All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include
Testing of All Parameters.
