Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier, SGM8270 P2P TL084AIDT.
SGM8270-4
SGM8270-4.pdf
SGM8270-4.pdfFEATURES
? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating
Temperature Range
? Available in Green SOIC-14
and TSSOP-14 Packages

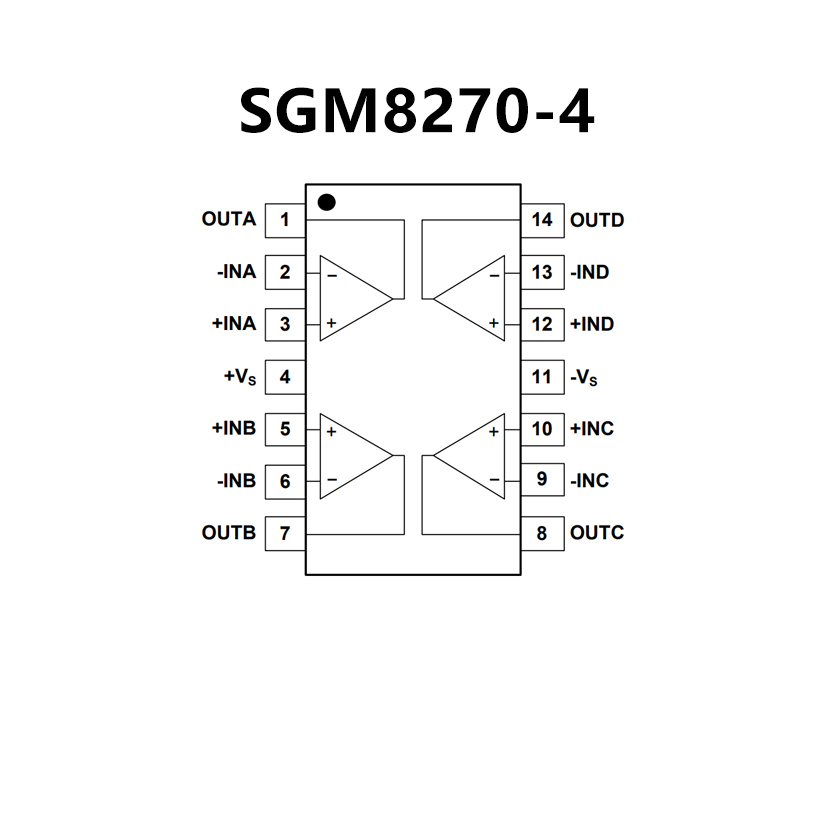

PIN CONFIGUTION
優勢替代
FEATURES
? Wide common-mode (up to VCC
+) and differential voltage range
? Low input bias and offset current
? Output short-circuit protection
? High input impedance JFET input stage
? Internal frequency compensation
? Latch up free operation
? High slew rate: 16 V/μs (typical)

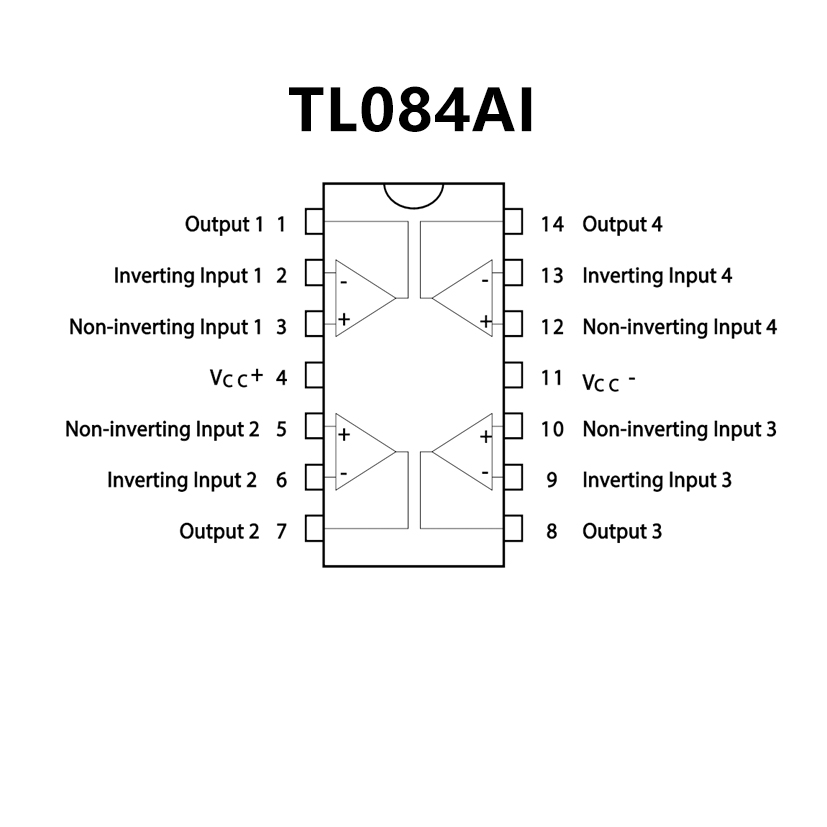

PIN CONFIGUTION
