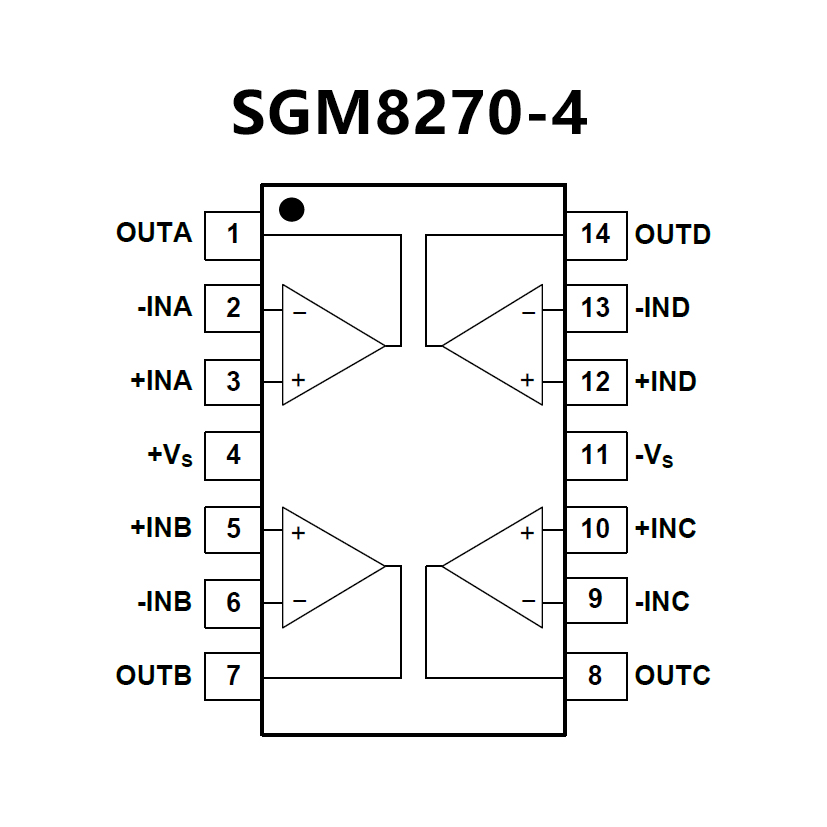

SGM8270-4.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating
Temperature Range
? Available in Green SOIC-14
and TSSOP-14 Packages
? Output Swing Includes Both Supply Rails
? Low Noise: 9 nV/√Hz Typical at f = 1 kHz
? Low-Input Bias Current: 1-pA Typical
? Fully-Specified for Both Single-Supply and Split-
Supply Operation
? Common-Mode Input Voltage Range Includes
Negative Rail
? High-Gain Bandwidth: 2.2-MHz Typical
? High Slew Rate: 3.6-V/μs Typical
? Low Input Offset Voltage: 950 μV Maximum at
TA = 25°C
? Macromodel Included

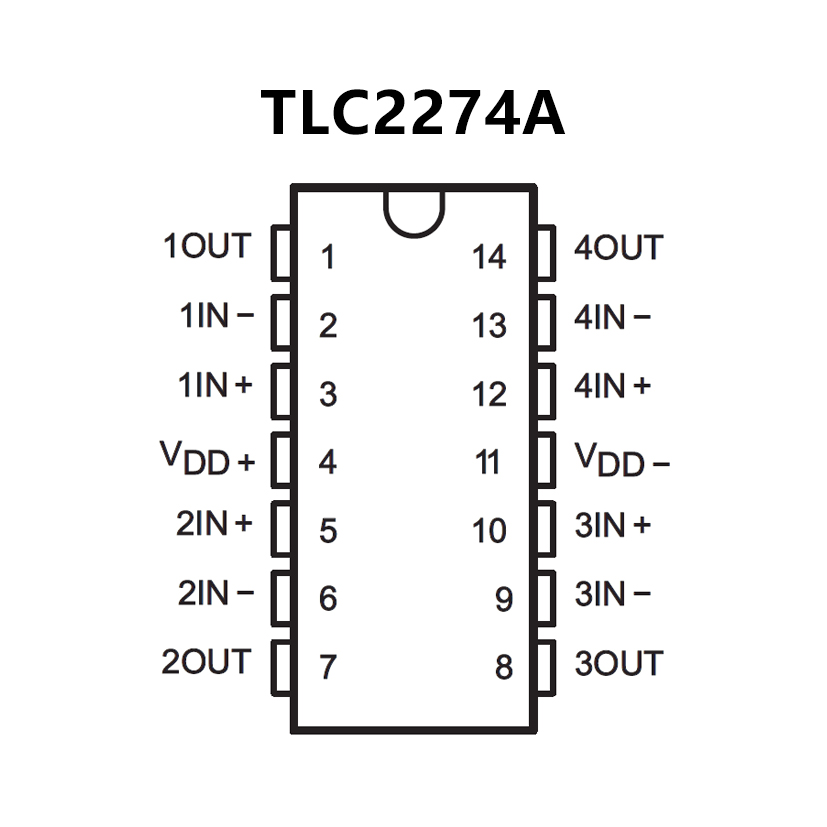

? Performance Upgrades for the TLC272 and
TLC274
? Available in Q-Temp Automotive
