Low Noise,Precision,High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-4XTS14G Replace OPA4170.
SGM8270-4XTS14G
SGM8270-4XTS14G.pdf
SGM8270-4XTS14G.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

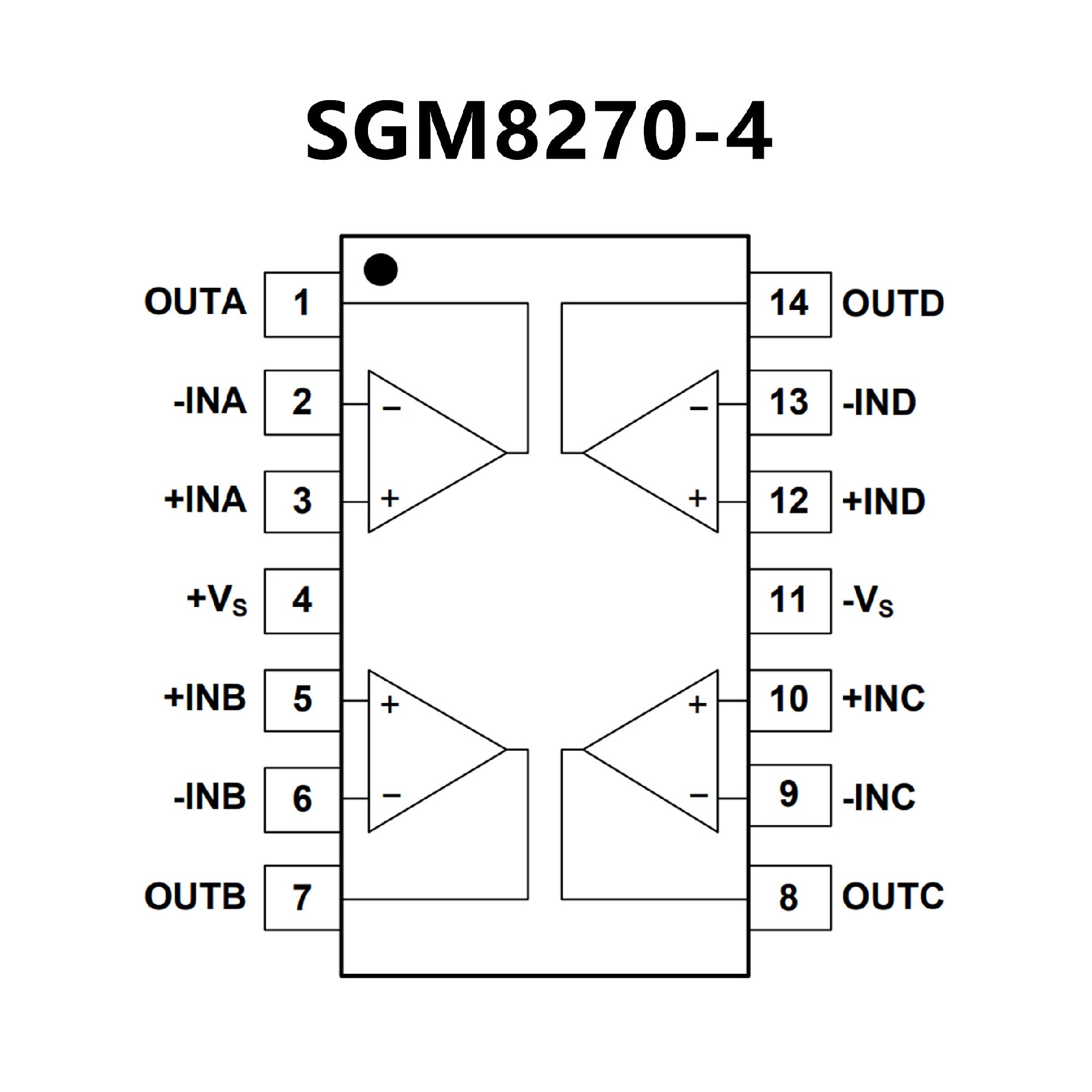

PIN CONFIGUTION
優勢替代
FEATURES
? Supply Range: +2.7V to +36V, ±1.35V to ±18V
? Low Noise: 19nV/√Hz
? RFI Filtered Inputs
? Input Range Includes the Negative Supply
? Input Range Operates to Positive Supply
? Rail-to-Rail Output
? Gain Bandwidth: 1.2MHz
? Low Quiescent Current: 110μA per Amplifier
? High Common-Mode Rejection: 120dB
? Low Bias Current: 15pA (max)
? Industry-Standard Packages:
8-Pin SOIC
8-Pin MSOP
14-Pin TSSOP
? microPackages:
Single in 5-Pin SOT553
Dual in 8-Pin VSSOP

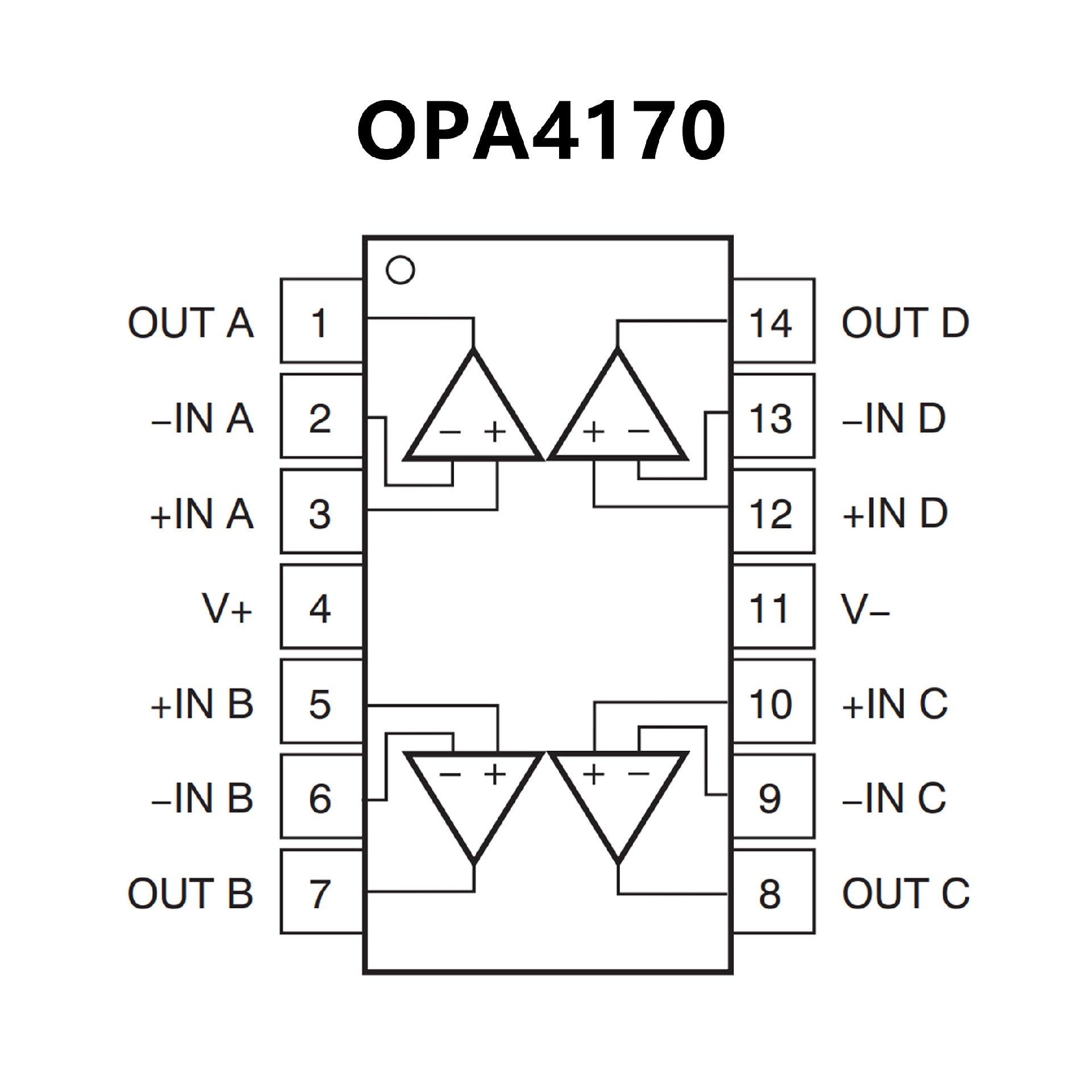

PIN CONFIGUTION
