SGM8272.pdf? Low Power Consumption: 150μA/Amplifier
? Wide Input Common Mode Voltage Range
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? Low Offset Voltage: 3mV (MAX)
? High Slew Rate: 7V/μs
? Small Packaging:
SGM8271 Available in Green SOT-23-5,
MSOP-8and SOIC-8

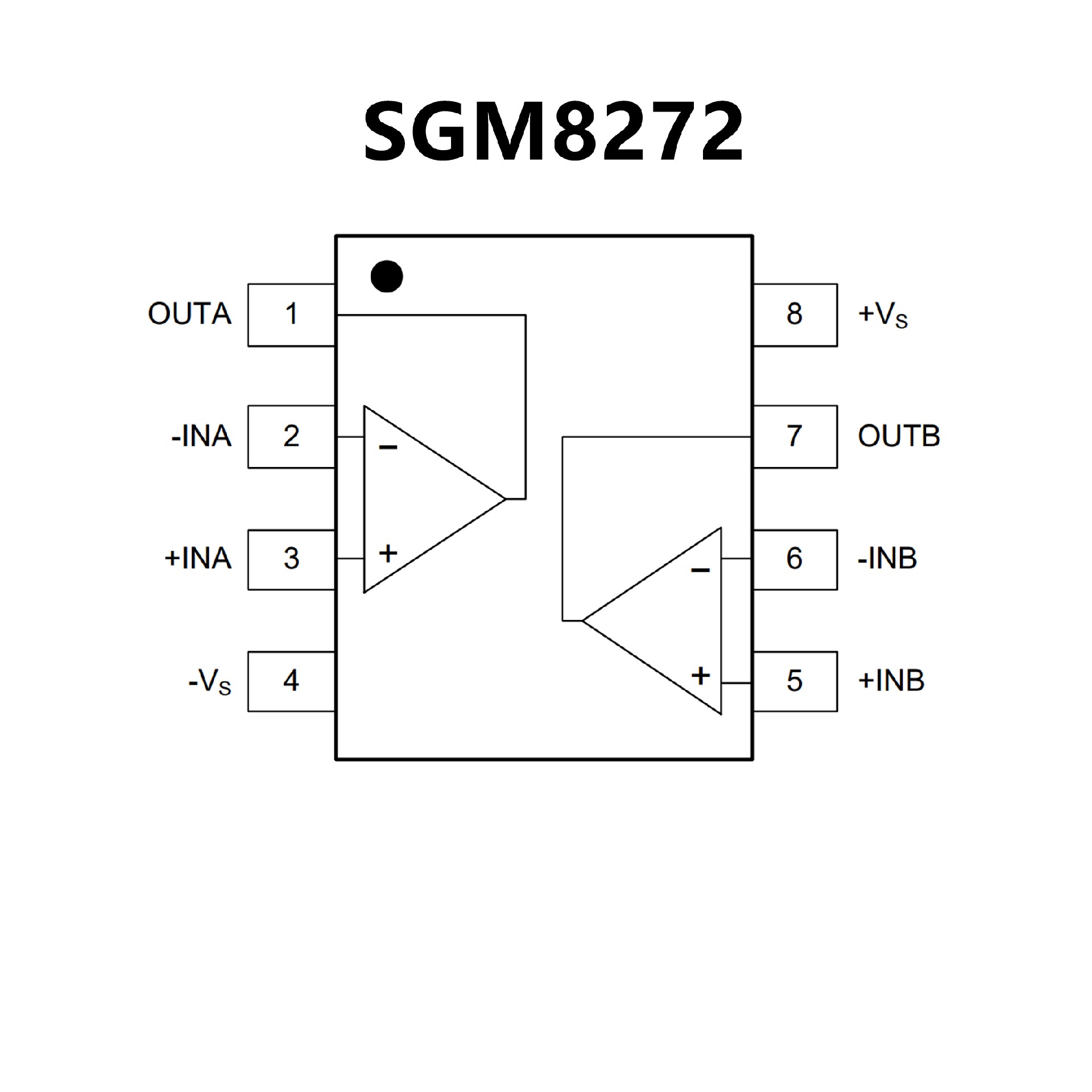

SGM8272 Available in Green MSOP-8 and SOIC-8
SGM8274 Available in Green TSSOP-14 and SOIC-14
? Performance Specified on Single?Sided
Power Supply: 1.8 V, 2.7 V, and5 V
? Small Packages:
LMV931 in a SC?70

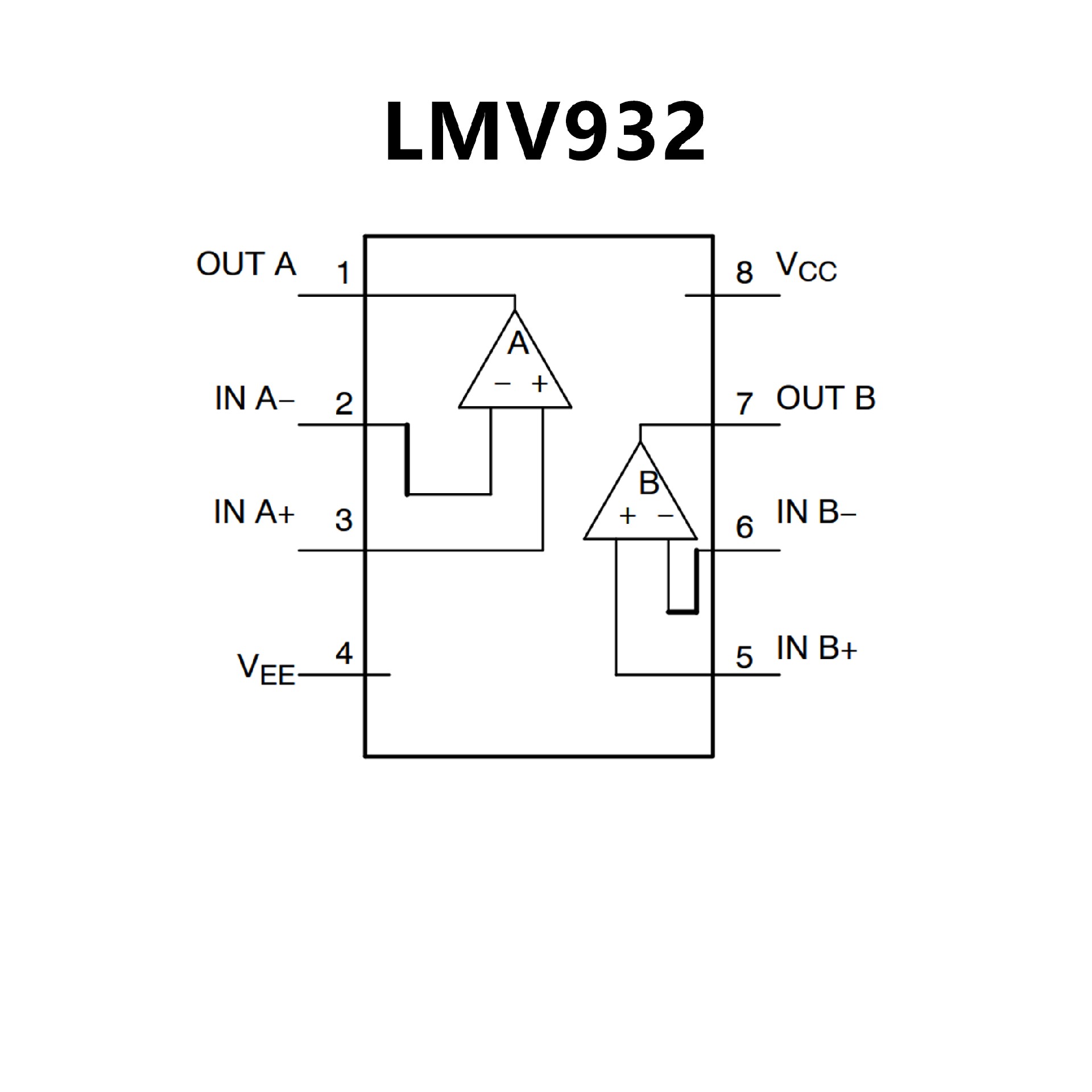

LMV932 in a Micro8 or SOIC?8
? No Output Crossover Distortion
? Extended Industrial Temperature Range:
40°C to +125°C
? Low Quiescent Current 210 μA, Max Per Channel
? No Output Phase?Reversal from Overdriven Input
? These are Pb?Free Devices
