SGM8273-1.pdf? Wide Input Common Mode
and DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:

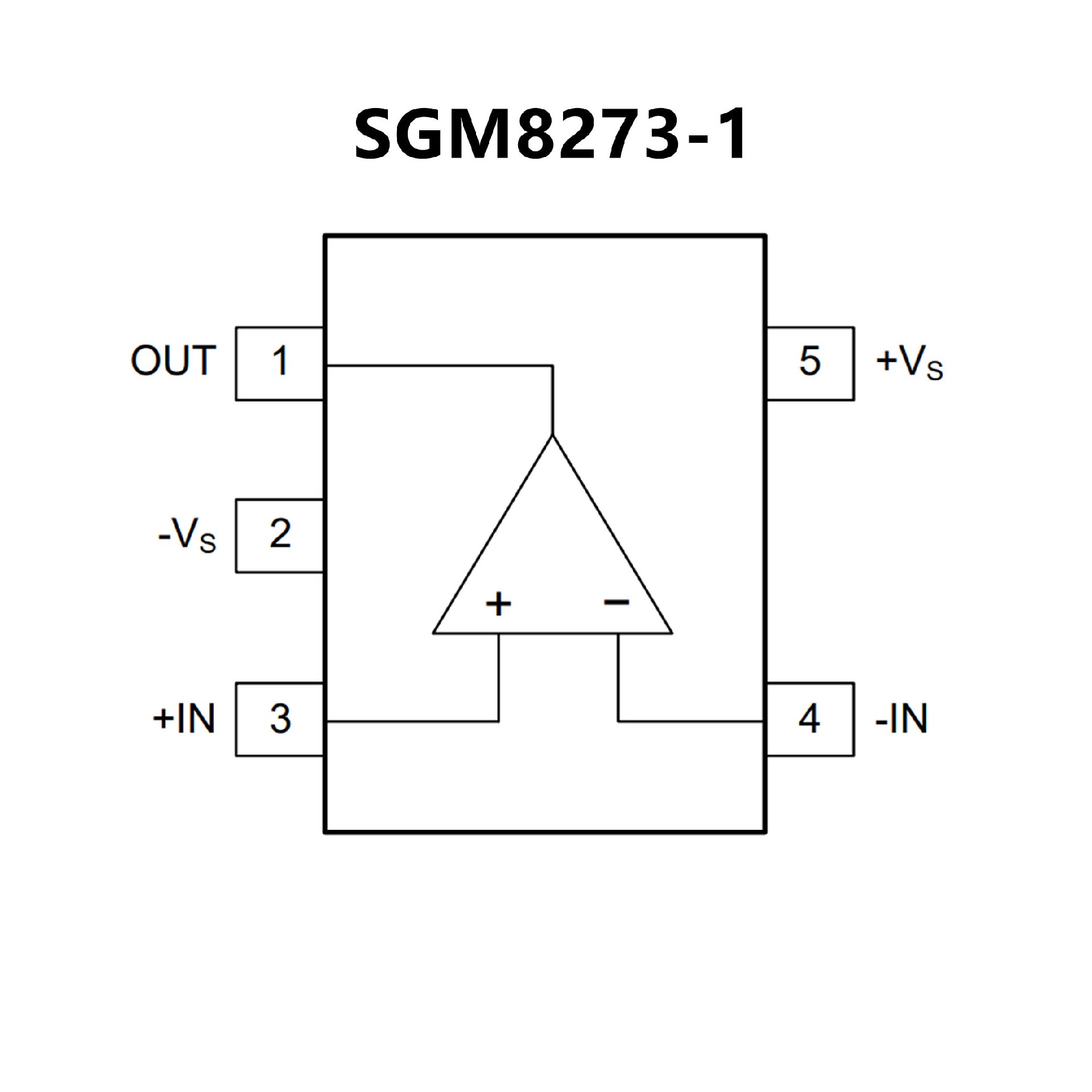

SGM8273-1 Available in Green SOT-23-5,
SOIC-8and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
? At VS = 5 V (Typical Unless Otherwise Noted)
? Tiny, Space-Saving, 5-Pin SOT-23 Package
? Greater than Rail-to-Rail Input CMVR: ?0.25 V to 5.2 V
? Rail-to-Rail Output Swing: 007 V to 4.93 V
? Wide Gain-Bandwidth: 4 MHz
? Low Supply Current: 0.6 mA
? Wide Supply Range: 1.8 V to 32 V
? High PSRR: 104 dB
? High CMRR: 93 dB
? Excellent Gain: 97 dB
