SGM8273-1AXN5G.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:

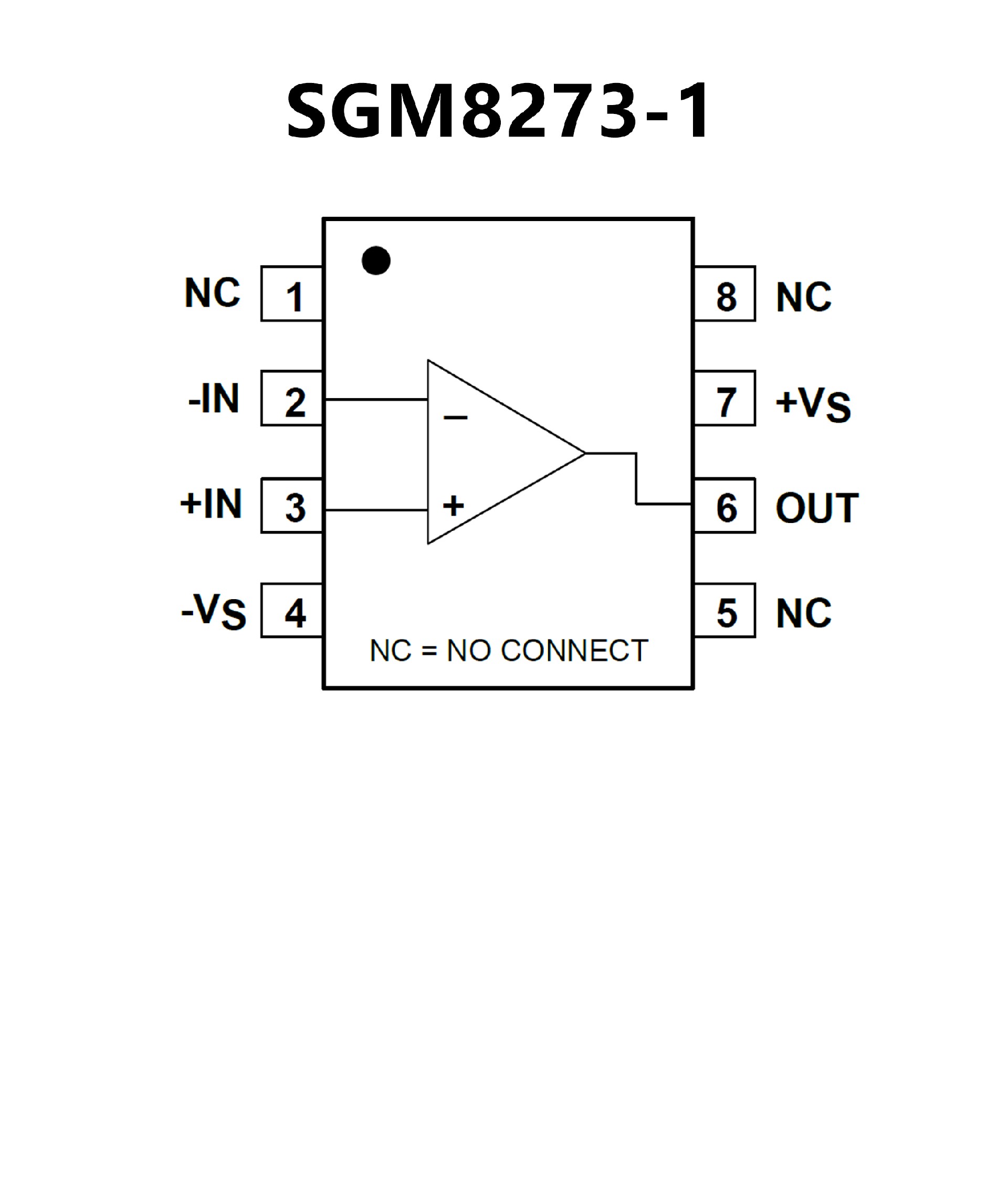

SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
? High performance alternative to TLC27x series
? Rail to rail output
? Wide bandwidth: 2MHz
? High slew rate: 2.0 V/μs
? Wide range of supply voltages: 2.7V to 16V
? Low supply current: 550μA per channel
? Low input noise voltage: 35nV/√Hz
? Low input bias current: 1pA
? Specified temperature ranges:
0°C to +70°C: commercial grade
-40°C to +125°C: industrial grade
? Totally Lead-Free & Fully RoHS
Compliant (Notes 1 & 2)
? Halogen and Antimony Free.
“Green” Device (Note 3)
