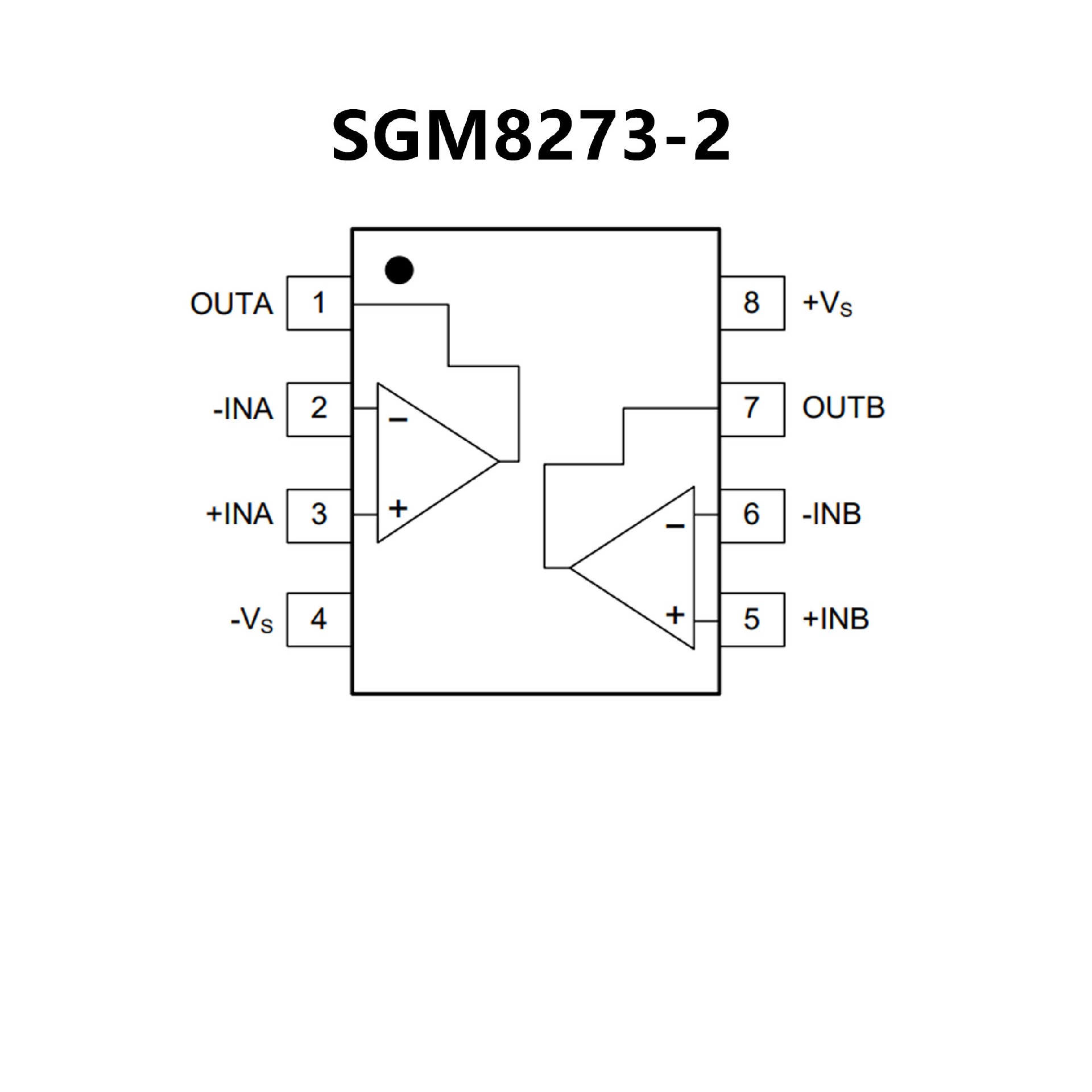

SGM8273-2.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-1 Available in Green
SOT-23-5, SOIC-8and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
? Single-Supply Operation
Input Voltage Range Extends to Ground
Output Swings to Ground While SinkingCurrent
? Phase Reversal Protection

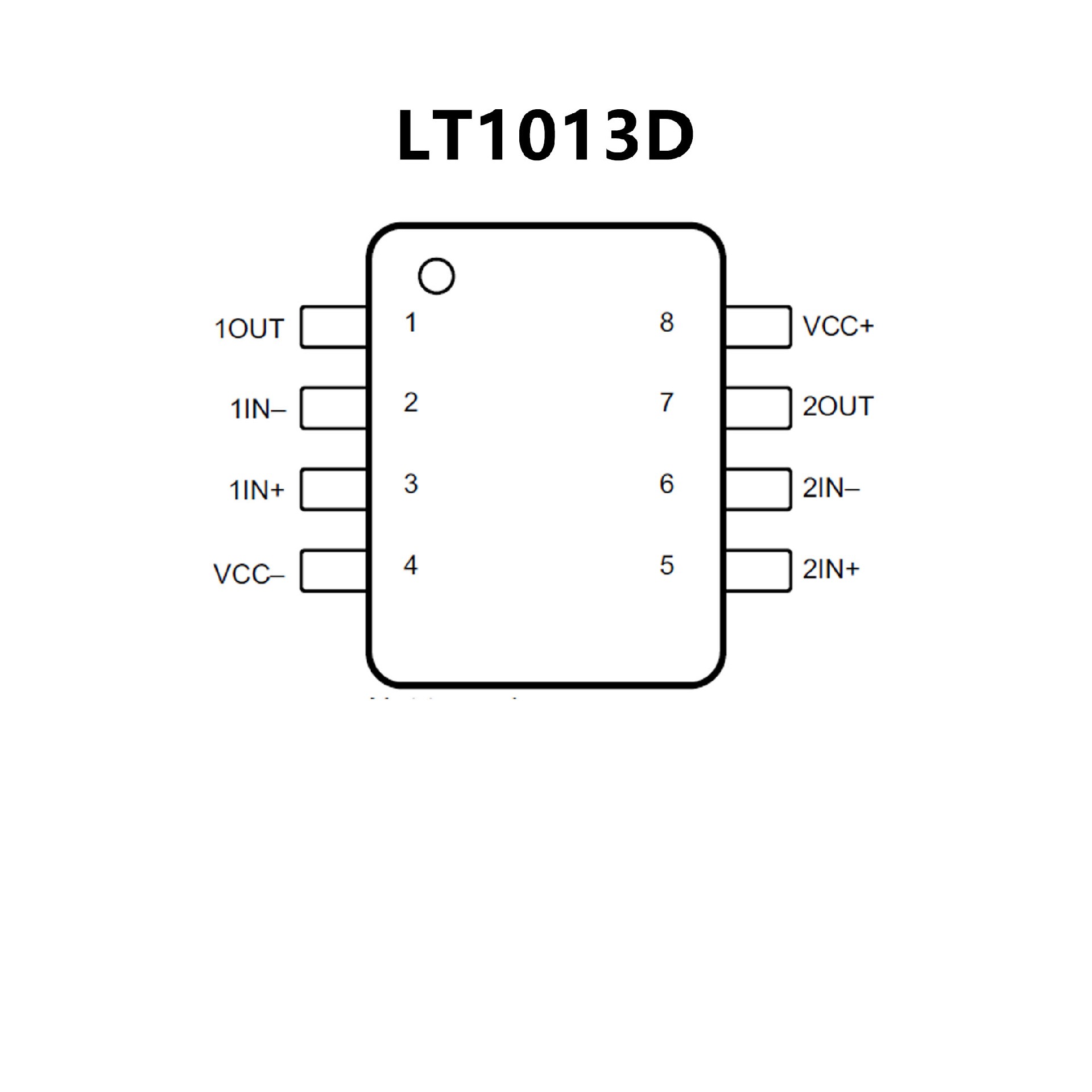

? Input Offset Voltage
150 μV Maximum at 25°C for LT1013AM
? Offset-Voltage Temperature Coefficient
2 μV/°C Maximum for LT1013AM
? Input Offset Current
0.8 nA Maximum at 25°C for LT1013AM
? High Gain
1.5 V/μV Minimum (RL = 2 kΩ) for LT1013AM
0.8 V/μV Minimum (RL = 600 kΩ) forLT1013AM
? Low Supply Current– 0.5 mA Maximum
at TA = 25°C for LT1013AM
? Low Peak-to-Peak Noise Voltage
0.55 μV Typical
? Low Current Noise
0.07 pA/√Hz Typical
