Low Noise, High Precision, High Voltage,Rail-to-Rail I/O Operational Amplifiers, SGM8273-4 P2P TL084CPWRE4.
SGM8273-4
SGM8273-4.pdf
SGM8273-4.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package

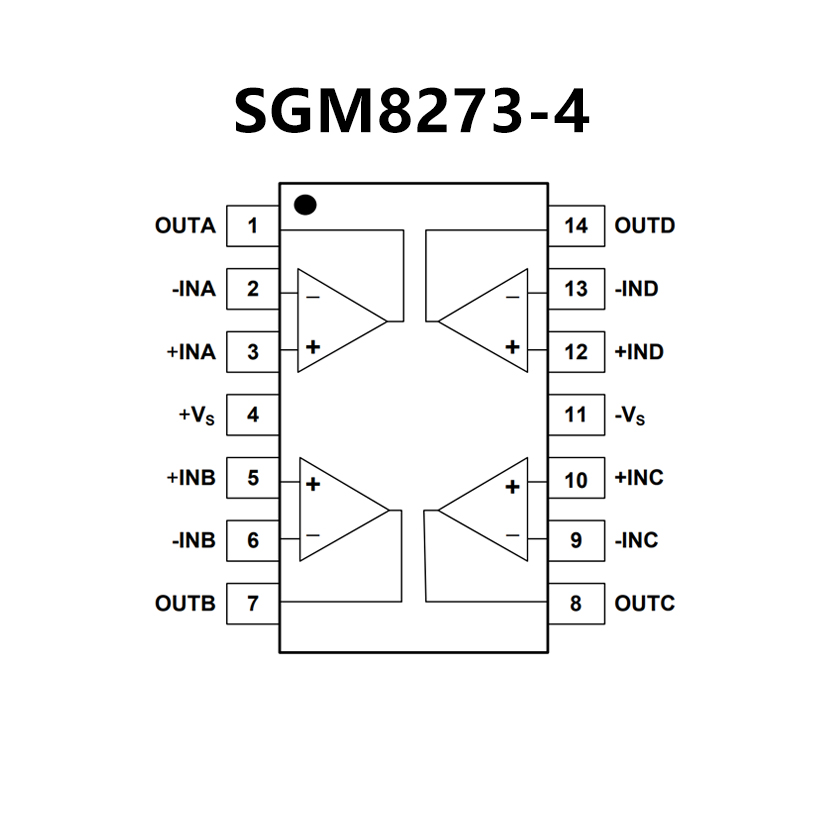

PIN CONFIGUTION
優勢替代
FEATURES
? Wide common-mode (up to VCC+) and
differential voltage range
? Low input bias and offset current
? Output short-circuit protection
? High input impedance JFET input stage
? Internal frequency compensation
? Latch up free operation
? High slew rate: 16 V/μs (typical)

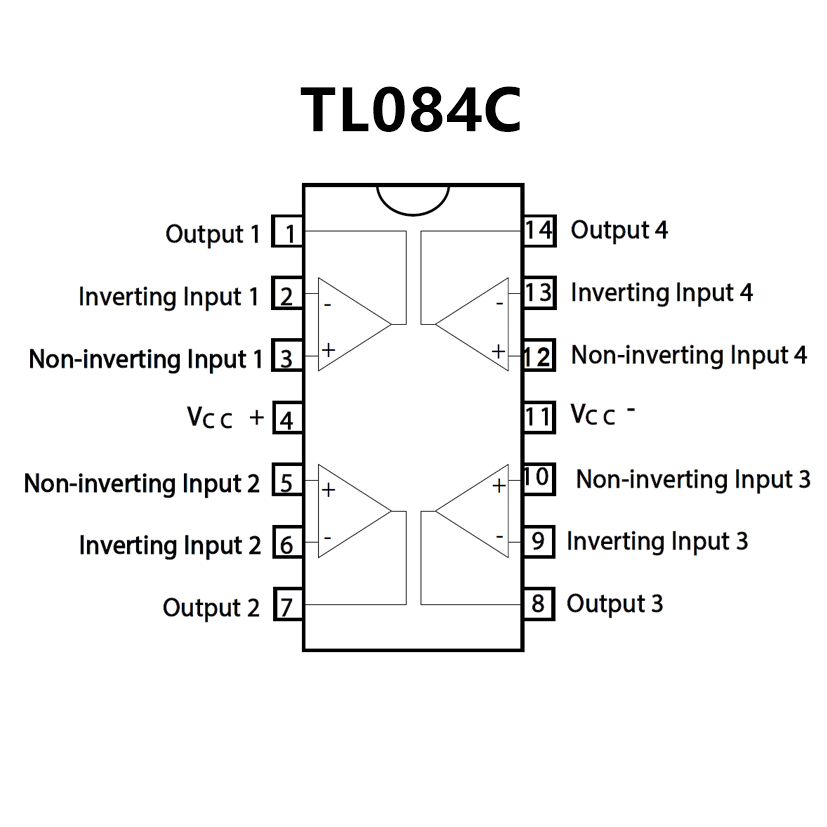

PIN CONFIGUTION
